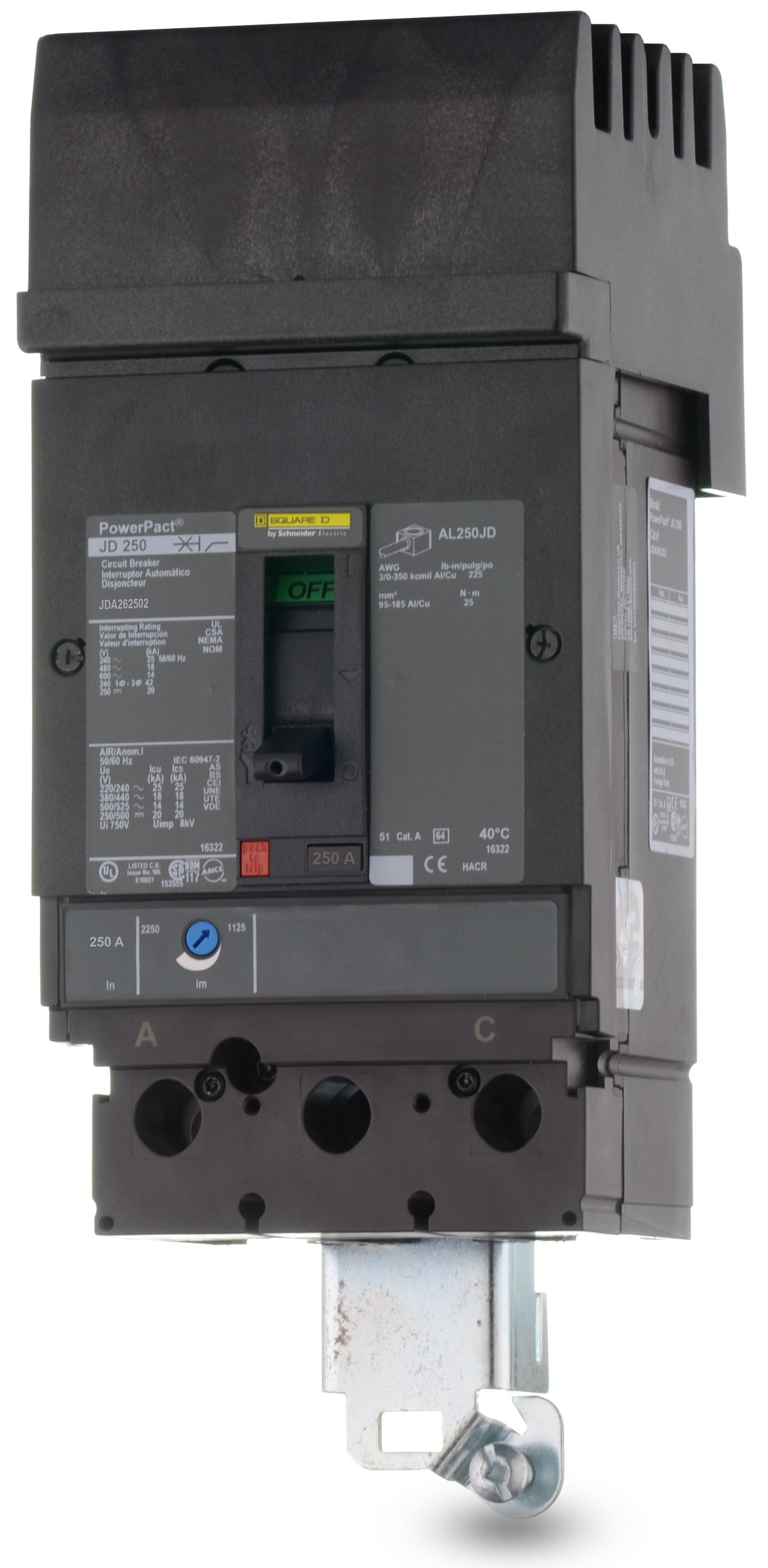

Square D JDA262502 Molded Case Circuit Breaker
- 250A
- 2 Pole
- I-Line
Square D
JDA262502
Molded Case Circuit Breaker
Brand
Square D
SKU
JDA262502
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JDA262502 - 250A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
225A 2 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
250A 2 Pole Molded Case Circuit Breaker
Description
Part of the PowerPacT J-Frame series, this 250A two-pole breaker provides robust long-time and instantaneous (LI) protection for commercial and industrial applications. It mounts seamlessly into Square D I-Line panelboards and switchboards using a specialized plug-on connection. Rated for 25kA at 240VAC, the unit features current-limiting capabilities, an adjustable magnetic trip, and the signature Visi-Trip indicator for quick fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | JDA262502 |
| Series | JDA |
| Amperage | 250A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Shunt Trip |
|---|---|
| Accessories | Phase Connection AC |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free |
Product FAQs
6 answersWhich panelboards are compatible with the JDA262502 breaker?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It utilizes a specialized I-Line plug-on connection and will not fit standard QO load centers or NQ and NF series panels.
What does the "D" signify in the JDA262502 catalog number?
In the Square D PowerPacT J-Frame series, the "D" indicates the interrupting rating tier. It signifies a standard D-interrupting level, which provides 18kA at 480VAC and 25kA at 240VAC, helping you match the breaker to your system's available fault current.
Can I adjust the trip settings on the JDA262502?
This breaker features a thermal-magnetic trip unit with a fixed thermal element for standard overload protection and an adjustable magnetic element. The adjustable magnetic trip allows installers to fine-tune the instantaneous short-circuit response based on the specific load.
Can this 2-pole breaker be installed in a 3-phase I-Line panel?
Yes, 2-pole I-Line breakers can be installed in 3-phase panelboards to feed single-phase loads. The breaker will connect to two of the three available busbars depending on where it is positioned on the I-Line bus stack.
Is the JDA262502 a direct replacement for older Square D breakers?
Yes, as part of the PowerPacT J-Frame family, it can replace legacy Square D J-frame breakers that utilize the same I-Line plug-in mounting. Always verify that your panel has sufficient mounting space and meets current interrupting requirements before retrofitting.
Are there specific wiring requirements for using this breaker in a DC system?
While the JDA262502 is rated for up to 250VDC, DC installations require specific pole wiring configurations to safely interrupt direct current arcs. Always consult the Schneider Electric instruction bulletin for the correct series wiring of poles in DC applications.
