Square D JDA262255 Molded Case Circuit Breaker
- 225A
- 2 Pole
- I-Line
Square D
JDA262255
Molded Case Circuit Breaker
Brand
Square D
SKU
JDA262255
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

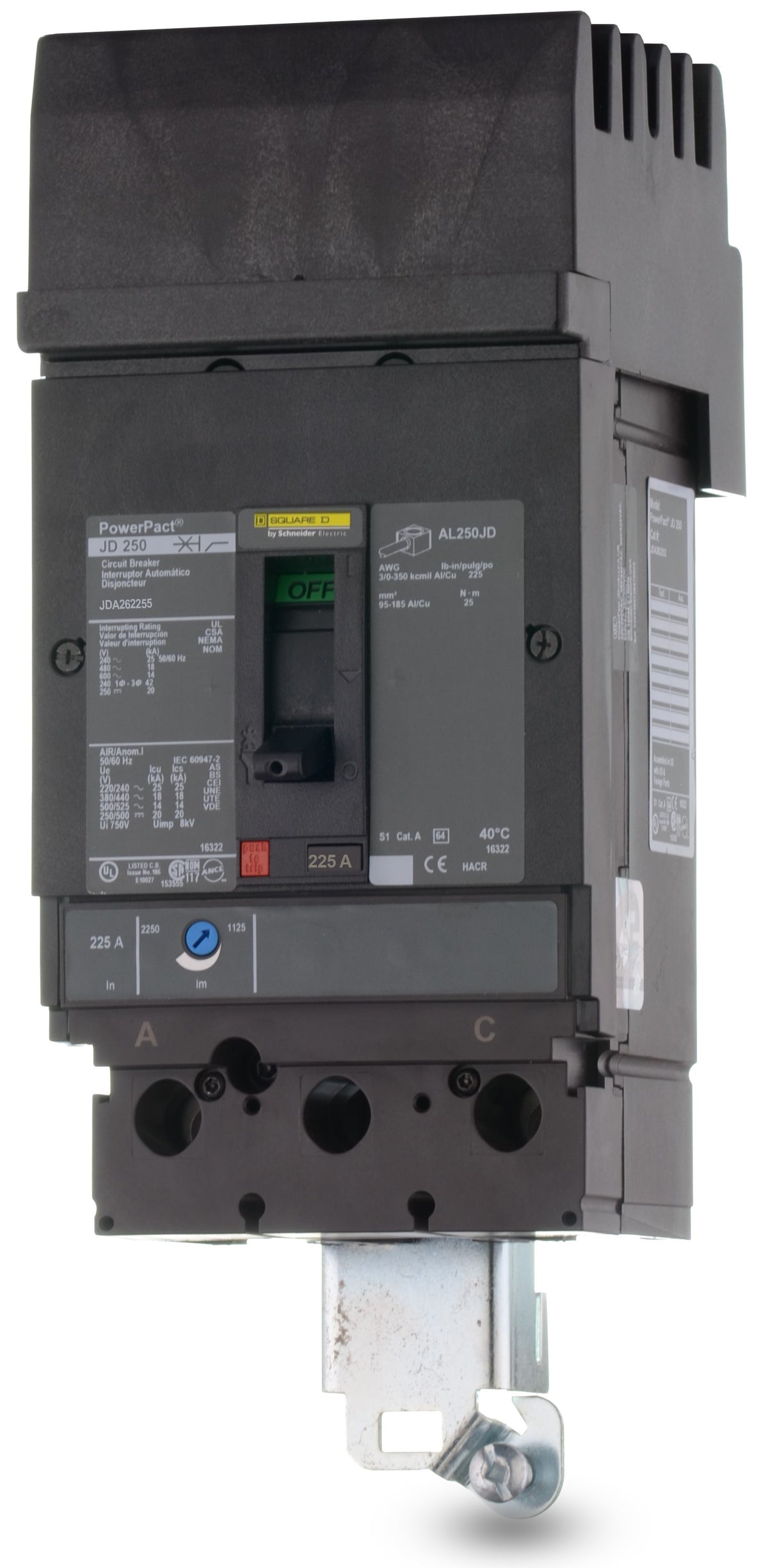

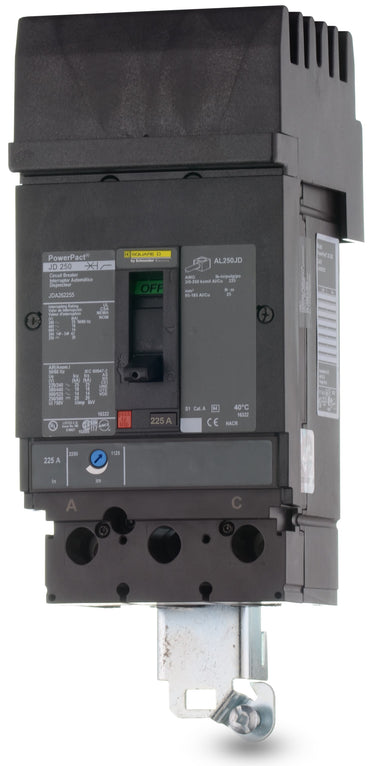

Square D JDA262255 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
250A 2 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
Built for industrial applications, the Square D JDA262255 is a 2-pole, 225A molded case circuit breaker from the PowerPacT J-Frame series. It utilizes thermal-magnetic trip technology to protect commercial electrical systems. Designed for seamless integration, it installs into Square D I-Line panelboards and switchboards. This model also acts as a substitute for discontinued KA26225 breakers. Featuring a CA phase connection, it delivers an interrupting capacity of 14kAIC at 600VAC.Specifications
| Brand | Square D |
|---|---|
| Series | JDA |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, Phase Barriers |
|---|---|
| Accessories | Phase Connection CA |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, Mercury Free, PVC Free, CA Phase Connection |
Product FAQs
7 answersWhat panelboards are compatible with the JDA262255 breaker?
This breaker installs directly into Square D I-Line panelboards and switchboards. It uses a plug-in mounting style that connects directly to the panel busbar.
What does the 5 suffix in the JDA262255 catalog number mean?
The 5 at the end of the part number indicates a CA phase connection. Because I-Line panels use a stacked busbar design, 2-pole breakers must be ordered with the correct phase arrangement to align properly.
How does the I-Line mounting system work on the JDA262255?
The line side of the breaker features plug-on jaws that grip the panel busbar. This blow-on connection design uses magnetic forces during a short circuit to draw the jaws together, gripping the busbar more firmly.
What does the D indicate in the JDA262255 catalog number?
The D indicates the interrupting capacity level within the PowerPacT J-Frame series. This specific rating level provides up to 25kA at 240VAC, 18kA at 480VAC, and 14kA at 600VAC.
How is the trip unit configured on the JDA262255?
It features a thermal magnetic trip unit with fixed thermal and adjustable magnetic settings, providing standard long-time and instantaneous (LI) fault protection.
What wire sizes are accepted by the load lugs on the JDA262255?
The load-side terminals accept aluminum or copper conductors ranging from 3/0 AWG to 350 kcmil.
Is the JDA262255 part of the PowerPacT series?
Yes, it is a PowerPacT J-Frame molded case circuit breaker manufactured by Schneider Electric under the Square D brand.
