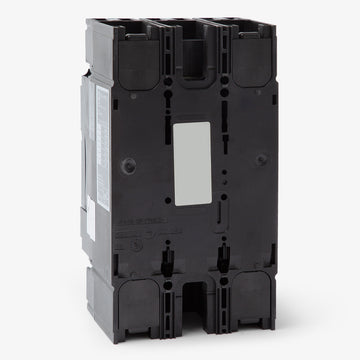

Square D JDL36175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Square D
JDL36175
Molded Case Circuit Breaker
Brand
Square D
SKU
JDL36175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JDL36175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JDL36175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDL36175 |
| Series | JDL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lug Kits, Terminal Shields, Phase Barrier |
|---|---|
| Accessories | Line and Load Lugs Included (AL175JD) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, CCC |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure, Mercury Free, PVC Free, RoHS Compliant, 80% Rated |
Quantity
Square D JDL36175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDL36175-R |
| Series | JDL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lug Kits, Terminal Shields, Phase Barrier |
|---|---|
| Accessories | Line and Load Lugs Included (AL175JD) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, CCC |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure, Mercury Free, PVC Free, RoHS Compliant, 80% Rated |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description

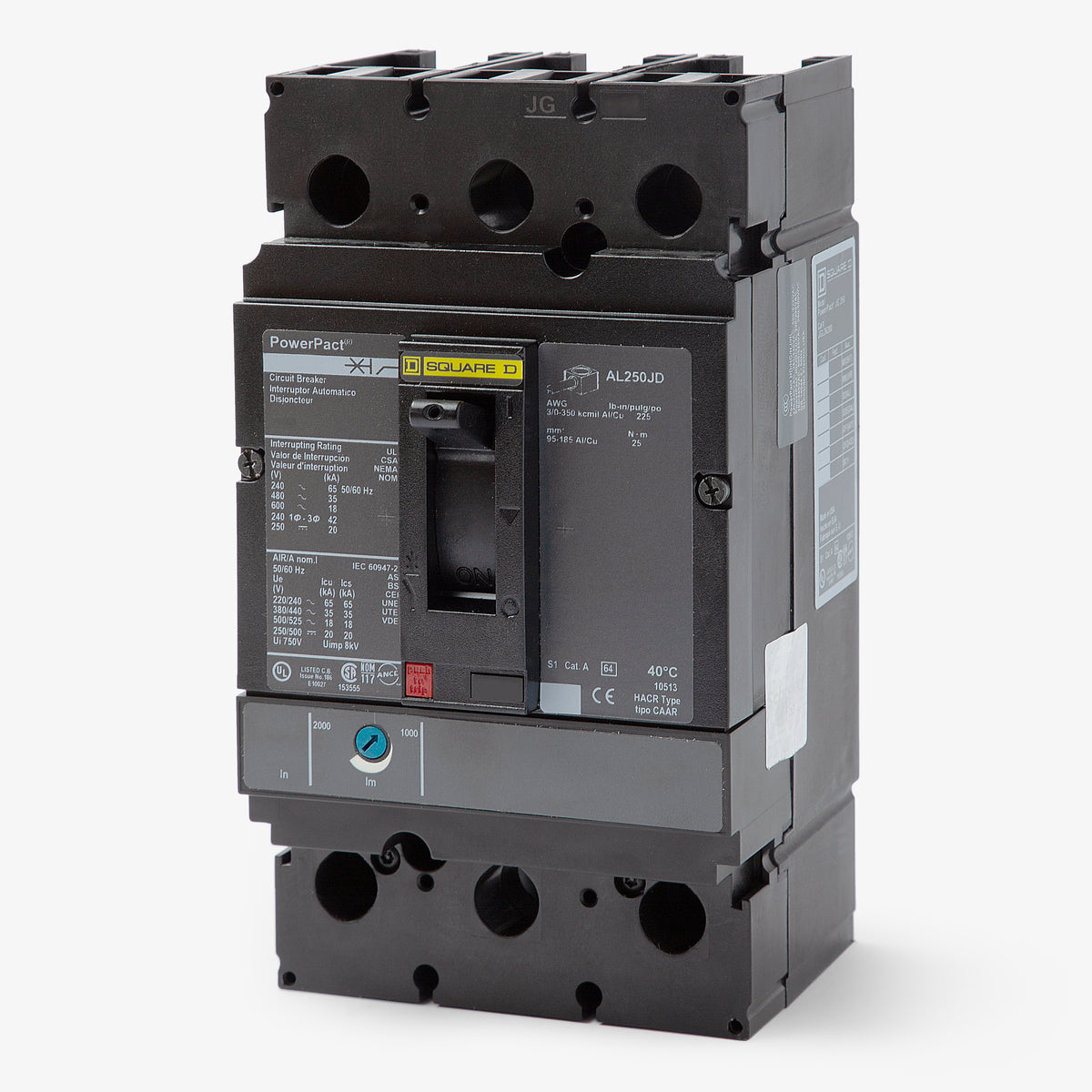

Built for industrial environments, the Square D JDL36175 is a 3-pole, 175A PowerPacT J-Frame MCCB. It provides long-time and instantaneous (LI) protection with an adjustable magnetic trip. The unit mount configuration installs into Square D industrial enclosures and motor control centers. It serves as a substitute for JGL36175 and JJL36175 breakers. Delivering 14 kAIC at 600VAC, this current-limiting breaker ensures robust defense. It features a Visi-Trip indicator and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | JDL36175 |
| Series | JDL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lug Kits, Terminal Shields, Phase Barrier |
|---|---|
| Accessories | Line and Load Lugs Included (AL175JD) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, CCC |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure, Mercury Free, PVC Free, RoHS Compliant, 80% Rated |
Product FAQs
7 answersWhat is the recommended tightening torque and tool for the lugs on the JDL36175?

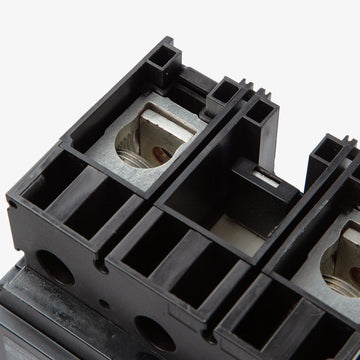

The standard AL175JD factory lugs on this breaker require a 5/16-inch hex bit. The recommended tightening torque is 225 lb-in for the accepted 4 AWG to 4/0 AWG aluminum or copper wire range.
What is the adjustment range for the instantaneous magnetic trip on this 175A breaker?

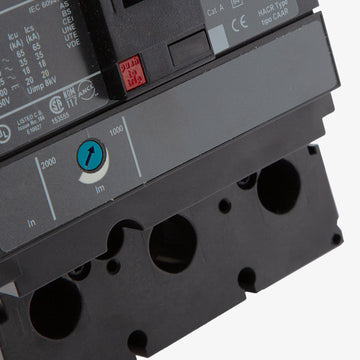

The magnetic trip dial on the JDL36175 can be adjusted between a low setting of 875A and a high setting of 1750A. The thermal overload setting is fixed at 175A.
How does the JDL36175 differ from the JGL36175 or JJL36175?
The third letter indicates the interrupt rating. The JDL36175 features a standard D rating (18kA at 480VAC). The JGL36175 provides a higher G rating (35kA at 480VAC), and the JJL36175 provides a J rating (65kA at 480VAC). They share the same physical dimensions and lug configurations.
Can the JDL36175 be installed in a Square D I-Line panelboard?
No. The JDL36175 is a unit-mount breaker configured with lugs on both the line and load sides. For an I-Line panelboard, you need an I-Line plug-on variant such as the JDA36175.
Is the JDL36175 rated for 100 percent continuous load operation?
No. This breaker carries a standard 80 percent continuous current rating. Continuous loads should not exceed 140 amps, which is 80 percent of the 175A nominal rating.
Is the JDL36175 suitable for reverse-fed applications?
Yes. Standard thermal-magnetic PowerPacT J-frame breakers with unit-mount lug configurations are suitable for reverse feeding. There are no internal directional restrictions unless specific directional accessories are installed.
Can field-installable accessories be added to the JDL36175?
Yes. The PowerPacT J-frame accepts a variety of field-installable internal accessories behind the front cover, including auxiliary switches, bell alarms, shunt trips, and undervoltage releases.
