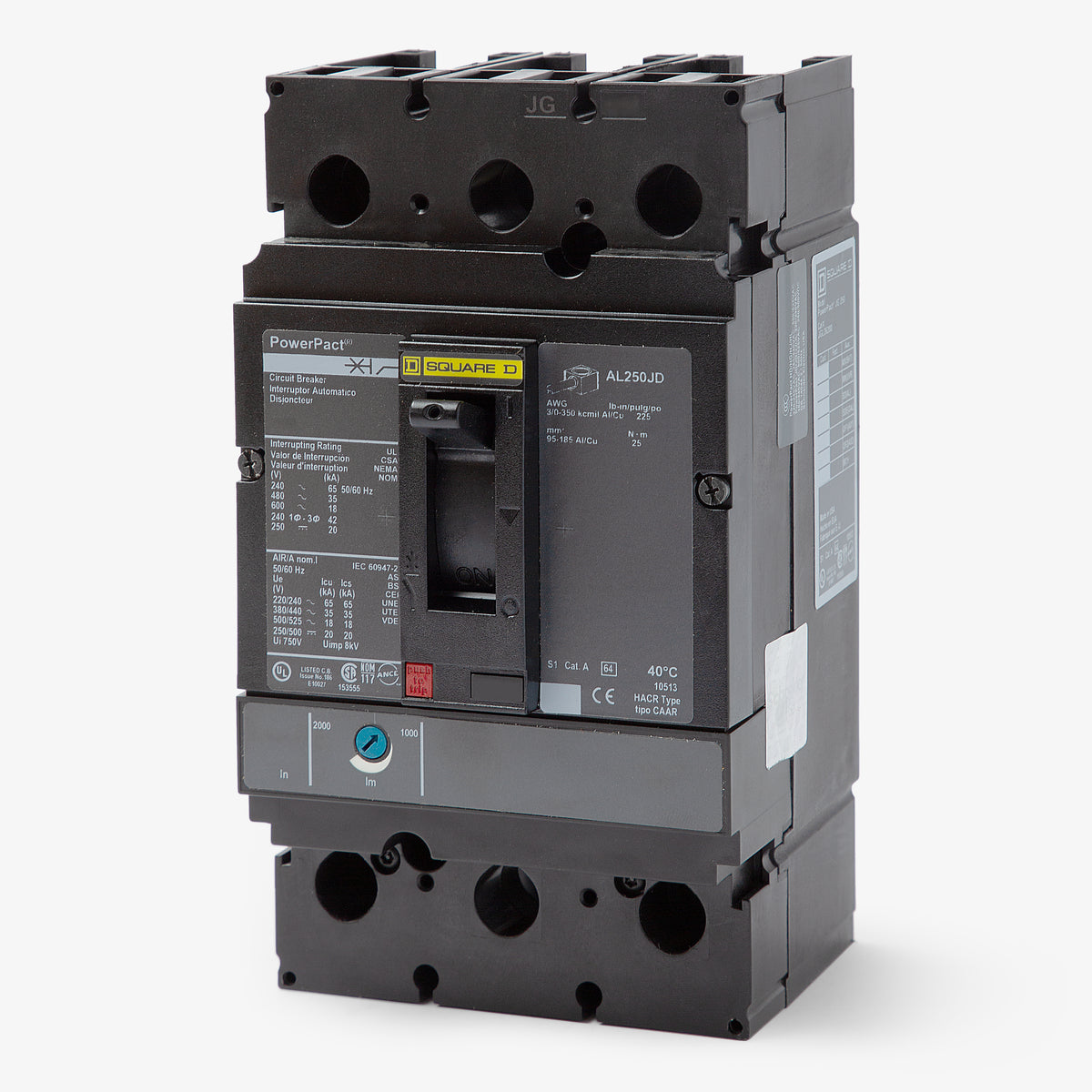

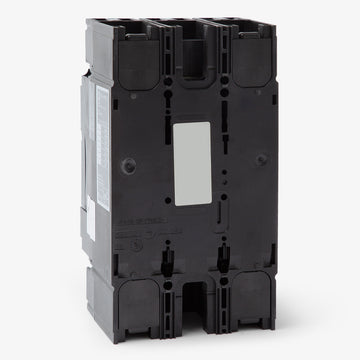

Square D JDL36250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Unit Mount
Square D
JDL36250
Molded Case Circuit Breaker
Brand
Square D
SKU
JDL36250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JDL36250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JDL36250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDL36250 |
| Series | JDL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lug Kits, Terminal Shields, Phase Barrier |
|---|---|
| Accessories | Line and Load Lugs Included (AL250JD) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure, Mercury Free, PVC Free, RoHS Compliant, 80% Rated |
Quantity
Square D JDL36250 - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDL36250-R |
| Series | JDL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lug Kits, Terminal Shields, Phase Barrier |
|---|---|
| Accessories | Line and Load Lugs Included (AL250JD) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure, Mercury Free, PVC Free, RoHS Compliant, 80% Rated |
Similar Items
225A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty environments, the Square D JDL36250 is a 3-pole, 250A molded case circuit breaker from the PowerPacT J-Frame series. It provides fixed thermal and adjustable magnetic protection to safeguard electrical systems. The breaker mounts into Square D switchboards and motor control centers via a unit mount configuration, including line and load lugs for wiring. Featuring a 25kAIC rating at 240VAC, this current-limiting MCCB utilizes a Visi-Trip indicator to streamline maintenance.Specifications
| Brand | Square D |
|---|---|
| Part Number | JDL36250 |
| Series | JDL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lug Kits, Terminal Shields, Phase Barrier |
|---|---|
| Accessories | Line and Load Lugs Included (AL250JD) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure, Mercury Free, PVC Free, RoHS Compliant, 80% Rated |
Product FAQs
10 answersWhat is the recommended tightening torque for the lugs on the JDL36250?
The standard AL250JD lugs accept 3/0 AWG to 350 kcmil aluminum or copper wire and should be torqued to 225 lb-in (25 N.m).

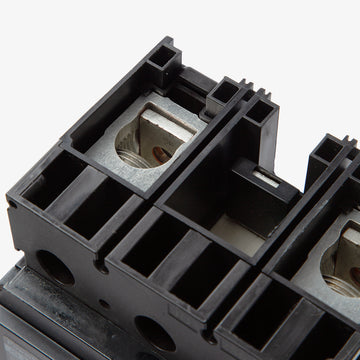

Does the JDL36250 come with lugs installed on both sides?
Yes, as a feed-thru unit mount circuit breaker, the JDL36250 includes standard AL250JD mechanical lugs factory-installed on both the line and load sides.
Can the JDL36250 circuit breaker be reverse fed?
Yes, standard thermal-magnetic PowerPacT J-frame circuit breakers like the JDL36250 are suitable for reverse-fed applications.
What does the 'D' in the JDL36250 part number represent compared to a JGL or JJL?
The middle letter indicates the breaking capacity code. The 'D' in JDL designates a standard interrupting rating. A JGL offers a high rating (35kA at 480VAC), and a JJL provides an extra-high rating (65kA at 480VAC).
Can I install the JDL36250 in a Square D I-Line panelboard?
No, the JDL36250 is a unit mount circuit breaker designed with feed-thru lug connections. For an I-Line plug-on connection with standard interrupting ratings, you will need catalog number JDA36250.

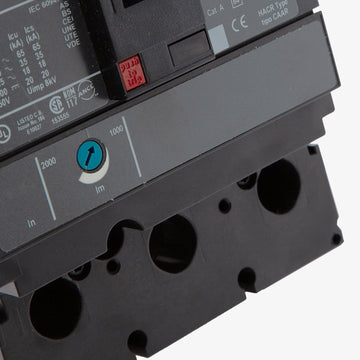

Does the JDL36250 feature an adjustable trip unit?
The JDL36250 is equipped with a thermal-magnetic trip unit that has a fixed thermal (overload) setting of 250A and an adjustable magnetic (instantaneous short-circuit) setting. The instantaneous pickup can be adjusted using a dial on the front of the breaker.
Is the JDL36250 rated for 100% continuous current?
No, the standard JDL36250 is rated for 80% continuous current. If you require a 100% rated version, you must specify the catalog number with a 'C' suffix (JDL36250C).
Which standalone enclosures are compatible with the JDL36250?
For standalone mounting, the JDL36250 is compatible with Square D J-Frame 250A enclosures. Common options include the J250S (NEMA 1 Surface Mount), J250F (NEMA 1 Flush Mount), J250R (NEMA 3R), and J250DS (NEMA 4/4X/5 Stainless Steel).
Are field-installable accessories available for the JDL36250?
Yes, the PowerPacT J-frame supports a variety of field-installable accessories. Common additions include shunt trips (such as the S29386 for 110-130VAC), undervoltage releases, and auxiliary switches, which install internally under the breaker cover.
Is the JDL36250 circuit breaker HACR rated?
Yes, the JDL36250 is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
