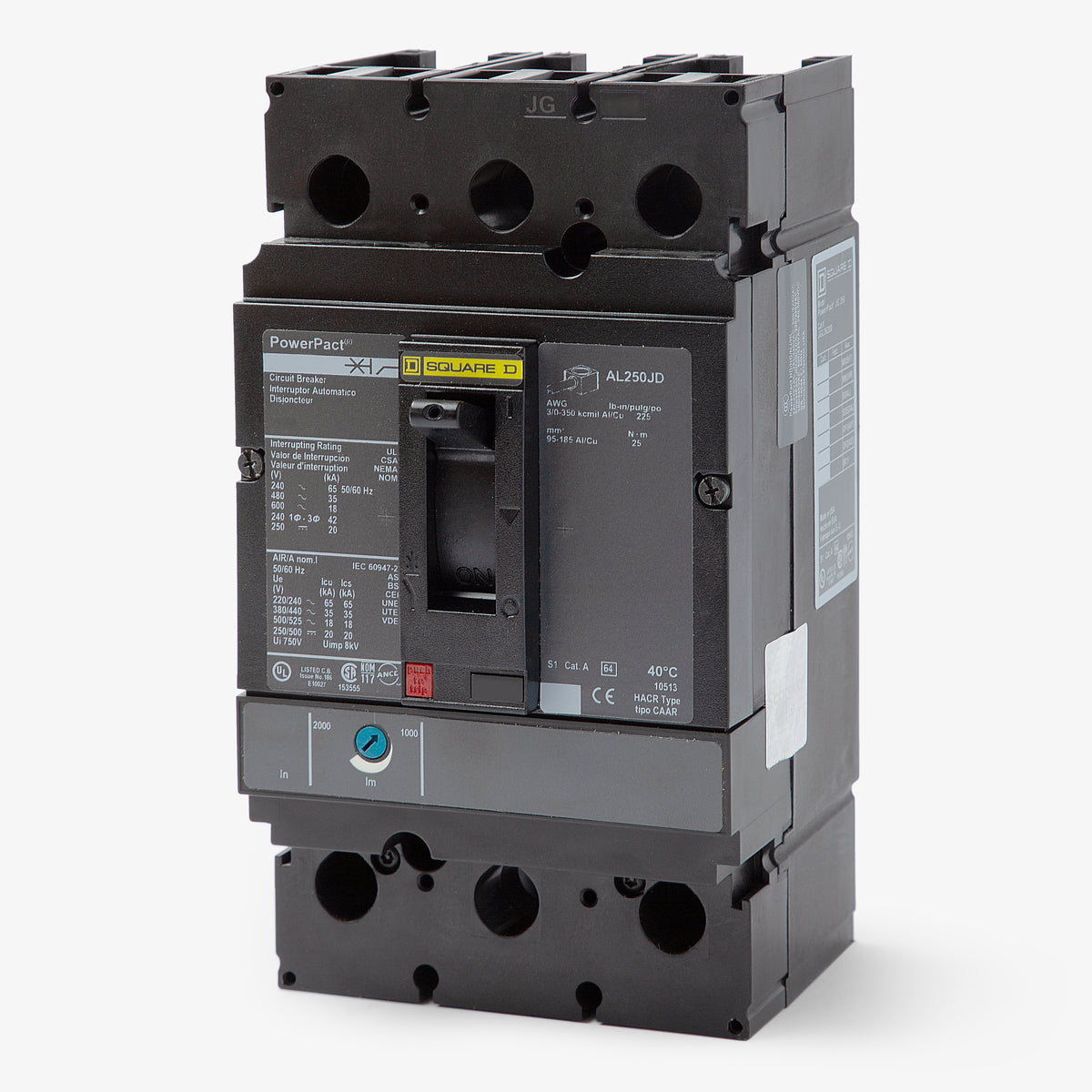

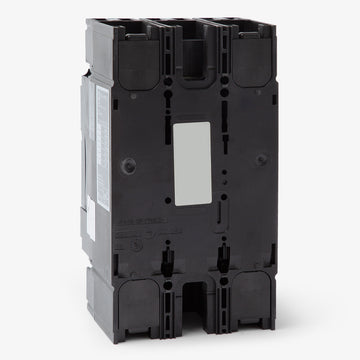

Square D JDL36200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Square D
JDL36200
Molded Case Circuit Breaker
Brand
Square D
SKU
JDL36200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JDL36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JDL36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDL36200 |
| Series | JDL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 3/0 AWG-350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (AL250JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed |
Quantity
Square D JDL36200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDL36200-R |
| Series | JDL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 3/0 AWG-350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (AL250JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty commercial use, this 200A PowerPacT J-Frame breaker provides reliable long-time and instantaneous protection. The thermal-magnetic trip unit features an adjustable magnetic setting. Designed for unit-mounting, it installs into Square D control panels and switchboards. Included AL250JD lugs accept 3/0 AWG to 350 kcmil wire. Providing 18 kAIC at 480VAC, it ensures robust fault clearing while the Visi-Trip indicator speeds up maintenance.Specifications
| Brand | Square D |
|---|---|
| Part Number | JDL36200 |
| Series | JDL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 3/0 AWG-350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (AL250JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed |
Product FAQs
6 answersWhat is the magnetic trip adjustment range for the JDL36200 circuit breaker?

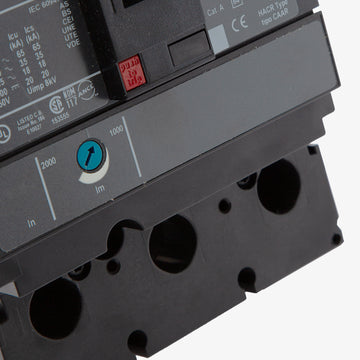

The instantaneous magnetic trip on this 200A breaker is adjustable from 1000A at the low setting up to 2000A at the high setting. The thermal overload trip remains fixed at 200A.
What is the required tightening torque for the AL250JD lugs on this breaker?

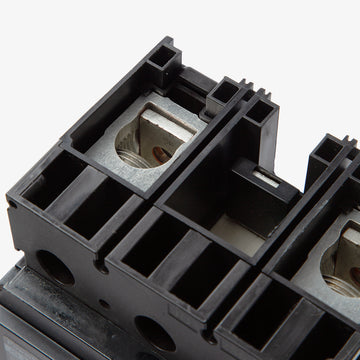

When landing 3/0 AWG to 350 kcmil aluminum or copper wire, the standard line and load lugs should be torqued to 230 lb-in (26 N-m).
Will the JDL36200 plug directly into a Square D I-Line panelboard?
No. The JDL36200 is a unit-mount breaker designed to be bolted to a backpan and wired using lugs. To fit an I-Line panelboard, you will need the I-Line version of this breaker, which is catalog number JDA36200.
Is it possible to DIN rail mount this J-frame circuit breaker?
Yes. While it comes ready for standard backpan mounting, the unit-mount JDL36200 can be installed on a DIN rail using a separate mounting bracket adapter, catalog number S29305.
Can the Square D JDL36200 be reverse fed?
Yes. This thermal-magnetic breaker does not contain electronic trip units with directional constraints, making it suitable for reverse connection applications where the supply voltage enters the load side terminals.
How can I manually test the mechanical tripping mechanism on this breaker?
You can manually exercise the breaker mechanism using the built-in push-to-trip button located on the front faceplate. Pressing this button trips the breaker, which is a recommended maintenance practice to ensure internal mechanical linkages operate freely.
