Square D JDM36150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Square D
JDM36150
Molded Case Circuit Breaker
Brand
Square D
SKU
JDM36150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

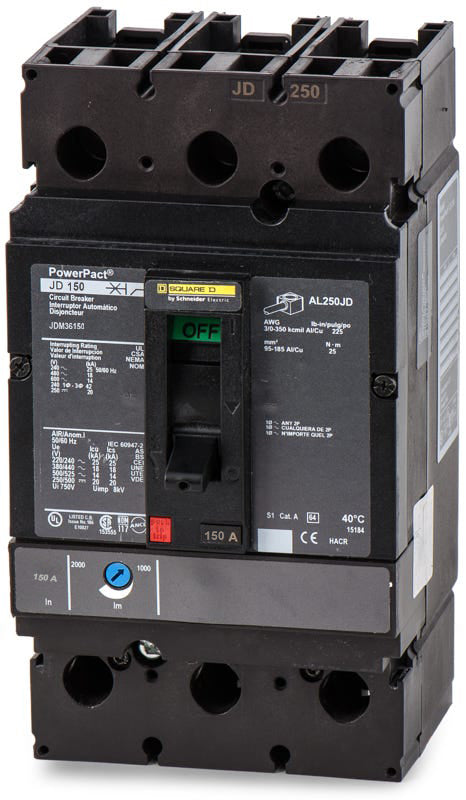

Square D JDM36150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding distribution systems, the Square D JDM36150 is a 150A, 3-pole MCCB. As part of the PowerPacT J-Frame lineup, it utilizes adjustable magnetic trip technology to deliver precise LI protection across industrial facilities. Designed for unit mount applications, this breaker integrates into control panels and standalone enclosures. It is equipped with line-side lugs and load-side terminal nuts. Safety is prioritized with an 18 kAIC rating at 480V and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | JDM36150-R |
| Series | JDM |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDM |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, Unit Mount Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Lugs (Line Side), Terminal Nuts (Load Side) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Mercury Free, PVC Free |
Product FAQs
8 answersWhat is the magnetic trip adjustment range for the JDM36150?
The JDM36150 features an adjustable magnetic trip unit with a low hold current setting of 750A and a high trip current setting of 1500A.
What type of enclosures or panelboards accept the JDM36150?
As a unit-mount, bolt-on breaker, the JDM36150 is designed for installation in standard industrial control panels, switchboards, motor control centers, and unit-mount enclosures. It is not compatible with I-Line panelboards.
Can I use the JDM36150 in an I-Line panelboard?
No, the JDM36150 is a unit-mount breaker with bolt-on lug connections. For I-Line panelboards, you must use an I-Line version such as the JDA, JGA, JJA, or JLA series breakers.
How is the JDM36150 applied in DC circuits?
The JDM36150 is rated for up to 250VDC with a 20kAIC interrupting capacity. When installing in DC applications, you must follow Schneider Electric wiring diagrams for series pole connections to ensure proper arc extinguishing.
Can I replace the standard lugs on the JDM36150?
Yes, the PowerPacT J-Frame series supports field-interchangeable terminal options, allowing you to swap the standard mechanical lugs for alternate lug kits or terminal nuts depending on your application needs.
Is the JDM36150 suitable for reverse feeding?
Yes, standard thermal-magnetic PowerPacT J-Frame breakers like the JDM36150 are suitable for reverse feeding, as they do not contain electronic trip units with directional constraints.
What does the D in the JDM36150 catalog number signify?
The D indicates the standard interrupting rating tier within the PowerPacT J-Frame family, which provides 18kAIC at 480VAC and 14kAIC at 600VAC. Higher tiers like G, J, or L offer increased short-circuit protection.
Does the JDM36150 have a manual testing feature?
Yes, it includes an integral push-to-trip button on the cover, allowing you to manually trip the breaker to verify the mechanical operation of the trip mechanism.
