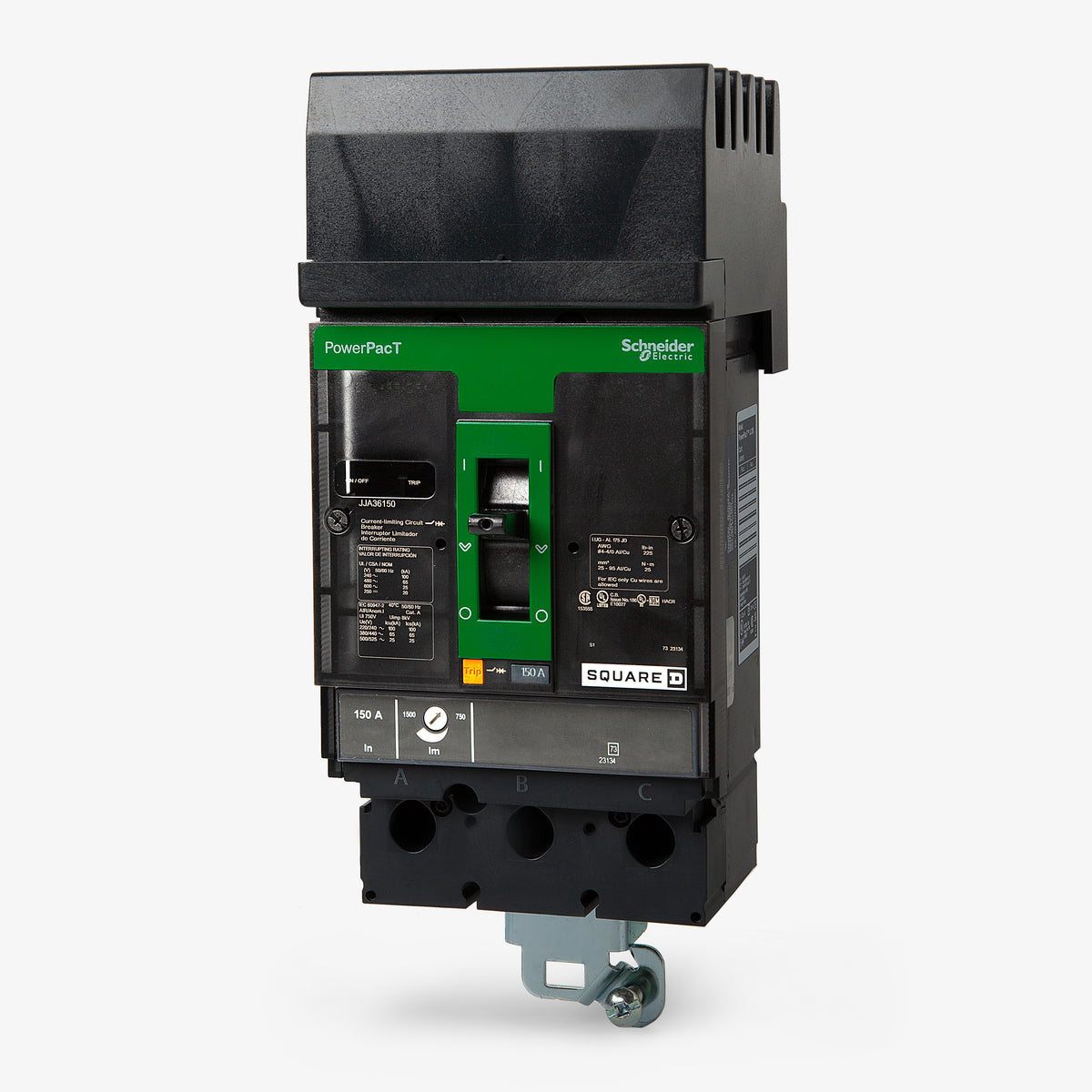

Schneider Electric JJA36150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- I-Line
Schneider Electric
JJA36150
Molded Case Circuit Breaker
Brand
Schneider Electric
SKU
JJA36150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric JJA36150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Schneider Electric JJA36150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric |
|---|---|
| Series | JJA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, I-Line Switchboards |
| Wire Gauge | 4 AWG-4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator |
Quantity
Schneider Electric JJA36150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric |
|---|---|
| Series | JJA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, I-Line Switchboards |
| Wire Gauge | 4 AWG-4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the PowerPacT J-Frame family, this 150A MCCB handles heavy-duty industrial applications. It provides thermal-magnetic protection with a 65kAIC rating at 480VAC. This unit mounts into Square D I-Line panelboards, utilizing a plug-on jaw connection. It serves as a modern replacement for legacy KC36150 breakers. Featuring an adjustable magnetic trip and current-limiting capabilities, this HACR-rated breaker includes the Visi-Trip indicator for quick fault identification.Specifications
| Brand | Schneider Electric |
|---|---|
| Series | JJA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, I-Line Switchboards |
| Wire Gauge | 4 AWG-4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator |
Product FAQs
6 answersCan I install the JJA36150 in a standard Square D NF or NQ panelboard?
No. The JJA36150 features an I-Line plug-in mounting design. It is strictly compatible with Square D I-Line panelboards and switchboards, and will not fit in NQ or NF series panels.
How are the line and load connections configured on this I-Line breaker?

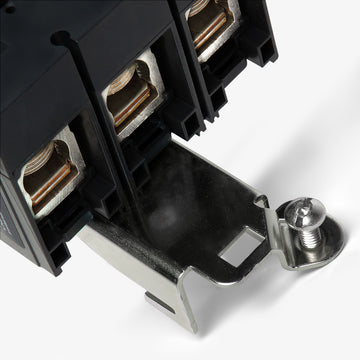

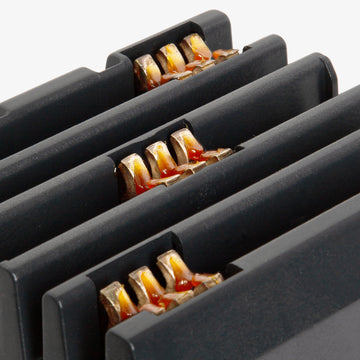

The line side utilizes I-Line plug-in jaws that engage directly onto the panelboard bus. The load side is equipped with mechanical lugs that accept 4 AWG to 4/0 AWG aluminum or copper conductors for the outgoing circuit.
What does the JJA prefix signify in the PowerPacT series?
In the Square D PowerPacT J-Frame family, the JJA prefix designates the interrupting rating tier. Specifically, it indicates a 65kA interrupting rating at 480VAC.
Are the trip unit settings adjustable on the JJA36150?
It features a thermal-magnetic trip unit with a fixed thermal element for long-time overload protection and an adjustable magnetic dial. This allows you to configure the instantaneous short-circuit pickup threshold to suit your application.
Does this circuit breaker provide ground-fault or arc-fault protection?
No. This is a standard thermal-magnetic molded case circuit breaker designed for overcurrent and short-circuit protection. It does not contain GFCI or AFCI sensing electronics.
Which legacy circuit breakers can the JJA36150 replace?
This modern PowerPacT J-Frame breaker often serves as a direct replacement or upgrade for obsolete Square D 150A I-Line breakers, including the legacy KC36150, KH36150, and KA36150 models.
