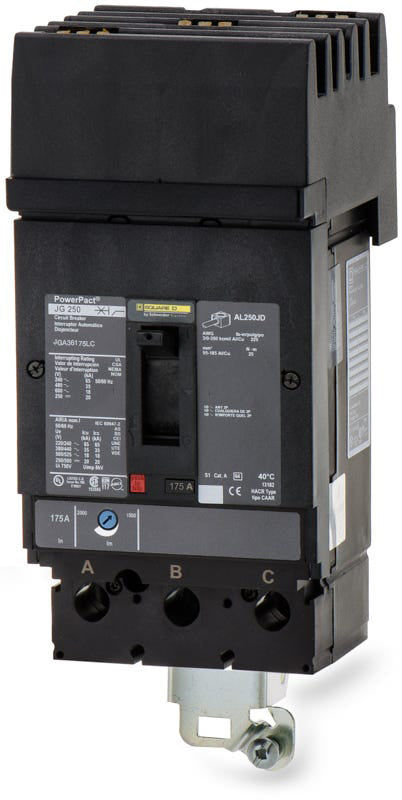

Square D JGA36175LC Molded Case Circuit Breaker
- 175A
- 3 Pole
- I-Line
Square D
JGA36175LC
Molded Case Circuit Breaker
Brand
Square D
SKU
JGA36175LC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JGA36175LC - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Engineered for robust commercial applications, the Square D JGA36175LC is a 3-pole, 175A PowerPacT J-Frame MCCB. It provides reliable thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions. This unit installs into Square D I-Line panelboards, utilizing an I-Line plug-on connection and copper lugs. It serves as a replacement for legacy KA36175 breakers, fulfilling the copper lug requirement. Rated 35kAIC at 480VAC, it features a Visi-Trip indicator and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | JGA36175LC |
| Series | JGA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | JGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, I-Line Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Copper Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Mercury Free, PVC Free, 80% Rated |
Product FAQs
8 answersWhat legacy circuit breaker does the JGA36175LC replace?
The JGA36175LC serves as a direct replacement for the discontinued Square D KA36175 circuit breaker. It fits into the same I-Line panelboards and switchboards while fulfilling the copper lug requirement.
What is the magnetic trip range for this 175A breaker?
The JGA36175LC features an adjustable magnetic trip with a low setting of 875A and a high setting of 1750A. The thermal overload protection is fixed at 175A.
What does the LC suffix indicate on the JGA36175LC catalog number?
The LC suffix specifies that the circuit breaker comes factory-equipped with copper mechanical lugs on the load side, rather than standard aluminum lugs.
Can I install this breaker in a standard QO or Homeline load center?
No. The JGA36175LC is a PowerPacT J-Frame breaker with an I-Line style plug-in connection. It is exclusively designed for use in Square D I-Line panelboards and switchboards.
What size and type of wire can the load lugs on the JGA36175LC accept?
The included copper lugs are designed to accept copper conductors only, ranging from 4 AWG to 4/0 AWG. Do not use aluminum wire with these specific lugs.
Is this breaker suitable for use in DC circuits?
Yes, the JGA36175LC is rated for use in DC applications up to 500VDC. It provides an interrupting capacity of 20kAIC at both 250VDC and 500VDC.
How do I adjust the magnetic trip settings on this breaker?
The magnetic trip settings can be adjusted using the dial located on the front of the trip unit. If the breaker is already installed in an I-Line panelboard, you must safely remove the deadfront to access the adjustment dial.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (L) overload protection and Instantaneous (I) short-circuit protection.
