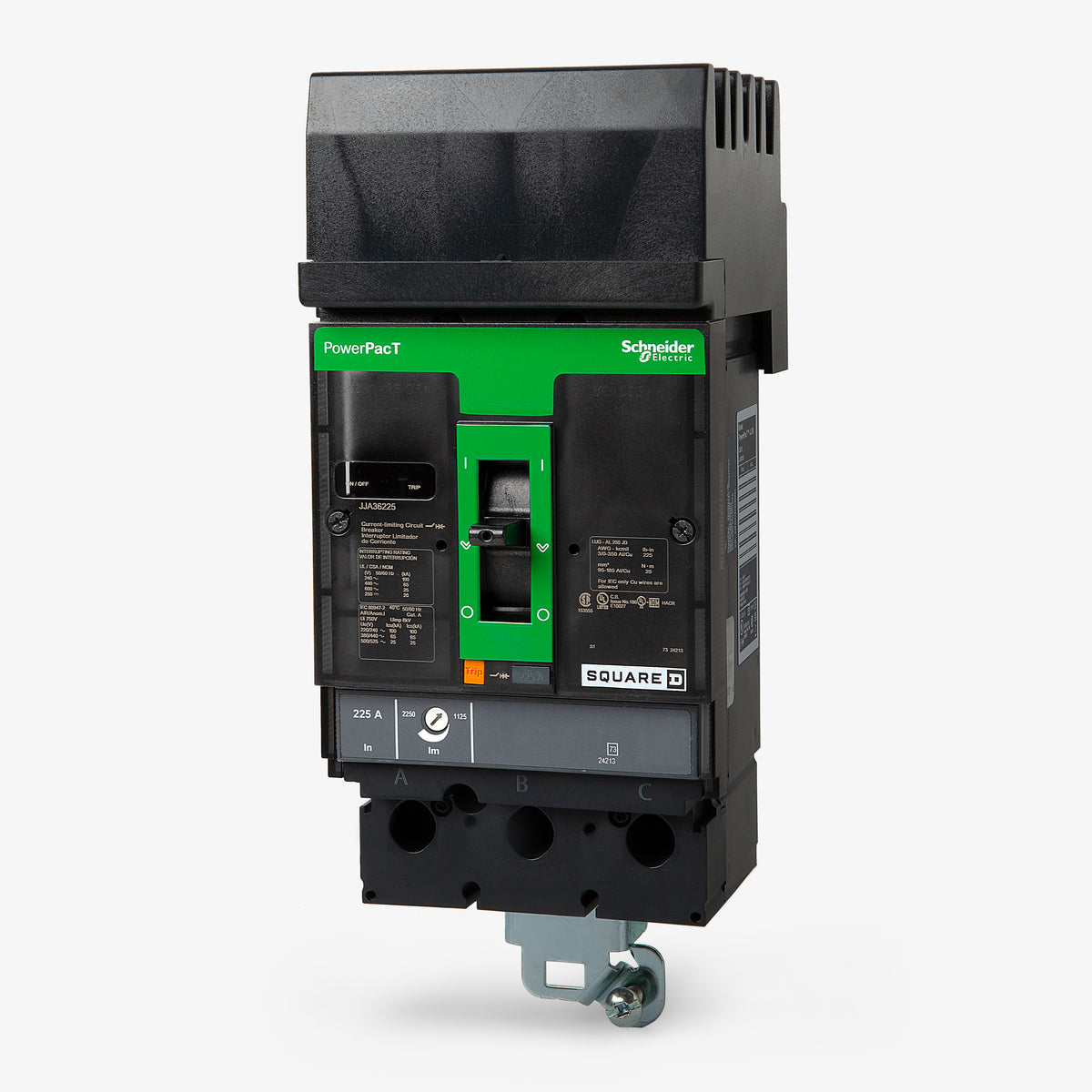

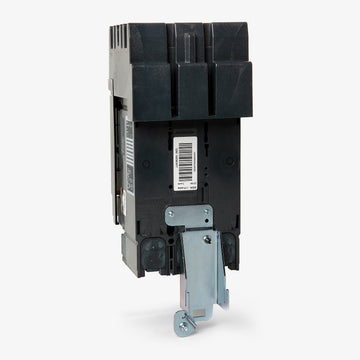

Square D JJA36225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- I-Line
Square D
JJA36225
Molded Case Circuit Breaker
Brand
Square D
SKU
JJA36225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JJA36225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JJA36225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JJA36225 |
| Series | JJA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits, Phase Barriers |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Non-Interchangeable Trip, Mercury Free, PVC Free |
Quantity
Square D JJA36225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JJA36225-R |
| Series | JJA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits, Phase Barriers |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Non-Interchangeable Trip, Mercury Free, PVC Free |
Similar Items
250A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Square D JJA36225 is a 3-pole, 225A molded case circuit breaker from the PowerPacT J-Frame family. This unit installs into Square D I-Line panelboards and switchboards. It serves as an upgrade for legacy KH36225 breakers and replaces the KC36225. Featuring a thermal-magnetic trip unit with LI functions, it boasts a 100kAIC rating at 240VAC. The breaker includes visual trip indicators and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | JJA36225 |
| Series | JJA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits, Phase Barriers |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Non-Interchangeable Trip, Mercury Free, PVC Free |
Product FAQs
8 answersWhat types of panelboards are compatible with the JJA36225 circuit breaker?
This breaker features an I-Line plug-in mounting style and is designed exclusively for use in Square D I-Line Panelboards and I-Line Switchboards. It is not compatible with standard NQ, NF, QO, or Homeline load centers.

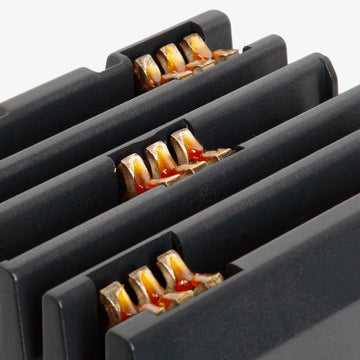

Does the JJA36225 include mechanical lugs on both ends of the breaker?
No. Because this is an I-Line style plug-in breaker, the line side features jaw-style connectors that plug directly onto the panelboard bus bar. Only the load side is equipped with mechanical wire lugs for cable termination.

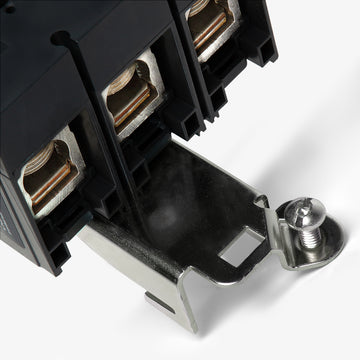

What is the recommended lug tightening torque for this circuit breaker?
The standard load-side lugs on the JJA36225 accept 3/0 AWG to 350 kcmil aluminum or copper wire. The recommended tightening torque for these terminals is 221 lbf-in (25 N.m).
What is the recommended wire stripping length for the load terminals on the JJA36225?
When terminating the load-side wiring, you should strip approximately 1.0 inch (25 mm) of insulation from the conductors before inserting them into the mechanical lugs.
Are the trip settings on the JJA36225 adjustable?
Yes. While the thermal (long-time) trip function is fixed at 225 amps, this breaker includes an adjustable magnetic (instantaneous) trip function. The magnetic trip range can be adjusted from 1125A to 2250A depending on your specific application requirements.
Is the JJA36225 rated for 100 percent continuous current?
No, this is a standard-rated circuit breaker, meaning it is rated for 80 percent continuous load operation. For a continuous load lasting three hours or more, the maximum sustained current should not exceed 180 amps (80 percent of its 225 amp rating).
Can field-installable internal accessories be added to this breaker?
Yes. The PowerPacT J-Frame has designated accessory compartments that can accommodate internal field-installable devices. This includes auxiliary switches, alarm switches, overcurrent trip switches, and voltage releases like shunt trips.
Which legacy Square D circuit breakers does the PowerPacT J-Frame replace?
The PowerPacT J-Frame series, which includes the JJA36225, was introduced by Square D as the modern upgrade and replacement for legacy 250-amp K-Frame molded case circuit breakers, such as the KA, KC, and KH series.
