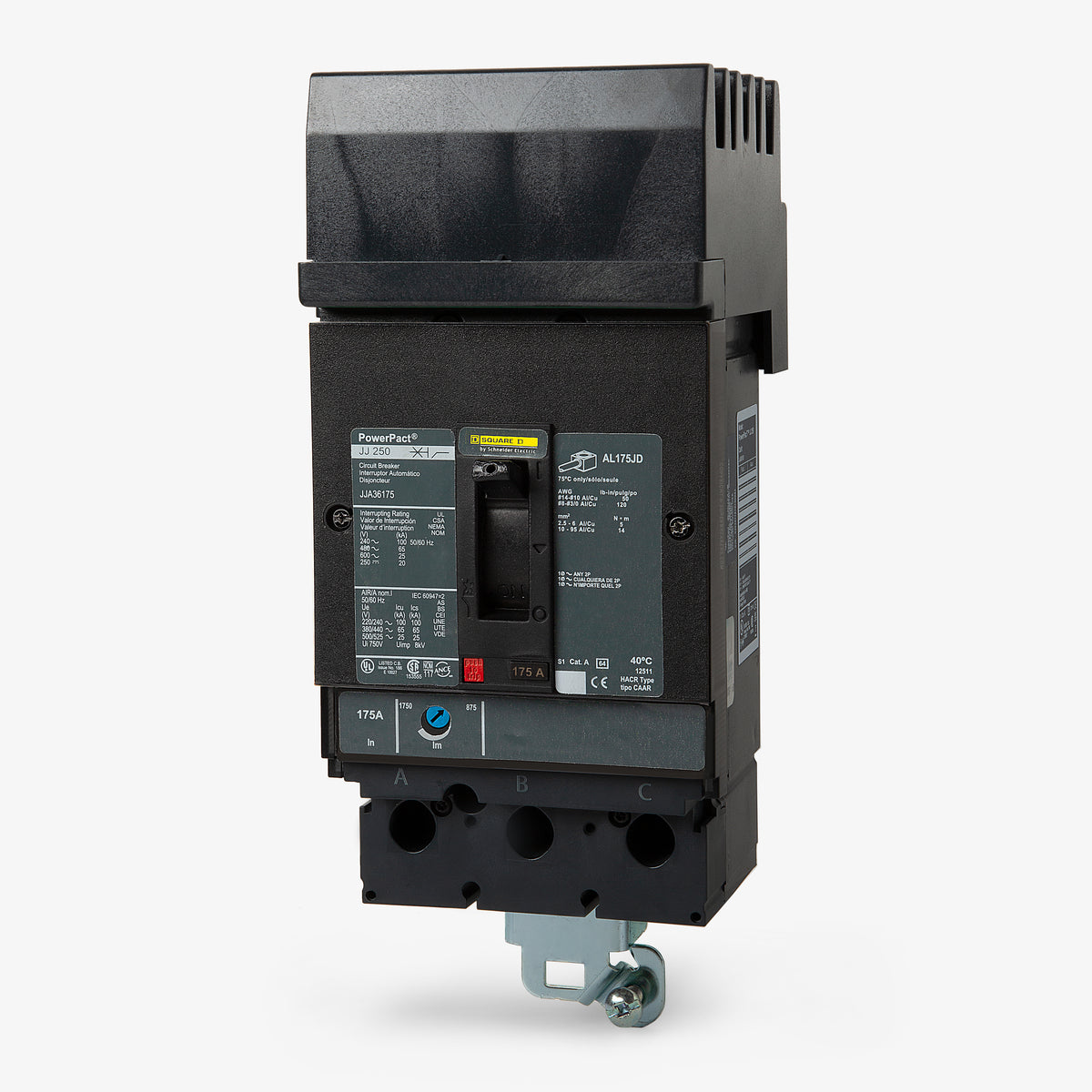

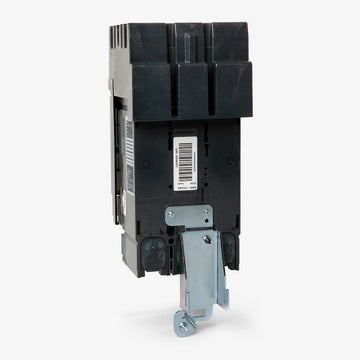

Square D JJA36175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- I-Line
Square D
JJA36175
Molded Case Circuit Breaker
Brand
Square D
SKU
JJA36175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JJA36175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JJA36175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JJA36175 |
| Series | JJA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits, Phase Barriers |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Non-Interchangeable Trip, Mercury Free, PVC Free |
Quantity
Square D JJA36175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JJA36175-R |
| Series | JJA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits, Phase Barriers |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Non-Interchangeable Trip, Mercury Free, PVC Free |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the JJA36175 is a 3-pole MCCB from Square D's PowerPacT J-Frame lineup. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions. This breaker installs into Square D I-Line panelboards and switchboards. It serves as an upgrade for legacy KC36175 and KH36175 breakers. Rated for 175A, it provides a 65kAIC interrupting rating at 480V. The unit includes a Visi-Trip indicator and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | JJA36175 |
| Series | JJA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits, Phase Barriers |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Non-Interchangeable Trip, Mercury Free, PVC Free |
Product FAQs
5 answersIs the JJA36175 rated for 100 percent continuous current?
No, the Square D JJA36175 carries a standard 80 percent continuous current rating [1.1.5]. For typical continuous duty applications, the maximum continuous load on this 175-amp breaker should not exceed 140 amps.
Can I adjust the trip settings on the JJA36175 breaker?
The thermal overload protection is fixed at 175 amps, but the instantaneous magnetic trip is adjustable. You can adjust the magnetic short-circuit response from a low setting of 875A up to a high setting of 1750A to coordinate properly with your electrical system.
Which older Square D circuit breakers does the JJA36175 replace?
This PowerPacT J-Frame circuit breaker serves as a direct upgrade and replacement for legacy Square D KC36175 and KH36175 breakers. It installs seamlessly into existing Square D I-Line panelboards and switchboards.

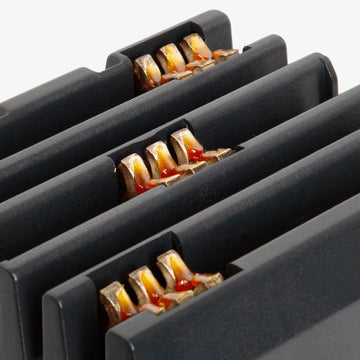

What is the phase connection configuration for this I-Line breaker?
The JJA36175 is factory configured for a standard ABC phase connection. The plug-on jaw connection attaches directly to the ABC bus bar configuration standard in Square D I-Line distribution equipment.

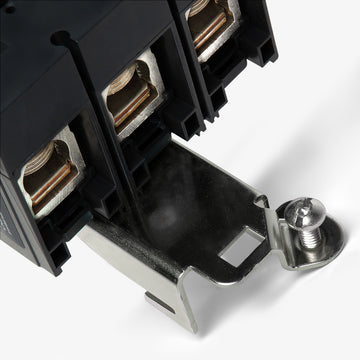

What are the torque specifications for the load side lugs on the JJA36175?
The standard mechanical load side lugs require a 5/16-inch hex bit torque wrench. When terminating your 4 AWG to 4/0 AWG copper or aluminum conductors, the lugs must be torqued to 225 lb-in to ensure a secure and compliant connection.
