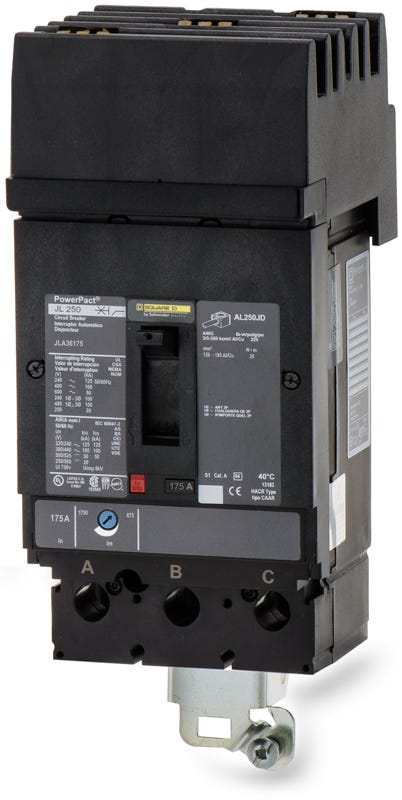

Schneider Electric JLA36175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- I-Line
Schneider Electric
JLA36175
Molded Case Circuit Breaker
Brand
Schneider Electric
SKU
JLA36175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric JLA36175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Schneider Electric JLA36175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | JLA36175 |
| Series | JLA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Frame Type | JLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, 80% Rated |
Quantity
Schneider Electric JLA36175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric |
|---|---|
| Series | JLA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Frame Type | JLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, 80% Rated |
Similar Items
225A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding electrical systems, the Schneider Electric JLA36175 is a 175A, 3-pole PowerPacT J-Frame MCCB. It is equipped with a thermal-magnetic trip unit offering long-time and instantaneous (LI) protection. The catalog prefix denotes its I-Line mounting style, allowing it to plug into Square D I-Line panelboards. With a high interrupting capacity of 100kA at 480VAC, this current-limiting breaker ensures reliable defense against overloads and features dual-break rotating contacts.Specifications
| Brand | Schneider Electric |
|---|---|
| Part Number | JLA36175 |
| Series | JLA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Frame Type | JLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, 80% Rated |
Product FAQs
7 answersWhat type of panelboards are compatible with the JLA36175 circuit breaker?
This breaker is designed for use in Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection on the line side and mechanical lugs on the load side.
How does the I-Line connection work on this breaker?
The line side of the breaker features plug-on jaws that attach directly to the I-Line busbar, secured by a mounting bracket. The load side uses standard mechanical lugs for wire termination.
What wire sizes are accepted by the standard lugs on the JLA36175?
The standard load-side lugs accept 4 AWG to 4/0 AWG aluminum or copper wire.
What is the magnetic trip range for the JLA36175?
This breaker features an adjustable magnetic trip unit with a range from a low setting of 875A to a high setting of 1750A.
What does the L in the JLA36175 part number signify?
The L indicates the interrupting rating code for the PowerPacT J-Frame series. L-interrupting breakers provide 100kAIC at 480VAC, which is a higher tier than the D, G, and J interrupting ratings.
Is the JLA36175 rated for 100 percent continuous current?
No, this is a standard 80 percent rated circuit breaker.
What is the phase connection for the JLA36175?
This 3-pole breaker has a standard ABC phase connection for I-Line panelboards.
