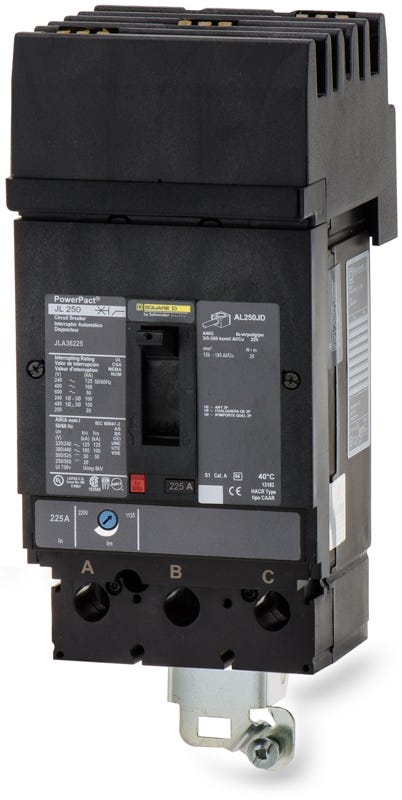

Schneider Electric JLA36225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- I-Line
Schneider Electric
JLA36225
Molded Case Circuit Breaker
Brand
Schneider Electric
SKU
JLA36225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric JLA36225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Schneider Electric JLA36225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | JLA36225 |
| Series | JLA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Frame Type | JLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, 80% Rated |
Quantity
Schneider Electric JLA36225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric |
|---|---|
| Series | JLA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Frame Type | JLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, 80% Rated |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Schneider Electric JLA36225 is a 3-pole, 225A molded case circuit breaker from the PowerPacT J-Frame family. It provides reliable thermal-magnetic (LI) protection for heavy-duty electrical systems. This unit mounts into Square D I-Line panelboards and switchboards. The J-Frame design ensures standardized dimensions for simplified integration. Rated for 100kAIC at 480VAC, this current-limiting breaker includes a Visi-Trip indicator.Specifications
| Brand | Schneider Electric |
|---|---|
| Part Number | JLA36225 |
| Series | JLA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Frame Type | JLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, 80% Rated |
Product FAQs
5 answersWhat type of panels accept the JLA36225 circuit breaker?
It is designed for Square D I-Line panelboards and switchboards. The breaker features an I-Line plug-on design that connects directly to the panel bus stack, eliminating the need for line-side wire connections.
How is the JLA36225 secured into an I-Line panelboard?
The breaker plugs directly onto the bus stack using blow-on type line-side connectors. During installation, a flat-blade screwdriver is used in the mounting bracket notch to ratchet and fully seat the breaker against the bus bars. Finally, the retaining screw is tightened to the mounting pan.
What does the "L" in the JLA36225 catalog number signify?
The "L" indicates the interrupting rating tier for this PowerPacT J-Frame breaker. In this series, the L-rating provides a high interrupting capacity of 100 kA at 480 VAC and 125 kA at 240 VAC.
What are the wire size and torque specifications for the JLA36225 lugs?
The standard AL250JD load-side lugs accept aluminum or copper wire ranging from 3/0 AWG to 350 kcmil. The required tightening torque for these lugs is 225 lb-in (25 N.m).
What is the magnetic trip adjustment range for this breaker?
While the thermal overload protection is fixed at 225 amps, the instantaneous magnetic trip function is adjustable from 1125A to 2250A. This allows electricians to fine-tune the short-circuit protection based on specific load characteristics.
