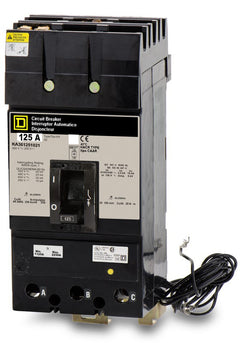

Square D KA36100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- I-Line
Square D
KA36100
Molded Case Circuit Breaker
Brand
Square D
SKU
KA36100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KA36100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D KA36100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA36100 |
| Series | KA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Quantity
Square D KA36100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA36100-R |
| Series | KA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
80A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial applications, the Square D KA36100 is a 3-pole, 100A molded case circuit breaker. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) protection to safeguard critical systems. This legacy K-Frame breaker installs into Square D I-Line panelboards and switchboards. Often used to maintain existing infrastructure, it is replaced by the HGA36100 for modern upgrades. Rated 25kAIC at 480V, it includes a Visi-Trip indicator for quick fault detection.Specifications
| Brand | Square D |
|---|---|
| Part Number | KA36100-R |
| Series | KA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the KA36100 circuit breaker?
This K-Frame breaker is designed exclusively for Square D I-Line panelboards and switchboards. It will not fit in standard residential load centers like QO or Homeline, nor will it fit NQOD panels.
Is the KA36100 still actively manufactured, or is there a direct replacement?
The KA36100 is a legacy K-Frame MCCB. For modern panel upgrades, it is typically replaced by the PowerPact H-Frame series, such as the HDA36100 or HGA36100, which match the I-Line mounting and physical bus space requirements.
How much bus space does this 3-pole breaker require in an I-Line panel?
The KA36100 requires 4.5 inches of bus mounting space, which breaks down to 1.5 inches per pole on the panelboard interior.
How does the I-Line style plug-in connection work?
The line side of the breaker features plug-on jaws that securely grip the panel busbars. The load side uses standard mechanical lugs to connect your outgoing phase conductors.
What is the purpose of the adjustable magnetic trip on this breaker?
While the thermal overload protection is fixed, the adjustable magnetic trip allows you to change the instantaneous trip point. This is useful for accommodating temporary high inrush currents, like those from motor starting, without causing nuisance tripping.
How can I visually identify if the KA36100 has tripped?
This breaker includes a Visi-Trip indicator. If a fault or overload causes the breaker to trip, the handle snaps to a center position and a bright visual indicator appears to help electricians quickly locate the tripped circuit in a crowded panel.
