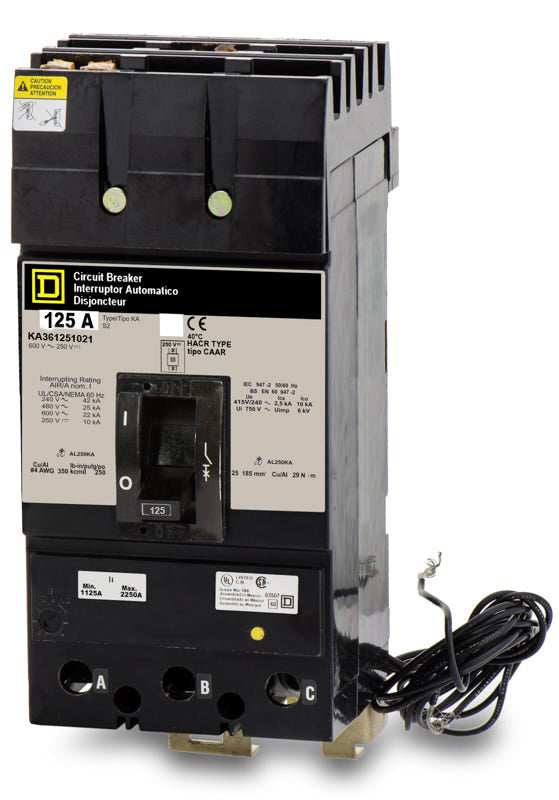

Square D KA36125-1021 Molded Case Circuit Breaker
- 125A
- 3 Pole
- I-Line
Square D
KA36125-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
KA36125-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KA36125-1021 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D KA36125-1021 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA36125-1021 |
| Series | KA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D KA36125-1021 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA36125-1021-R |
| Series | KA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items

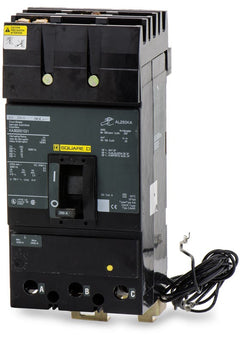

225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
The KA36125-1021 is a 3-pole, 125A MCCB from Square D's legacy K-Frame lineup, built for commercial and industrial power distribution. Featuring an I-Line mounting style, it installs into Square D I-Line panelboards and switchboards. This legacy breaker is replaced by the PowerPact HGA36125SA. This model includes a factory-installed 120-240VAC shunt trip for remote disconnects. It delivers 42kAIC at 240VAC and features an adjustable magnetic trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | KA36125-1021-R |
| Series | KA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat does the -1021 suffix mean on the Square D KA36125-1021?
The -1021 suffix indicates that this circuit breaker includes a factory-installed 120-240VAC shunt trip accessory. This allows the breaker to be tripped remotely via a separate control circuit.
What is the modern replacement for the legacy KA36125-1021?
The KA36125-1021 is a legacy K-Frame breaker. In modern Square D systems, it is typically replaced by the PowerPact H-Frame series, specifically models like the HGA36125SA, which also features an I-Line connection and a factory-installed shunt trip.
Can I install the KA36125-1021 in a standard QO or Homeline load center?
No, this is an I-Line style plug-in molded case circuit breaker. It is designed exclusively for commercial and industrial Square D I-Line panelboards and switchboards, and will not fit in standard residential load centers.
Does the KA36125-1021 require a separate mounting kit for I-Line panels?
No, the KA36125-1021 features an integrated I-Line style plug-in connection. It mounts directly onto the I-Line bus assembly without the need for additional mounting hardware or brackets.
Can I adjust the trip settings on the KA36125-1021?
The thermal overload protection is fixed at 125 amps, but the magnetic short-circuit protection is adjustable. This allows you to fine-tune the instantaneous trip response for your specific application.
Is the KA36125-1021 suitable for 480V commercial systems?
Yes, this breaker is rated for up to 600VAC. When installed in a 480V system, it provides an interrupting capacity of 25kAIC.
Can I use aluminum wire with the KA36125-1021?
Yes, the standard lugs on this breaker are dual-rated for both aluminum and copper conductors, accepting wire sizes from 4 AWG to 350 kcmil.
