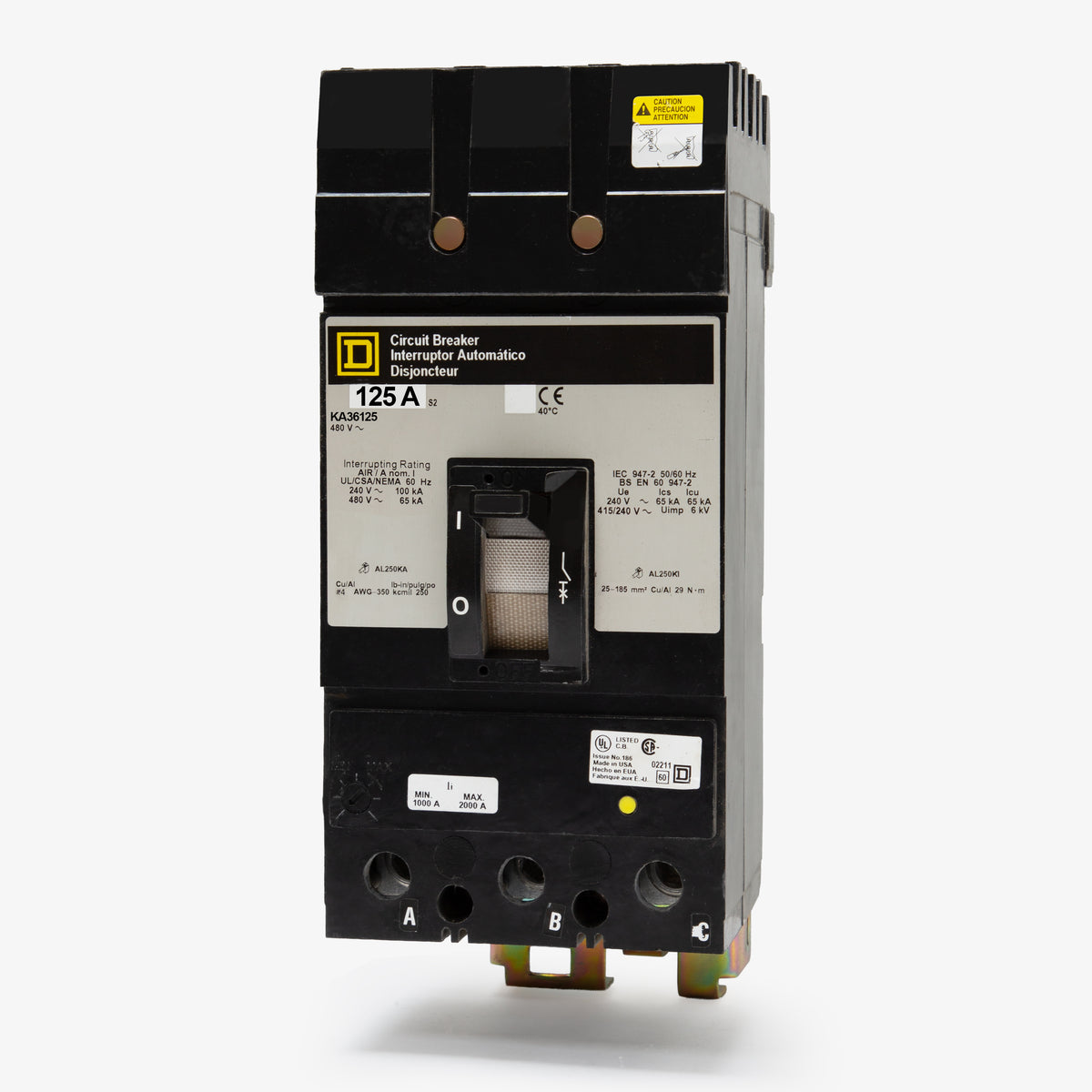

Square D KA36125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- I-Line
Square D
KA36125
Molded Case Circuit Breaker
Brand
Square D
SKU
KA36125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KA36125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D KA36125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA36125 |
| Series | KA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Quantity
Square D KA36125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA36125-R |
| Series | KA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
110A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial environments, the Square D KA36125 is a 3-pole, 125A MCCB. It provides essential protection through a reliable thermal-magnetic trip unit with an adjustable magnetic threshold. This legacy K-Frame breaker features a plug-on connection that mounts into Square D I-Line panelboards. For complete panel upgrades, this model is replaced by the PowerPact HGA36125. Rated for 25kAIC at 480VAC, it includes a Visi-Trip indicator to easily spot tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | KA36125 |
| Series | KA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
7 answersWhat is the modern replacement for the legacy KA36125 circuit breaker?
The KA36125 is a legacy K-frame breaker. For panel upgrades requiring a modern equivalent, Schneider Electric recommends the PowerPact H-frame series, such as the HGA36125, which provides the same 125A, 3-pole I-Line configuration.
Is the KA36125 compatible with standard Square D NQ or NF panelboards?
No. This breaker is specifically designed with an I-Line plug-on connection. It will only mount in Square D I-Line panelboards and switchboards, not standard NQ or NF distribution panels.
How does the adjustable magnetic trip function on this breaker?
The KA36125 features a thermal-magnetic trip unit where the thermal overload protection is fixed, but the magnetic short-circuit trip threshold can be manually adjusted. This allows installers to properly coordinate the instantaneous trip point with other downstream protection devices.
How is the KA36125 breaker installed in the panel?

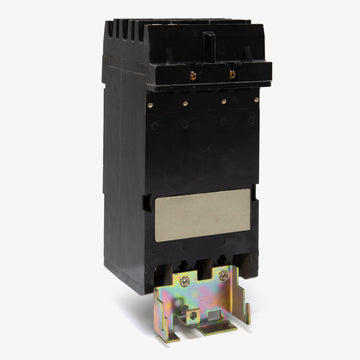

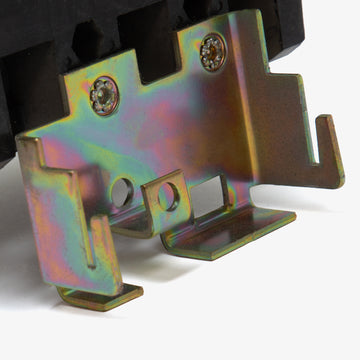

It utilizes an I-Line plug-on mounting style for the line side, which seats directly onto the panelboard bus. The load side connections are made using mechanical lugs that accept 4 AWG to 350 kcmil aluminum or copper wire.
Can the trip unit be swapped or upgraded in the field?
No, the KA36125 is constructed with a non-interchangeable trip unit. The factory-installed thermal-magnetic trip components cannot be removed or upgraded by the user.
Does the KA36125 feature a visual trip indicator?
Yes, this breaker includes a Visi-Trip indicator. When a fault causes the breaker to trip, the handle rests in a center position and a high-visibility indicator appears, making it easy to visually spot the tripped circuit in an active panelboard.
Is this circuit breaker rated for use in DC systems?
Yes, the KA36125 is rated for both alternating current (AC) and direct current (DC) systems. It carries a DC interrupting rating of 10kA at 250VDC. Always verify DC suitability on the physical nameplate before applying it to battery strings or charger feeder circuits.
