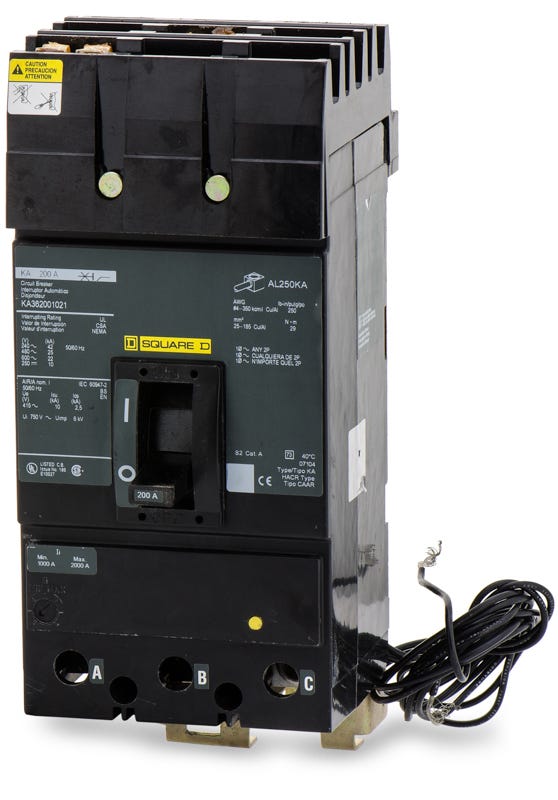

Square D KA362001021 KA36200-1021 - 200A 3 Pole Molded Case Circuit Breaker
- 200A
- 3 Pole
- I-Line
Square D
KA362001021
KA36200-1021 - 200A 3 Pole Molded Case Circuit Breaker
Brand
Square D
SKU
KA362001021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KA36200-1021 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D KA36200-1021 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA362001021 |
| Series | KA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | K |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Quantity
Square D KA36200-1021 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | KA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | K |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
KAL362001021 3 Pole Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
The Square D KA362001021 is a 3-pole, 200A molded case circuit breaker built for industrial power distribution. As part of the legacy K-Frame series, it delivers reliable thermal-magnetic protection with adjustable magnetic trip settings. It features an I-Line plug-on connection for seamless installation into Square D I-Line panelboards. Rated 25 kAIC at 480VAC, this unit includes a factory-installed 120-240VAC shunt trip (1021 suffix) for remote tripping and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | KA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | K |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
5 answersHow does the KA36200-1021 install into a panelboard?
It utilizes an I-Line style plug-in connection, allowing it to snap directly onto the busbar of Square D I-Line panelboards and switchboards. This design eliminates the need for bolt-on hardware, speeding up installation and replacement.
What does the -1021 suffix mean on the KA36200-1021?
The -1021 suffix indicates that this circuit breaker includes a factory-installed 120/240VAC shunt trip. This accessory allows for remote tripping capabilities.
Is the KA36200-1021 a current production model?
The KA frame is a legacy molded case circuit breaker. While the K-Frame family has been succeeded by the newer PowerPact J-Frame series, the KA36200-1021 serves as an exact drop-in replacement for maintaining existing K-Frame I-Line installations.
Are the trip settings adjustable on the KA36200-1021?
Yes, it features a thermal-magnetic trip unit with a fixed thermal element for long-time overload protection and an adjustable magnetic element. The adjustable magnetic trip allows electricians to fine-tune the instantaneous short-circuit protection to match specific load requirements.
How does the shunt trip function on the KA36200-1021 improve safety?
The factory-installed 120/240VAC shunt trip allows the breaker to be tripped remotely. This is commonly used to disconnect power during emergencies, such as tying the breaker into a fire alarm panel or an emergency stop button system.
