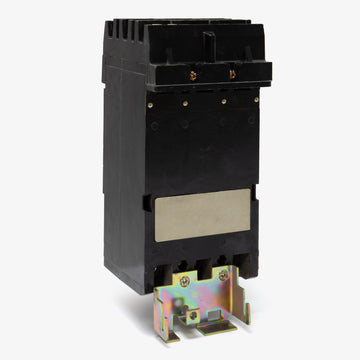

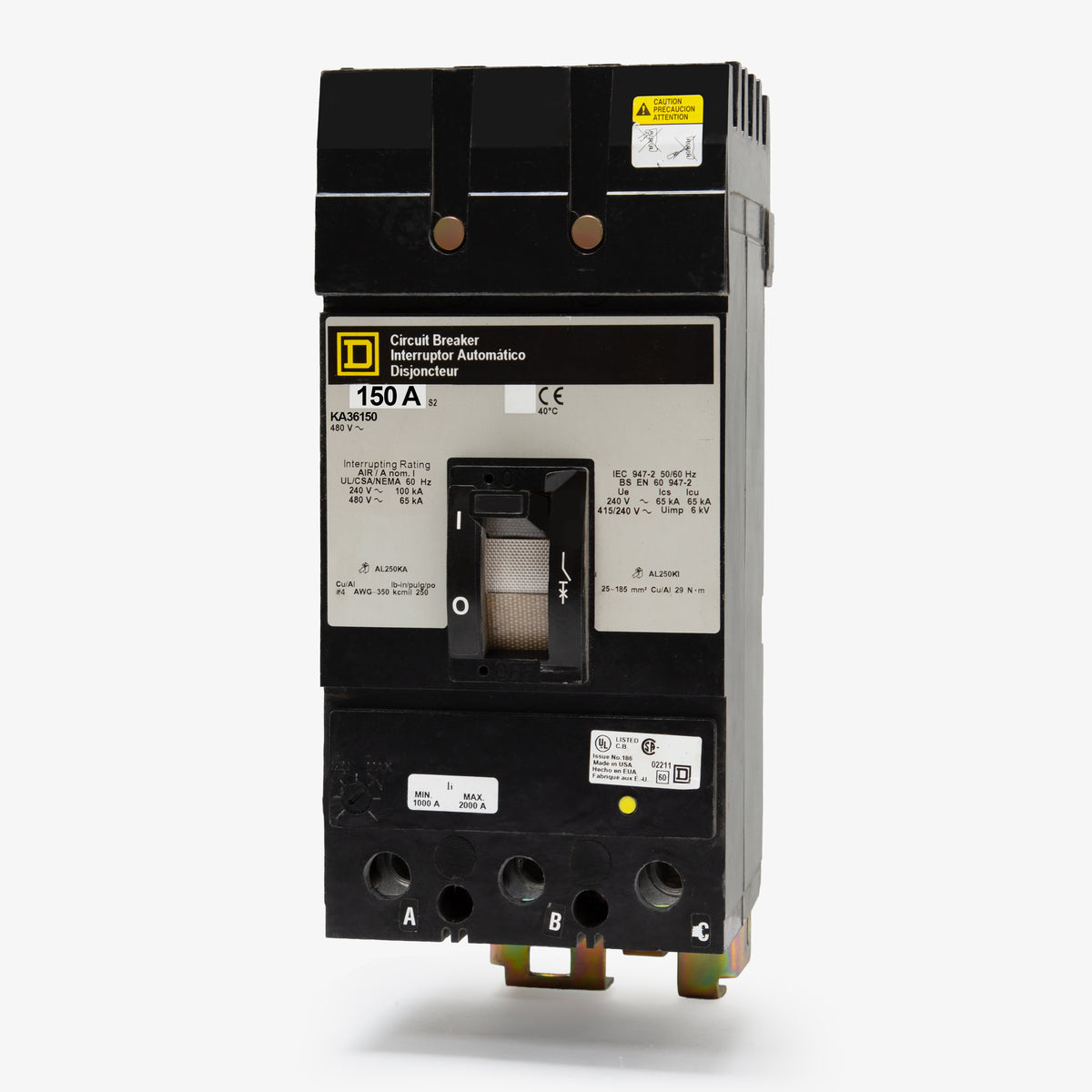

Square D KA36150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- I-Line
Square D
KA36150
Molded Case Circuit Breaker
Brand
Square D
SKU
KA36150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KA36150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D KA36150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA36150 |
| Series | KA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D KA36150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA36150-R |
| Series | KA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Delivering robust overcurrent protection, the Square D KA36150 is a 150A, 3-pole molded case circuit breaker from the trusted K-Frame family. It is engineered to handle the rigorous demands of commercial electrical systems. This breaker features an I-Line configuration, allowing it to plug into Square D I-Line panelboards. Facilities can replace this unit with the newer HGA36150 model. The thermal-magnetic trip unit provides a 42kA interrupting rating at 240VAC and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | KA36150 |
| Series | KA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWill the KA36150 fit into standard Square D load centers or NQ panelboards?
No. The KA36150 features an I-Line plug-on connection designed exclusively for Square D I-Line panelboards and switchboards. It is not compatible with standard residential QO load centers, NQ panels, or NF panelboards.
How does the adjustable magnetic trip function operate on this K-frame breaker?
This thermal-magnetic breaker features a fixed thermal element for long-time overload protection and an adjustable magnetic element for instantaneous short-circuit protection. The adjustable dial allows technicians to tune the instantaneous trip threshold to better coordinate with downstream devices or accommodate motor inrush currents without nuisance tripping.
How are the line and load connections configured on the KA36150?

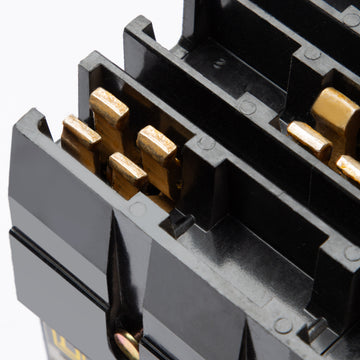

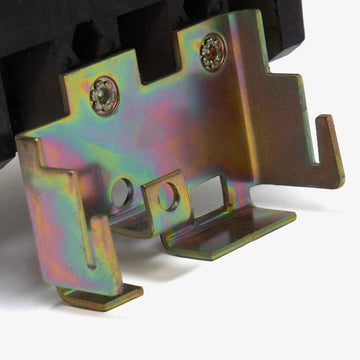

As an I-Line breaker, the line side utilizes factory-installed plug-on jaws that mount directly to the panelboard bus structure. The load side is equipped with mechanical lugs designed to accept 4 AWG to 350 kcmil aluminum or copper conductors.
Is the KA36150 part of a current production series?
The KA frame is a legacy molded case circuit breaker series from Square D. While original KA36150 units remain heavily utilized for exact replacements in existing I-Line switchboards, Schneider Electric has largely superseded the classic K-frame design with the modern PowerPact series for new installations.
Can the KA36150 be utilized in direct current (DC) power systems?
Yes. Alongside its standard AC ratings, the KA36150 is rated for use in DC applications up to 250 VDC, providing a 10 kA interrupting capacity. When installing in DC circuits, consult manufacturer guidelines to ensure proper pole wiring and series connections for your specific system voltage.
