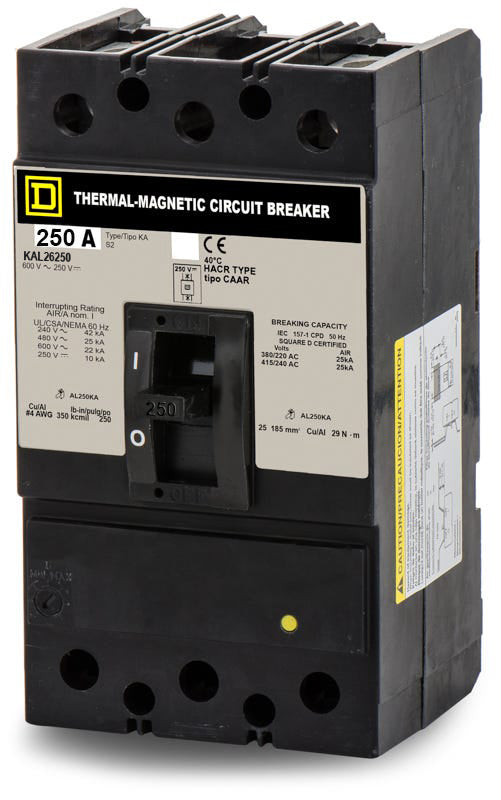

Square D KAL26250 Molded Case Circuit Breaker
- 250A
- 2 Pole
- Unit Mount
Square D
KAL26250
Molded Case Circuit Breaker
Brand
Square D
SKU
KAL26250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAL26250 - 250A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D KAL26250 - 250A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL26250 |
| Series | KAL |
| Amperage | 250A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Trip-Free Mechanism, Common Trip |
Quantity
Square D KAL26250 - 250A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | KAL |
| Amperage | 250A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Trip-Free Mechanism, Common Trip |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
The KAL26250 is a 2-pole, 250A molded case circuit breaker from Square D's legacy K-Frame series. It delivers robust thermal-magnetic protection for commercial and industrial systems. Designed for unit mounting, it installs into Square D enclosures, switchboards, and motor control centers. This legacy model is officially replaced by the modern PowerPact J-Frame (JDL26250). Rated 25 kAIC at 480V, it features adjustable magnetic trip settings and a trip-free mechanism.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL26250 |
| Series | KAL |
| Amperage | 250A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Trip-Free Mechanism, Common Trip |
Product FAQs
7 answersWhat equipment is the KAL26250 designed to fit?
This K-Frame breaker is engineered for unit-mount installation in legacy Square D enclosures, switchboards, and motor control centers.
What are the adjustable magnetic trip settings for the KAL26250?
The instantaneous magnetic trip on this 250A breaker is adjustable, with a low setting of 1250A and a high setting of 2500A.
What wire sizes are compatible with the KAL26250 lugs?
The standard factory lugs accept either aluminum or copper conductors ranging from 4 AWG to 350 kcmil.
What is the modern replacement for the legacy KAL26250?
The KAL series is a legacy K-Frame product. Square D now uses the PowerPact J-Frame series for modern 250A applications. Upgrading to a PowerPact breaker in an existing system often requires retrofit adapter brackets to match the original K-Frame footprint.
Can the KAL26250 be utilized in DC circuits?
Yes, in addition to its AC ratings, this breaker carries a 250VDC rating with a 10kA interrupting capacity, making it suitable for specific direct current control or distribution systems.
How does the KAL26250 mount into a system?
This is a feed-thru, unit-mount breaker. It bolts directly to a mounting pan or enclosure backplate and is hardwired, rather than plugging into a panelboard busbar.
Does the KAL26250 provide ground fault protection?
No, the KAL26250 features standard thermal-magnetic trip technology for overload and short-circuit protection. It does not include integral ground fault or arc fault capabilities.
