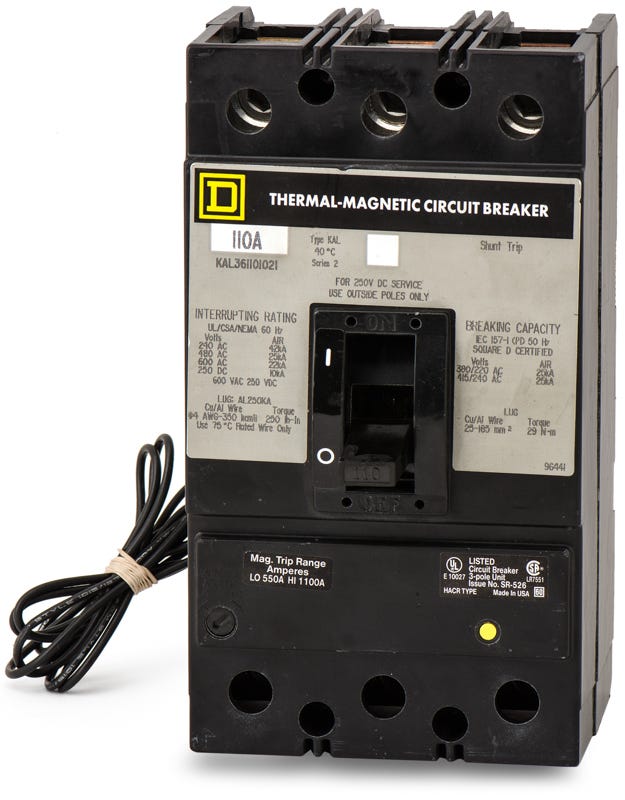

Square D KAL361101021 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Unit Mount
Square D
KAL361101021
Molded Case Circuit Breaker
Brand
Square D
SKU
KAL361101021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAL361101021 - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Rated for 110A at 600VAC, this Square D K-Frame MCCB includes a factory-installed 120-240VAC shunt trip for remote operation. It is engineered for robust performance in commercial and industrial environments. Designed for unit mounting, it fits seamlessly into Square D switchboards, motor control centers, and industrial control panels. It is replaced by the HGL36110 when using a retrofit kit.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL361101021 |
| Series | KAL |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Lugs (AL250KA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
8 answersWhat does the 1021 suffix indicate on the KAL361101021 catalog number?
The 1021 suffix means this breaker comes equipped with a factory-installed 120/240VAC shunt trip, allowing the breaker to be tripped remotely by an external voltage signal.
What is the difference between the KAL36110 and the KAL361101021?
The KAL36110 is the standard base model K-Frame breaker. The KAL361101021 is the exact same 110A breaker but includes the factory-installed 120/240VAC shunt trip accessory.
Is the magnetic trip setting adjustable on this 110A breaker?
Yes, while the thermal (long-time) protection is fixed at 110 amps, the magnetic (instantaneous) trip setting is adjustable to help coordinate with other protective devices in your electrical system.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (L) protection for overloads and Instantaneous (I) protection for short circuits.
What type of wire can be used with the factory lugs on the KAL361101021?
The included lugs are rated for both aluminum and copper (Al/Cu) conductors, accepting wire sizes from 4 AWG up to 350 kcmil.
Can this K-Frame breaker be used in DC applications?
Yes, the KAL361101021 is rated for 250VDC systems and provides up to 10kA interrupting capacity for direct current applications.
Can I install the KAL361101021 in a Square D I-Line panelboard?
No, this is a unit-mount (feed-thru) breaker designed for individual enclosures, switchboards, and control panels. It does not have the plug-on jaw connections required for I-Line panelboards.
How do I safely test the mechanical operation of this breaker?
You can use the push-to-trip feature to manually trip the breaker. This verifies the mechanical linkage is operating correctly without requiring exposure to live electrical parts.
