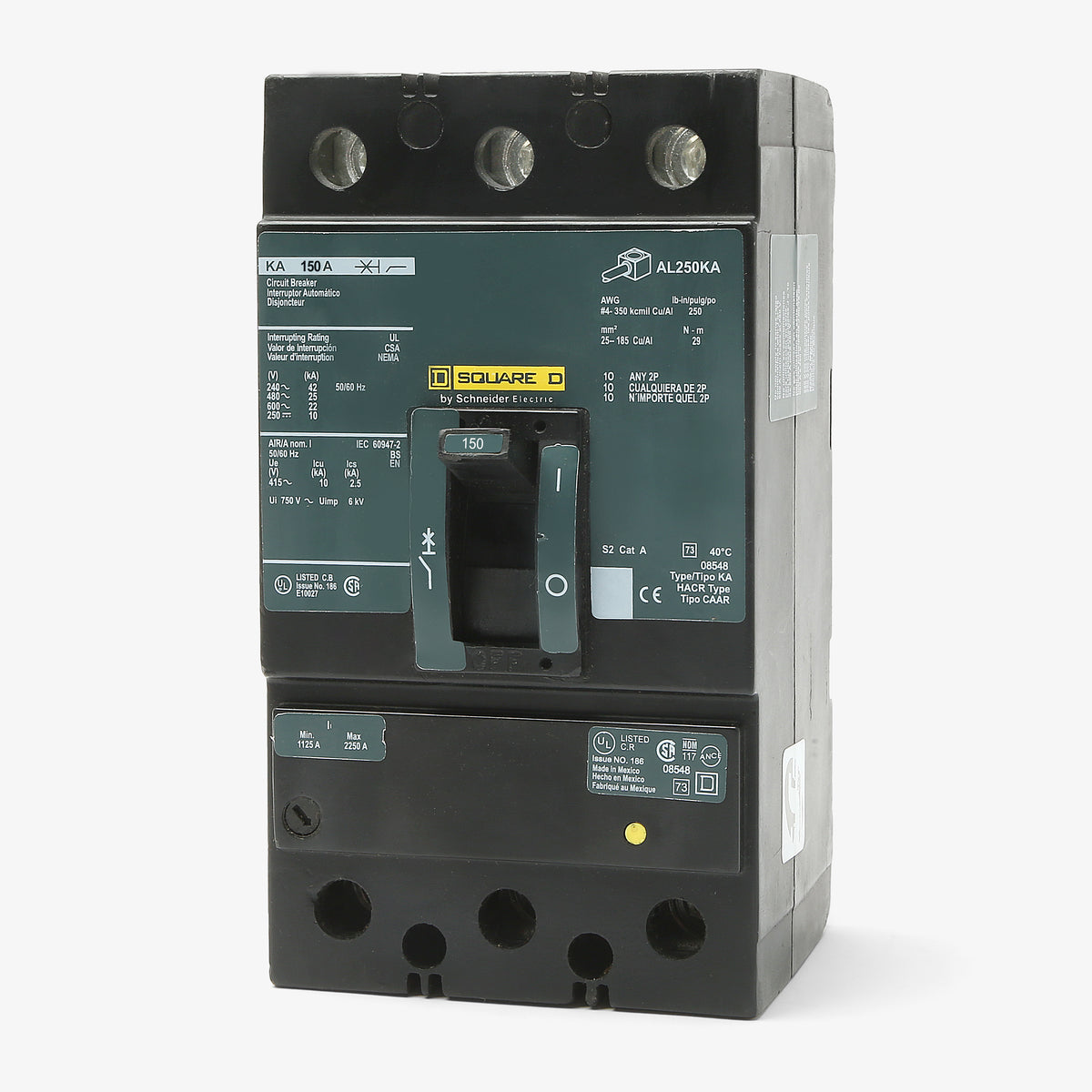

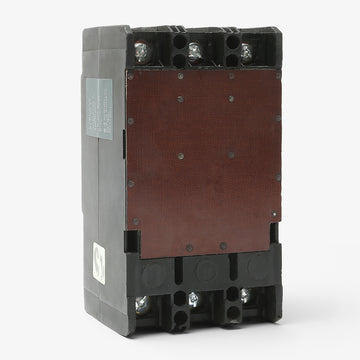

Square D KAL36150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Square D
KAL36150
Molded Case Circuit Breaker
Brand
Square D
SKU
KAL36150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAL36150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D KAL36150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL36150 |
| Series | KAL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D KAL36150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL36150-R |
| Series | KAL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Providing 150 amps of continuous current capacity, the KAL36150 operates as a 3-pole thermal-magnetic breaker designed for heavy-duty commercial and industrial power distribution. This K-Frame device mounts into Square D enclosures, industrial control panels, and switchboards. When upgrading older infrastructure, this legacy breaker is replaced by the PowerPact JGL36150. The unit features Square D's signature Visi-Trip indicator, allowing operators to quickly identify a tripped circuit.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL36150-R |
| Series | KAL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersIs the KAL36150 still manufactured, or is there a direct replacement?
The KAL36150 is a legacy K-Frame breaker. For new installations or panel upgrades, Square D recommends replacing it with the modern PowerPact J-Frame series, such as the JGL36150. If you are replacing an existing KAL unit, check your enclosure dimensions since the J-Frame has a different footprint.
What is the magnetic trip range for this 150A breaker?
This thermal-magnetic breaker features a fixed thermal element for long-time protection and an adjustable instantaneous magnetic trip. The magnetic trip dial can be set between 750A and 1500A, allowing you to coordinate the breaker with system inrush currents to prevent nuisance tripping.

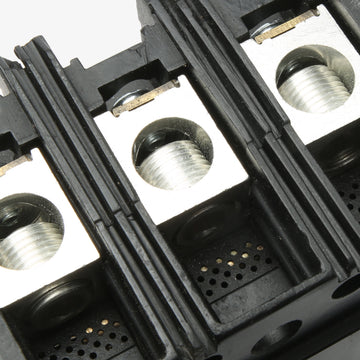

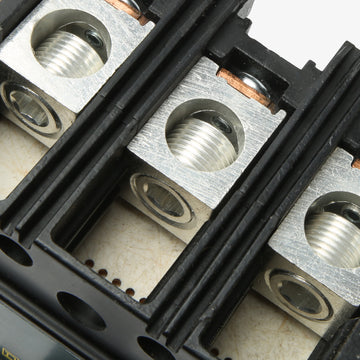

What lug kit comes standard with this K-Frame breaker?
The factory standard lug kit is the AL250KA. It accommodates one aluminum or copper conductor per phase, accepting wire sizes from 4 AWG to 350 kcmil, and requires a seating torque of 250 lb-in during installation.
Can the KAL36150 be installed in an I-Line panelboard?
No. The KAL36150 is a feed-thru, unit-mount circuit breaker that requires traditional wire lug connections on both the line and load sides. It does not have the plug-on jaw connections required for Square D I-Line busway panels.
Is this breaker rated for use in DC voltage applications?
Yes, this breaker carries a 250VDC rating with a 10kA interrupting capacity. When using molded case circuit breakers in DC applications, always consult the manufacturer wiring diagrams to ensure proper series pole connections.
What types of enclosures are compatible with the KAL36150?
As a unit-mount circuit breaker, it is designed to be installed in Square D individual enclosures, industrial control panels, motor control centers, and older switchboards that are built to accept bolt-on, lug-to-lug hardware.
