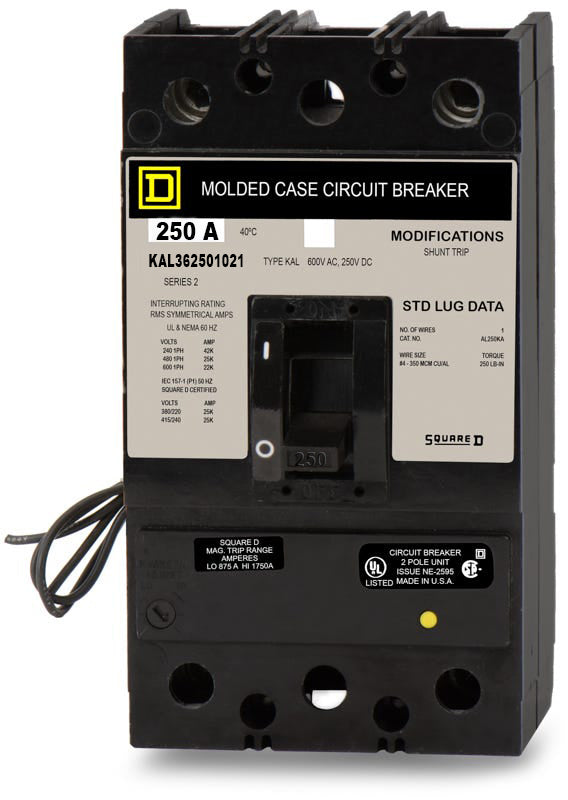

Square D KAL36250-1021 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Unit Mount
Square D
KAL36250-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
KAL36250-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAL36250-1021 - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Designed for advanced control, this 250-amp molded case circuit breaker includes a factory-installed 120-240VAC shunt trip for remote shutdown capabilities. It integrates seamlessly into Square D enclosures, QED switchboards, and motor control centers requiring unit-mount configurations. Delivering reliable thermal-magnetic protection with an adjustable magnetic trip, it handles up to 42kAIC at 240VAC. For modern upgrades, this legacy unit crosses over to the PowerPacT JGL36250.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL36250-1021 |
| Series | KAL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
8 answersWhat does the -1021 suffix mean on the KAL36250-1021?
The 1021 suffix indicates that this circuit breaker includes a factory-installed 120/240VAC shunt trip. This allows the breaker to be tripped remotely via an external control signal.
What is the modern replacement for the legacy KAL36250-1021?
The legacy Square D K-Frame series has been discontinued. The modern equivalent is the PowerPacT J-Frame series, specifically the JGL36250. You will need to verify the shunt trip accessory requirements and panel fitment for your specific application.
Can I install the KAL36250-1021 in an I-Line panelboard?
No. The KAL36250-1021 is a unit mount, feed-thru circuit breaker designed for standard Square D enclosures, switchboards, and motor control centers. It does not have the plug-on jaw connections required for I-Line panelboards.
What size wire can the lugs on the KAL36250-1021 accept?
The standard lugs on this 250A breaker accept aluminum or copper wire ranging from 4 AWG to 350 kcmil. Ensure you torque the connections to the manufacturer specifications printed on the breaker faceplate.
Is the magnetic trip adjustable on the KAL36250-1021?
Yes. While the thermal overload protection is fixed, the instantaneous magnetic trip is adjustable. This allows you to fine-tune the short circuit response to coordinate with downstream equipment or motor inrush currents.
Can this breaker be used in DC applications?
Yes, the KAL36250-1021 is rated for up to 250VDC with an interrupting capacity of 10kA. It is suitable for both AC and DC systems within its voltage limits.
How do I wire the shunt trip on the KAL36250-1021?
The factory-installed 120/240VAC shunt trip comes with external wiring leads. These leads must be connected to a remote control circuit, such as a push button or fire alarm relay, that provides the required voltage to activate the trip mechanism.
What does the push-to-trip button do on this K-Frame breaker?
The push-to-trip feature allows you to manually trip the breaker to verify the mechanical operation of the tripping mechanism. It is a safe way to exercise the breaker without exposing personnel to live electrical parts.
