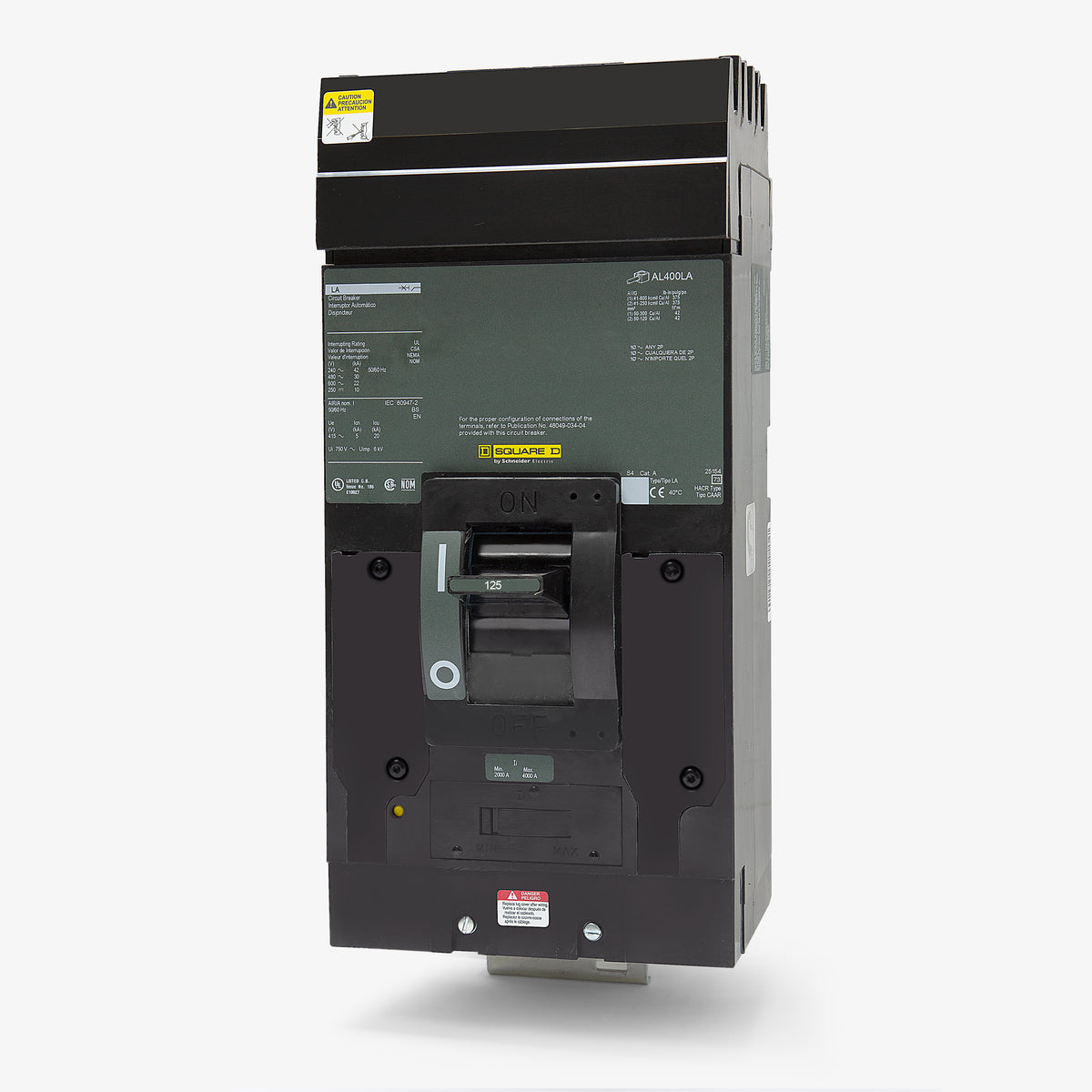

Square D LA36125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- I-Line
Square D
LA36125
Molded Case Circuit Breaker
Brand
Square D
SKU
LA36125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LA36125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LA36125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LA36125 |
| Series | LA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D LA36125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LA36125-R |
| Series | LA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Delivering reliable thermal-magnetic protection, this 3-pole, 125A circuit breaker serves as a staple of Square D's LA frame lineup. It is engineered for commercial applications, providing standard long-time and instantaneous (LI) trip functions. Featuring a plug-on I-Line mounting style, the breaker installs into compatible Square D I-Line panelboards. Facilities looking to modernize can replace this unit with the newer PowerPacT H-Frame HJA36125.Specifications
| Brand | Square D |
|---|---|
| Part Number | LA36125 |
| Series | LA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat is the adjustable magnetic trip range for the Square D LA36125?
The instantaneous magnetic trip function on this thermal-magnetic breaker can be adjusted from a low setting of 625 Amps to a high setting of 1250 Amps.
How many conductors can be landed on the standard lugs of the LA36125?
The standard mechanical lugs are designed to accept either a single large conductor from 1 AWG to 600 kcmil, or dual smaller conductors from 1 AWG to 250 kcmil per phase. They support both aluminum and copper wiring.
Is the LA36125 compatible with NQ or NF lighting panelboards?
No. This breaker features an I-Line plug-on connection and is exclusively compatible with Square D I-Line power panelboards and switchboards.
What is the modern PowerPact alternative to the legacy LA36125?
For new installations or complete panel upgrades, Schneider Electric has transitioned the legacy LA-Frame series to the modern PowerPact series. The PowerPact HJA36125 is the direct modern equivalent for 125 Amp, 3-pole I-Line applications.
Can the LA36125 breaker be used in DC electrical systems?
Yes. This molded case circuit breaker is rated for use in 250VDC systems with a maximum interrupting capacity of 10 kAIC, making it suitable for industrial DC control circuits and battery systems.
What do the thermal and magnetic elements in the LA36125 trip unit control?
The fixed thermal element provides long-time protection against sustained overloads. The adjustable magnetic dial allows you to tune the instantaneous trip threshold for sudden short-circuit faults.
