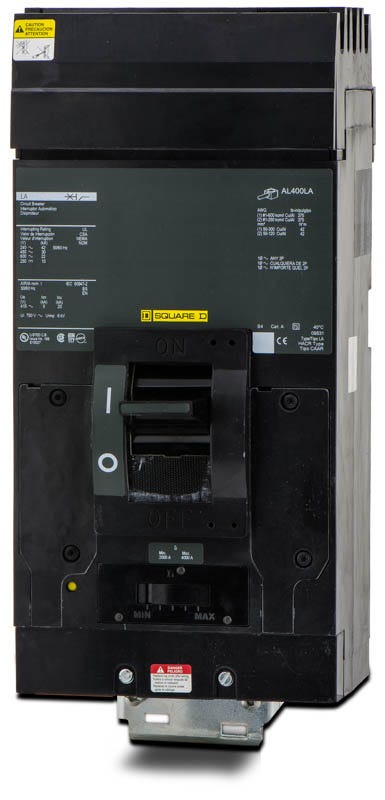

Square D LA36150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- I-Line
Square D
LA36150
Molded Case Circuit Breaker
Brand
Square D
SKU
LA36150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LA36150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LA36150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LA36150 |
| Series | LA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line Side Panel Connectors, Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D LA36150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LA36150-R |
| Series | LA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line Side Panel Connectors, Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy L-Frame series, the Square D LA36150 provides robust thermal-magnetic protection for commercial facilities. This 3-pole breaker installs into Square D I-Line panelboards and switchboards. It features a plug-on I-Line connection and load-side lugs. For modern upgrades, it is replaced by the PowerPacT J-Frame JJA36150. Rated for 150A and 600VAC, it delivers 30 kAIC at 480V. It includes an adjustable magnetic trip, HACR rating, and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | LA36150 |
| Series | LA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line Side Panel Connectors, Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panels are compatible with the LA36150 circuit breaker?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features a plug-on I-Line connection for the line side and mechanical lugs on the load side.
What is the modern replacement for the legacy LA36150?
The LA36150 is part of the legacy L-Frame series. For modern upgrades, it is typically replaced by 150A Square D PowerPacT H-Frame or J-Frame breakers. Note that transitioning to newer PowerPacT frames in older I-Line panels may require specific filler plates.
What replacement lugs are compatible with the LA36150?
This breaker uses AL400LA mechanical lugs. These lugs accept one 1 AWG to 600 kcmil aluminum or copper wire, or two 1 AWG to 250 kcmil aluminum or copper wires.
What is the adjustable magnetic trip range for the LA36150?
The adjustable magnetic trip on this 150A breaker can be set between 750A (Low) and 1500A (High). This allows electricians to fine-tune the instantaneous trip point for proper system coordination.
Is the Square D LA36150 HACR rated?
Yes, this breaker is HACR rated, making it suitable for group motor applications in heating, air conditioning, and refrigeration equipment.
Can the LA36150 I-Line breaker be reverse fed?
No. Square D I-Line circuit breakers have specific line and load orientations due to their plug-on jaw connections and are not suitable for reverse feeding.
