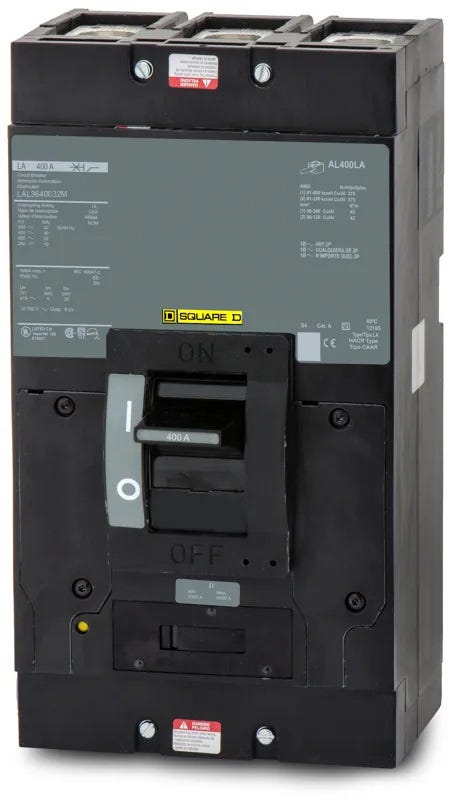

Square D LAL3640032M 3 Pole Circuit Breaker
Free Shipping Over $99

Square D LAL3640032M Motor Circuit Protector

  • 400A
  • 3 Pole
  • Unit Mount
Square D LAL3640032M
Motor Circuit Protector
Brand Square D
SKU LAL3640032M
Select Item Condition
Earn 1269 SuperPoints
  • 400A
  • 3 Pole
  • Unit Mount

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Square D LAL3640032M 3 Pole Circuit Breaker

Square D LAL3640032M - 400A 3 Pole Motor Circuit Protector

Re-Certified

$1,269.60 In Stock

Quantity

Similar Items

Description Specifications SuperClub Warranties Shipping Reviews 5.0 (7)

Description

Rated for 400A at 600VAC, this Square D Mag-Gard motor circuit protector delivers instantaneous short-circuit defense for industrial machinery. It is engineered to work alongside separate overload relays to provide complete motor branch circuit protection. The unit-mount L-Frame breaker fits standard motor control centers and NEMA enclosures. It serves as a replacement for legacy systems, with the LJL36400M38X acting as its modern substitute. Includes an adjustable 1250-2500A magnetic trip.

Specifications

Key specifications
Brand Square D
Part Number LAL3640032M
Series LAL
Amperage 400A
Poles 3
Mounting Style Unit Mount
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Phase 3
AIC Rating 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC
Fit and installation
Frame Type LAL
Terminal Type Lugs
For Use With Motor Starters, Motor Control Centers
Wire Gauge (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu)
Max Wire 600 kcmil
Min Wire 1 AWG
Protection and operation
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Lugs
Standards CSA C22.2 No. 14, IEC 60947-2, UL 489
Approval CSA, IEC, UL
Temp Rating 40C
Construction Features Mag-Gard, Adjustable Instantaneous Trip (1250-2500A), Motor Circuit Protector
