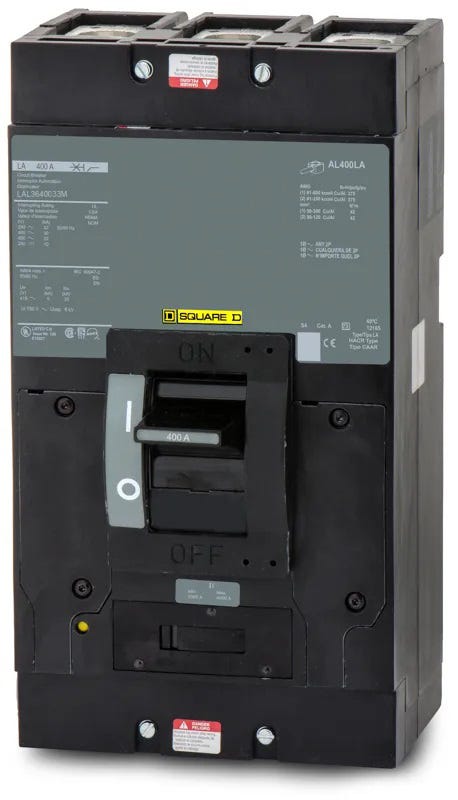

Square D LAL3640033M 3 Pole Circuit Breaker
Free Shipping Over $99

Square D LAL3640033M Motor Circuit Protector

  • 400A
  • 3 Pole
  • Unit Mount
Square D LAL3640033M
Motor Circuit Protector
Brand Square D
SKU LAL3640033M
Select Item Condition
Earn 2257 SuperPoints
  • 400A
  • 3 Pole
  • Unit Mount

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Square D LAL3640033M 3 Pole Circuit Breaker

Square D LAL3640033M - 400A 3 Pole Motor Circuit Protector

Re-Certified

$2,257.13 In Stock

Quantity

Similar Items

Description Specifications SuperClub Warranties Shipping Reviews 5.0 (7)

Description

Part of the legacy L-Frame series, this Square D motor circuit protector provides dedicated short-circuit defense for industrial motor applications. The 400A device coordinates with motor starters and overloads to prevent equipment damage during fault conditions. Designed for unit-mount installations, it integrates into motor control centers and is replaced by the newer LGL36400U33X. Equipped with Mag-Gard technology, it features an adjustable magnetic trip range of 1500A to 3000A.

Specifications

Key specifications
Brand Square D
Part Number LAL3640033M
Series LAL
Amperage 400A
Poles 3
Mounting Style Unit Mount
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Phase 3
AIC Rating 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC
Fit and installation
Frame Type LAL
Terminal Type Lugs
For Use With Motor Control Centers, Motor Starters
Wire Gauge (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu)
Max Wire 600 kcmil
Min Wire 1 AWG
Protection and operation
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Standards and features
Available Options Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch
Accessories Lugs (Line and Load)
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CE, CSA, IEC, UL
Temp Rating 40C
Construction Features Motor Circuit Protector, Mag-Gard, HACR Rated
