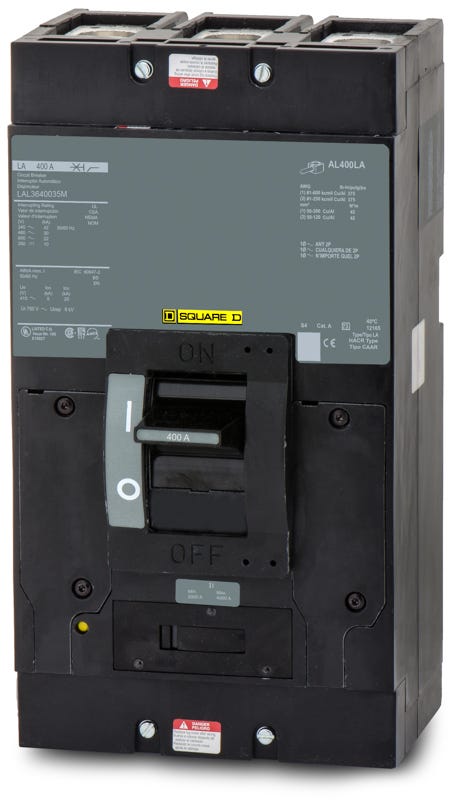

Square D LAL3640035M 3 Pole Circuit Breaker
Free Shipping Over $99

Square D LAL3640035M Motor Circuit Protector

  • 400A
  • 3 Pole
  • Unit Mount
Square D LAL3640035M
Motor Circuit Protector
Brand Square D
SKU LAL3640035M
Select Item Condition
Earn 1379 SuperPoints
  • 400A
  • 3 Pole
  • Unit Mount

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Square D LAL3640035M 3 Pole Circuit Breaker

Square D LAL3640035M - 400A 3 Pole Motor Circuit Protector

Re-Certified

$1,379.00 In Stock

Quantity

Similar Items

Description Specifications SuperClub Warranties Shipping Reviews 5.0 (7)

Description

Designed specifically for motor branch circuits, this 400A Square D protector provides instantaneous short-circuit defense. It operates in conjunction with motor starters and overload relays to deliver complete equipment safety. The unit-mount device fits into legacy motor control centers and is replaced by the PowerPacT LJL36400M38X model. Featuring Mag-Gard technology, it offers an adjustable magnetic trip range of 1750A to 3500A, allowing precise coordination with specific motor loads.

Specifications

Key specifications
Brand Square D
Part Number LAL3640035M-R
Series LAL
Amperage 400A
Poles 3
Mounting Style Unit Mount
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Phase 3
AIC Rating 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC
Fit and installation
Terminal Type Lugs
For Use With Motor Starters, Motor Control Centers
Wire Gauge (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu)
Max Wire 600 kcmil
Min Wire 1 AWG
Protection and operation
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Adjustable Magnetic Trip Unit (1750-3500A)
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CSA, IEC, UL
Temp Rating 40C
Construction Features Mag-Gard, Adjustable Instantaneous Trip (1750-3500A), Motor Circuit Protector
