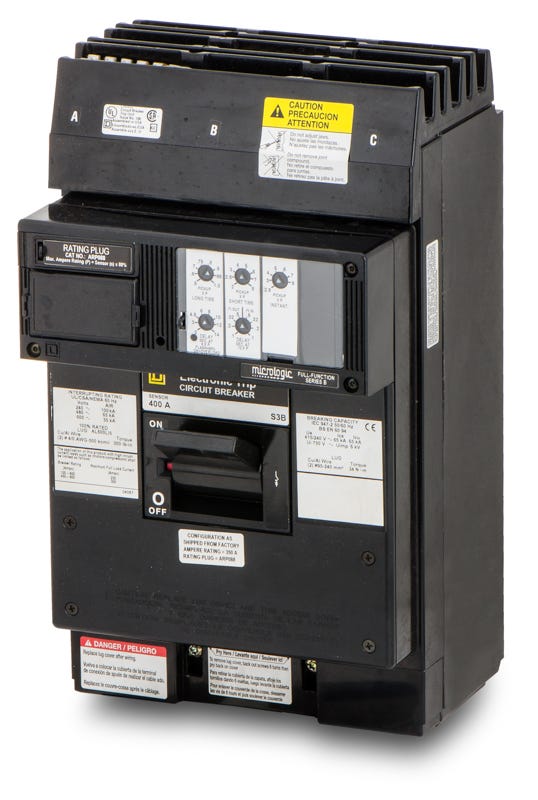

Square D LX36600 Molded Case Circuit Breaker
- 600A
- 3 Pole
- I-Line
Square D
LX36600
Molded Case Circuit Breaker
Brand
Square D
SKU
LX36600
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LX36600 - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D LX36600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LX36600 |
| Series | LX |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 300-600A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (2) 4/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
Quantity
Square D LX36600 - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LX36600 |
| Series | LX |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 300-600A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (2) 4/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
Similar Items
400A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D LX36600 is a 600A, 3-pole molded case circuit breaker. It delivers reliable solid-state protection for heavy-duty electrical systems. This legacy breaker mounts into Square D I-Line panelboards and switchboards. For new installations or upgrades, it is replaced by the PowerPact LJA36600U43X, which requires an HNM1BL filler plate to adapt the footprint.Specifications
| Brand | Square D |
|---|---|
| Part Number | LX36600 |
| Series | LX |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 300-600A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (2) 4/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhich panelboards are compatible with the LX36600 circuit breaker?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It utilizes a plug-in mounting style with jaws that engage directly with the I-Line bus stack.
What type of wire and gauge range is accepted by the lugs on the LX36600?
The factory lugs accept two conductors per phase, ranging from 4/0 AWG to 500 kcmil. You can terminate using either aluminum or copper wire.
How does the Micrologic Series B LSI trip unit function on this breaker?
The LSI designation means the electronic trip unit allows you to adjust the Long-Time, Short-Time, and Instantaneous trip settings. This provides precise coordination with other breakers in your electrical system compared to standard fixed thermal-magnetic units.
Is the LX36600 part of a current production series?
The LX series is classified as a legacy L-frame molded case circuit breaker. While newer PowerPact L-frame breakers are used in modern installations, the LX36600 remains a direct plug-in replacement for existing I-Line systems without requiring bus modifications.
Does the LX36600 require a separate mounting bracket for installation?
No. As an I-Line plug-in breaker, it features integrated mounting jaws that attach directly to the busbar assembly in I-Line panelboards, eliminating the need for separate mounting hardware or backpan drilling.
