Square D LX36600G Molded Case Circuit Breaker
- 600A
- 3 Pole
- I-Line
Square D
LX36600G
Molded Case Circuit Breaker
Brand
Square D
SKU
LX36600G
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

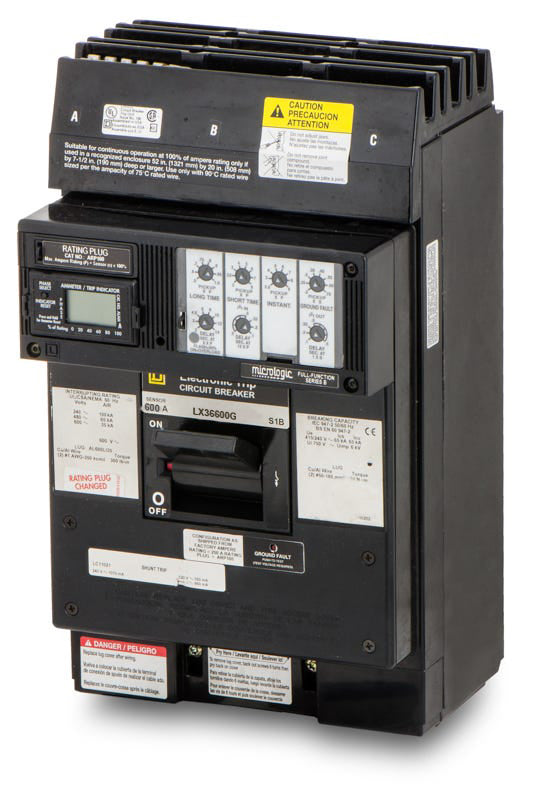

Square D LX36600G - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D LX36600G - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LX36600G |
| Series | LX |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 300-600A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (2) 4/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
Quantity
Square D LX36600G - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LX36600G |
| Series | LX |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 300-600A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (2) 4/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
Similar Items
400A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
A robust solution for commercial facilities, the Square D LX36600G is a 600A, 3-pole molded case circuit breaker. It delivers advanced solid-state protection for complex electrical distribution systems. This legacy breaker installs into Square D I-Line panelboards and switchboards. When upgrading, it is replaced by the PowerPact LJA36600U44X, which requires an HNM1BL filler plate to accommodate the modern frame size.Specifications
| Brand | Square D |
|---|---|
| Part Number | LX36600G |
| Series | LX |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 300-600A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (2) 4/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat is the modern replacement for the legacy Square D LX36600G circuit breaker?
The LX36600G is a legacy L-frame breaker. Its direct modern replacement is the Square D PowerPact LJA36600U44X. When upgrading to the PowerPact model in an existing I-Line panelboard, you will also need an HNM1BL filler plate to accommodate the newer frame size.
What specific protection does the G suffix in the LX36600G catalog number indicate?
The G indicates that the Micrologic electronic trip unit includes Ground Fault protection. This breaker features a complete LSIG trip profile, providing adjustable Long-Time, Short-Time, Instantaneous, and Ground Fault protection.
What type of wire connections are required for the load side of the LX36600G?
The load side is equipped with mechanical lugs that accept two conductors per phase. You can use either aluminum or copper wire ranging from 4/0 AWG to 500 kcmil.
How does the LX36600G connect to the panelboard bus?
It features an I-Line plug-in connection on the line side. The breaker jaws push directly onto the I-Line bus stack, eliminating the need for line-side wire terminations or bolted bus connections.
Can the trip settings on the LX36600G be customized for system coordination?
Yes, the solid-state Micrologic trip unit is adjustable. Electricians can modify the LSIG parameters to ensure proper selective coordination with downstream devices in the electrical distribution system.
Does the LX36600G provide equipment ground fault protection or personnel ground fault protection?
The LSIG trip unit provides equipment ground fault protection designed to protect the electrical system and machinery from damaging low-level faults. It is not a Class A GFCI device intended for personnel protection.
