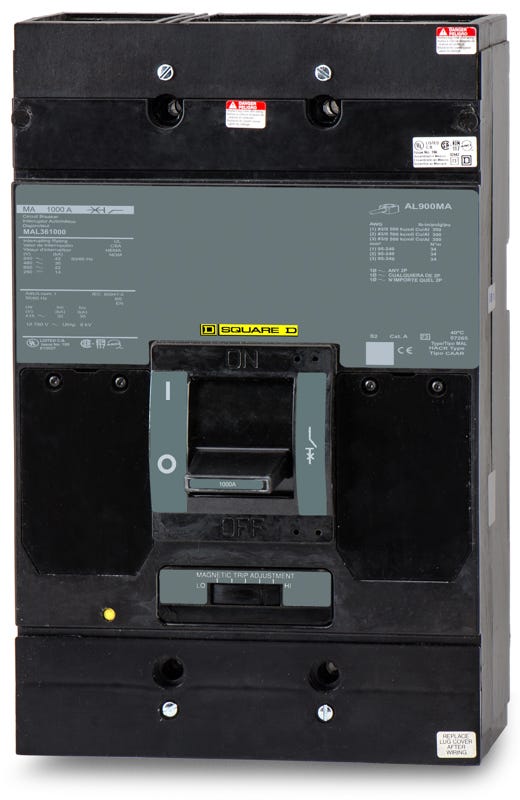

Square D MAL361000 Molded Case Circuit Breaker
- 1000A
- 3 Pole
- Unit Mount
Square D
MAL361000
Molded Case Circuit Breaker
Brand
Square D
SKU
MAL361000
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D MAL361000 - 1000A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D MAL361000 - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | MAL361000 |
| Series | MAL |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (4) 1/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL1000MA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Quantity
Square D MAL361000 - 1000A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | MAL361000-R |
| Series | MAL |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (4) 1/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL1000MA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
700A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
450A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty industrial applications, the Square D MAL361000 is a 3-pole, 1000A molded case circuit breaker. It features a thermal-magnetic trip unit with adjustable magnetic settings for precise long-time and instantaneous protection. This unit mount MCCB installs seamlessly into Square D switchboards, motor control centers, and enclosures. Rated for 42kAIC at 240VAC, this legacy M-Frame breaker ensures superior fault interruption and is replaced by the PGL36100U31A.Specifications
| Brand | Square D |
|---|---|
| Part Number | MAL361000-R |
| Series | MAL |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (4) 1/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL1000MA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat wire configuration is required for the MAL361000 terminal lugs?
The standard lugs require four separate 1/0 AWG to 350 kcmil aluminum or copper conductors per phase to safely distribute the 1000A load.
What panels or enclosures accept the MAL361000?
This unit-mounted breaker is designed for installation in Square D switchboards, motor control centers, and standalone enclosures. Because it is a feed-thru breaker, it cannot be installed in Square D I-Line panelboards, which require plug-on bus connections.
How does the thermal-magnetic trip unit function on this model?
It provides a fixed thermal trip for long-time overload protection and an adjustable magnetic trip dial, allowing electricians to tune the instantaneous short-circuit response based on specific application requirements.
Is the MAL361000 still the current standard for Square D 1000A breakers?
The MAL361000 is a legacy M-frame breaker commonly sourced to maintain and service existing equipment. For entirely new installations, Square D now standardizes on the PowerPacT P-frame series for 1000A applications.
How does the MAL361000 differ from the MHL361000?
Both are 1000A, 3-pole M-frame breakers, but they have different Ampere Interrupting Capacities (AIC). The MAL361000 is a standard-interrupting breaker rated at 30kAIC at 480V. The MHL361000 is a high-interrupting breaker rated at 65kAIC at 480V.
