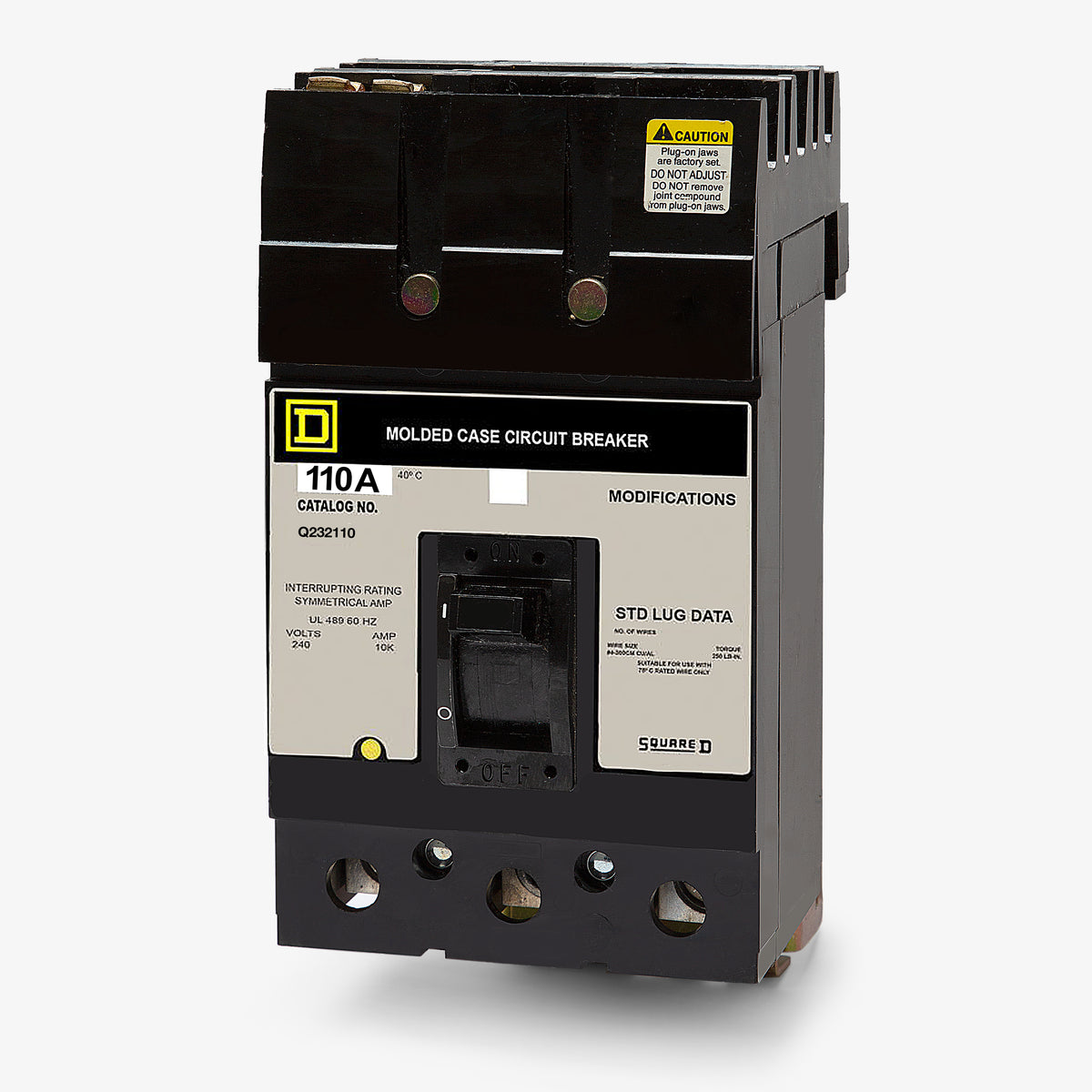

Square D Q232110 Molded Case Circuit Breaker
- 110A
- 3 Pole
- I-Line
Square D
Q232110
Molded Case Circuit Breaker
Brand
Square D
SKU
Q232110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q232110 - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy Q2 series, this 110-amp molded case circuit breaker delivers robust overcurrent protection for commercial and industrial electrical systems. It features fixed long-time and instantaneous trip functions. Designed specifically for Square D I-Line panelboards, the unit utilizes a plug-on phase connection for efficient installation. It serves as an exact match for older setups, though it has been superseded by the QBA32110.Specifications
| Brand | Square D |
|---|---|
| Series | Q2 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q232 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
5 answersWhat panelboards are compatible with the Square D Q232110?

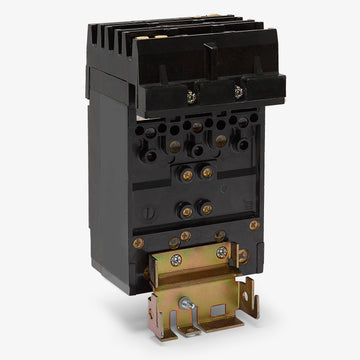

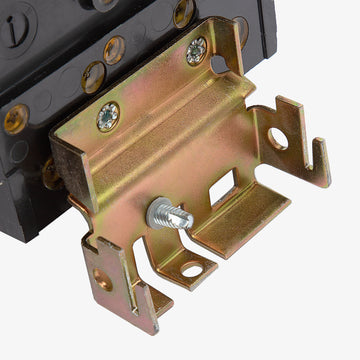

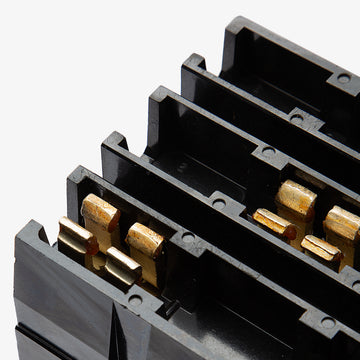

This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection for ABC phase configurations, allowing for efficient installation.
What is the modern replacement for the legacy Q232110 circuit breaker?
The Q232110 is a legacy Q2-series breaker that has been superseded by the PowerPact Q-frame series. The direct modern replacement is the QBA32110, which matches the 110A, 3-pole, 10kAIC rating and I-Line mounting.
What wire sizes and conductor materials are accepted by the Q232110 terminals?
The terminal lugs accept wire gauges ranging from 4 AWG to 300 kcmil. They are rated for use with both aluminum and copper conductors.
How does the thermal-magnetic trip unit on the Q232110 operate?
The breaker features a fixed thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions. The thermal component responds to sustained overloads, while the magnetic component reacts immediately to short-circuit faults.
What are the physical dimensions of the Q232110 Q-frame breaker?
The breaker measures approximately 7.88 inches high, 4.5 inches wide, and 4.31 inches deep. These dimensions are critical when verifying fitment in older I-Line distribution equipment.
