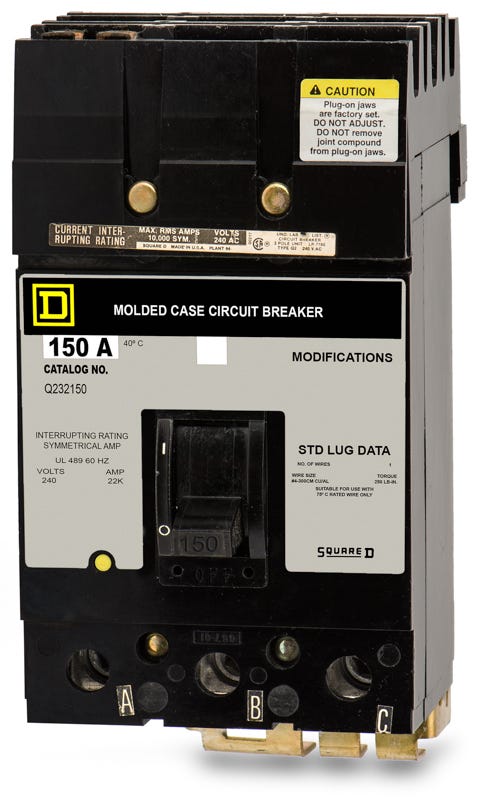

Square D Q232150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- I-Line
Square D
Q232150
Molded Case Circuit Breaker
Brand
Square D
SKU
Q232150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q232150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Part of the classic Q2 series, the Square D Q232150 provides reliable 150A, 3-pole power distribution for commercial applications. This molded case circuit breaker features standard thermal-magnetic trip units with long-time and instantaneous (LI) functions. Designed for Square D I-Line panelboards, it utilizes a plug-on phase connection. This unit is officially replaced by the newer QBA32150. Rated for 10kAIC at 240VAC, it includes a Visi-Trip indicator for quick fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q232150-R |
| Series | Q2 |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | I-Line Jaws |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
5 answersCan I install the Q232150 in a modern I-Line panelboard?
Yes, Square D maintains backward compatibility for its I-Line bus system. This legacy Q2 frame breaker can be installed in both older and current generation I-Line panelboards and switchboards.
What is the modern replacement for the legacy Q232150 breaker?
The Square D Q2 series is a legacy frame that is no longer in active production. When upgrading equipment, Square D recommends the newer PowerPacT Q-Frame I-Line circuit breakers, such as the QBA32150, as the modern functional equivalent.
What is the required tightening torque for the load lugs on the Q232150?
The load terminals on this breaker accept 4 AWG to 300 kcmil copper or aluminum conductors and should be torqued to 250 lb-in during installation.
How does the LI trip unit on this breaker operate?
The Q232150 uses a fixed thermal-magnetic trip unit with Long-Time (L) and Instantaneous (I) functions. The thermal element provides delayed tripping for mild overloads, while the magnetic element trips instantaneously under severe short-circuit conditions.
Does the Q232150 include visual trip indication?
Yes, this model features the Square D Visi-Trip indicator. When a fault causes the breaker to trip, a high-visibility red indicator appears in the breaker window, allowing electricians to quickly locate the tripped circuit inside a crowded panel.
