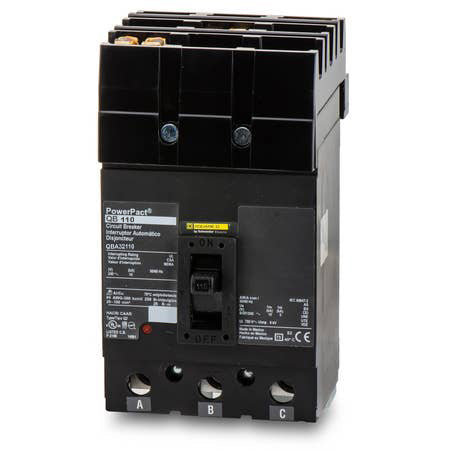

Square D QBA32110 Molded Case Circuit Breaker
- 110A
- 3 Pole
- I-Line
Square D
QBA32110
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA32110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBA32110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBA32110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA32110 |
| Series | QBA |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Phase Connection ABC |
Sold out
Quantity
Square D QBA32110 - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QBA |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Phase Connection ABC |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D QBA32110 is a 3-pole, 110A molded case circuit breaker from the PowerPacT Q-Frame family. It provides thermal-magnetic protection with long-time and instantaneous (LI) trip functions. This unit installs into Square D I-Line panelboards and switchboards, utilizing a plug-on mounting style. It serves as a drop-in replacement for legacy Q23110 breakers. Rated for 10kAIC at 240VAC, it features a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBA32110 |
| Series | QBA |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Phase Connection ABC |
Product FAQs
7 answersWhat panelboards are compatible with the QBA32110 circuit breaker?
This breaker features an I-Line style plug-in connection and is designed exclusively for use in Square D I-Line panelboards and switchboards. It is not compatible with standard QO, Homeline, or NQ panelboards.
Can the QBA32110 replace older Square D circuit breakers?
Yes, the PowerPacT Q-frame QBA32110 serves as a direct drop-in replacement for legacy Square D Q23110 breakers previously used in I-Line panelboards.
What does the B in the QBA32110 part number signify?
The B indicates the interrupting rating tier for this PowerPacT Q-frame breaker, which is 10 kA at 240 VAC. If your system requires a higher fault current rating, you must upgrade to a QDA (25 kA), QGA (65 kA), or QJA (100 kA) breaker.
Are the lugs on the QBA32110 rated for both aluminum and copper wire?
Yes, the factory-installed lugs are AL/CU rated, accepting either aluminum or copper conductors from 4 AWG up to 300 kcmil.
Does the QBA32110 require a separate mounting kit for installation?
No, this breaker features an integrated I-Line plug-on bracket that engages directly with the busbar stack in an I-Line panelboard, requiring no additional mounting hardware or sub-feed lug kits.
Can I use the QBA32110 on a 480V or 600V electrical system?
No, the PowerPacT Q-frame series is rated for a maximum of 240 VAC. It cannot be used in 480V or 600V applications. For higher voltage systems, a different frame size like the H-frame or J-frame is required.
How does the QBA32110 indicate a tripped condition?
The breaker features a center-tripped handle position that provides a clear visual indication when the thermal-magnetic trip unit has operated due to an overload or short-circuit fault.
