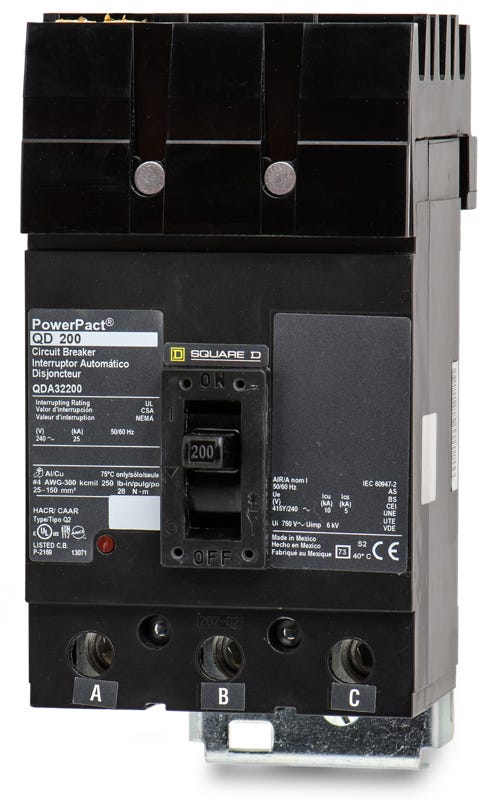

Square D QDA32200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- I-Line
Square D
QDA32200
Molded Case Circuit Breaker
Brand
Square D
SKU
QDA32200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDA32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDA32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDA32200 |
| Series | QDA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Quantity
Square D QDA32200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDA32200-R |
| Series | QDA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial environments, this 200A, 3-pole MCCB delivers dependable thermal-magnetic protection. The Square D QDA32200 is part of the proven PowerPacT Q-Frame lineup, designed to handle demanding electrical loads. Designed for quick installation, it plugs into Square D I-Line panelboards and switchboards. Facility managers can also use this model to replace older Q23200 breakers during system maintenance.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDA32200 |
| Series | QDA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Product FAQs
6 answersWhich panelboards accept the QDA32200 circuit breaker?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards [1.4.4]. It uses a plug-on bracket connection for the line-side bus and features mechanical lugs on the load side.
What is the required tightening torque for the load lugs?
The mechanical load lugs accept 4 AWG to 300 kcmil aluminum or copper wire and must be tightened to 247.8 lb-in (28 N.m).
How much I-Line mounting space does this breaker require?
As a 3-pole PowerPacT Q-Frame breaker, the QDA32200 requires 4.5 inches of vertical mounting space within an I-Line panelboard or switchboard.
What is the difference between QBA, QDA, QGA, and QJA breakers?
These prefixes indicate the maximum interrupting rating of the PowerPacT Q-Frame series at 240VAC. QBA is rated for 10 kA, QDA for 25 kA, QGA for 65 kA, and QJA for 100 kA.
Can the trip settings be adjusted on this model?
No. This unit features a thermal-magnetic trip mechanism that is entirely factory-fixed. Neither the long-time (thermal) nor the instantaneous (magnetic) trip functions can be field-adjusted.
How can I manually test the mechanical operation of the breaker?
The QDA32200 includes an integral push-to-trip button located on the front cover. Pressing this button manually trips the breaker mechanism to verify that it is functioning correctly.
