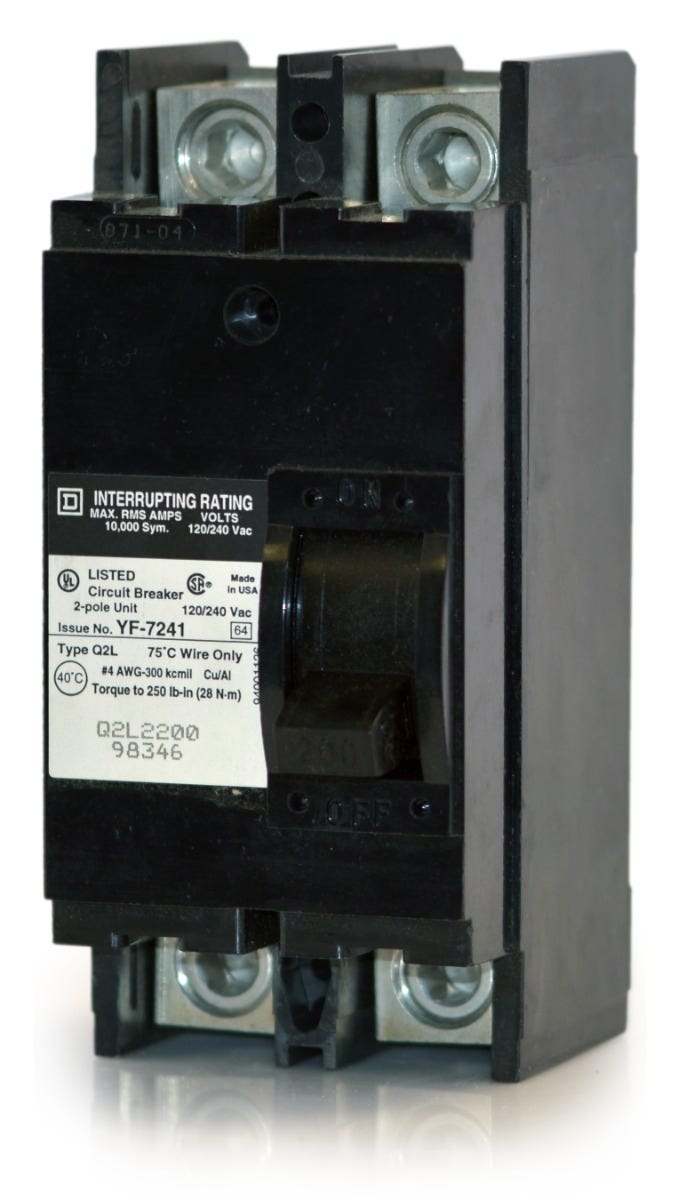

Square D Q2L2200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Unit Mount
Square D
Q2L2200
Molded Case Circuit Breaker
Brand
Square D
SKU
Q2L2200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q2L2200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D Q2L2200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | Q2L2200 |
| Series | Q2L |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q2L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, HACR Rated |
Quantity
Square D Q2L2200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | Q2L2200 |
| Series | Q2L |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q2L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, HACR Rated |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
Providing robust 200A capacity, the Square D Q2L2200 is a 2-pole legacy Q-Frame MCCB for 120/240VAC systems. Designed for unit mounting, it installs into Square D individual enclosures and NQOD panelboards. While the QBL22200 is the current substitute, utilizing this exact Q2L breaker preserves the original UL listing of legacy NQOD panels. It features a 10kAIC rating and fixed thermal-magnetic trip technology for LI protection. The unit includes a Visi-Trip indicator and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q2L2200 |
| Series | Q2L |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q2L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, HACR Rated |
Product FAQs
5 answersWhat types of panelboards are compatible with the Q2L2200?
This legacy Q-Frame breaker is designed for unit mounting in older Square D NQOD panelboards, switchboards, and individual enclosures. It is not intended for modern NQ series panels.
What is the modern replacement for the Q2L2200?
The current substitute is the PowerPact QBL22200. However, utilizing the exact Q2L2200 breaker is often preferred to preserve the original UL listing of legacy NQOD panels.
How is the Q2L2200 installed in an enclosure?
This is a unit-mount, feed-thru circuit breaker. It bolts directly to the backpan of the enclosure or panelboard and utilizes factory-installed lugs on both the line and load sides for wire connections rather than plugging onto a busbar.
Is the Q2L2200 rated for HVAC applications?
Yes, this circuit breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment.
How can I tell if the Q2L2200 has tripped?
The breaker features a Visi-Trip indicator, which provides immediate visual confirmation when the breaker has tripped due to an overload or short circuit.
