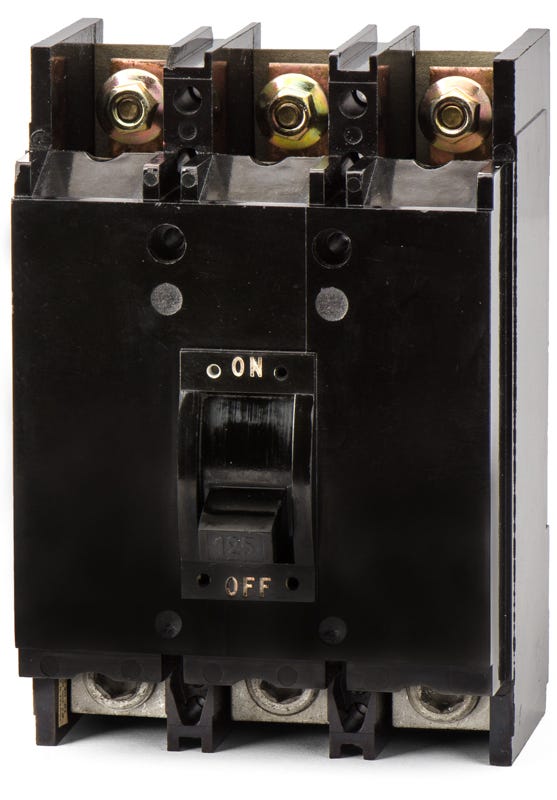

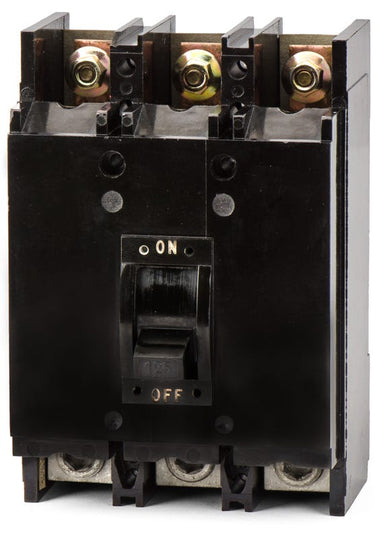

Square D Q2M3125MB Molded Case Circuit Breaker
- 125A
- 3 Pole
- Bolt-On
Square D
Q2M3125MB
Molded Case Circuit Breaker
Brand
Square D
SKU
Q2M3125MB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q2M3125MB - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Supplying 125A of thermal-magnetic protection, the Square D Q2M3125MB is a three-phase molded case circuit breaker engineered for demanding commercial applications. It utilizes fixed thermal and magnetic trip elements for consistent performance. The breaker bolts securely into Square D switchboards and panelboards. Facilities upgrading their equipment can use the QDL32125 as a modern replacement. Rated for 10kAIC at 240VAC, it includes a Visi-Trip indicator to quickly identify tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q2M3125MB-R |
| Series | Q2 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Main Breaker |
Product FAQs
4 answersWhat type of panels accept the Q2M3125MB?
This breaker is designed specifically to bolt into legacy Square D panelboards and switchboards. It is commonly used as a main breaker or sub-feed in these commercial enclosures.
What is the modern replacement for the legacy Q2M3125MB?
The Q2 series is a legacy frame. Facilities upgrading their equipment can use the Square D PowerPact QDL32125 as a modern replacement.
Does this breaker include a visual trip indicator?
Yes, it is equipped with a Visi-Trip indicator. This feature provides a clear visual cue when the breaker has tripped, making it easier to identify faults in a crowded panelboard.
Is the Q2M3125MB rated for 100 percent continuous duty?
No, like most standard molded case circuit breakers, it carries an 80 percent continuous current rating. Continuous loads on this 125A breaker should not exceed 100 amps.
