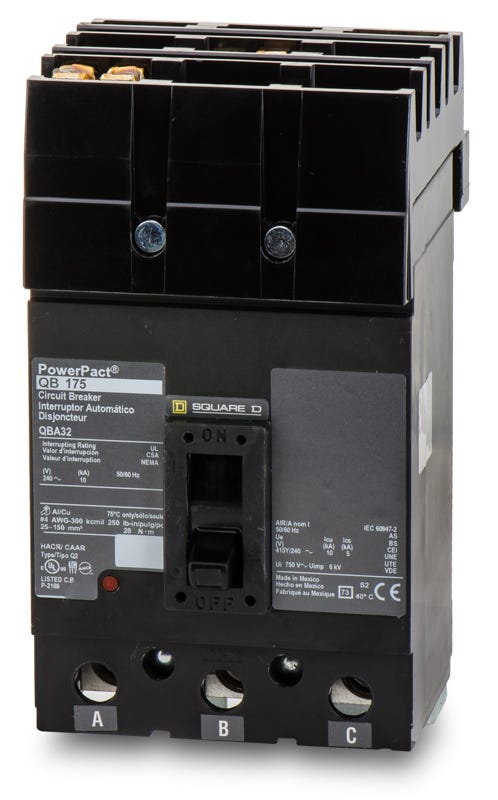

Square D QBA32175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- I-Line
Square D
QBA32175
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA32175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBA32175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBA32175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | QBA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D QBA32175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QBA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 175A PowerPacT Q-Frame breaker provides reliable thermal-magnetic protection. It installs into Square D I-Line panelboards and switchboards, serving as a modern substitute for legacy Q23175 components. The ABC phase connection ensures proper alignment during installation. Rated for 10kAIC at 240VAC, the unit features fixed long-time and instantaneous trip functions alongside a Visi-Trip indicator for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Series | QBA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersDoes the QBA32175 replace older Square D circuit breakers?
Yes, the PowerPacT Q-Frame circuit breaker line is designed as a direct replacement for legacy Square D Q2 series devices. It will mount directly into existing I-Line panelboards and switchboards.
How are the line and load connections configured on this breaker?
The line side features an I-Line plug-on jaw connection that mounts directly to the panel bus. The load side includes factory-installed mechanical lugs that accept 4 AWG to 300 kcmil aluminum or copper conductors.
What is the phase connection for the line side of this breaker?
This specific catalog number features a standard ABC phase jaw configuration for connecting to the I-Line bus.
Can the QBA32175 be installed in 480V electrical systems?
No, this breaker has a maximum system voltage rating of 240VAC and is not suitable for 480V or 600V distribution systems.
What are the cross-reference part numbers for higher interrupting ratings?
If your system requires a fault rating higher than 10kAIC at 240VAC, alternate PowerPacT Q-Frame breakers are available. The QDA32175 is rated for 25kAIC, and the QGA32175 is rated for 65kAIC at 240VAC.
