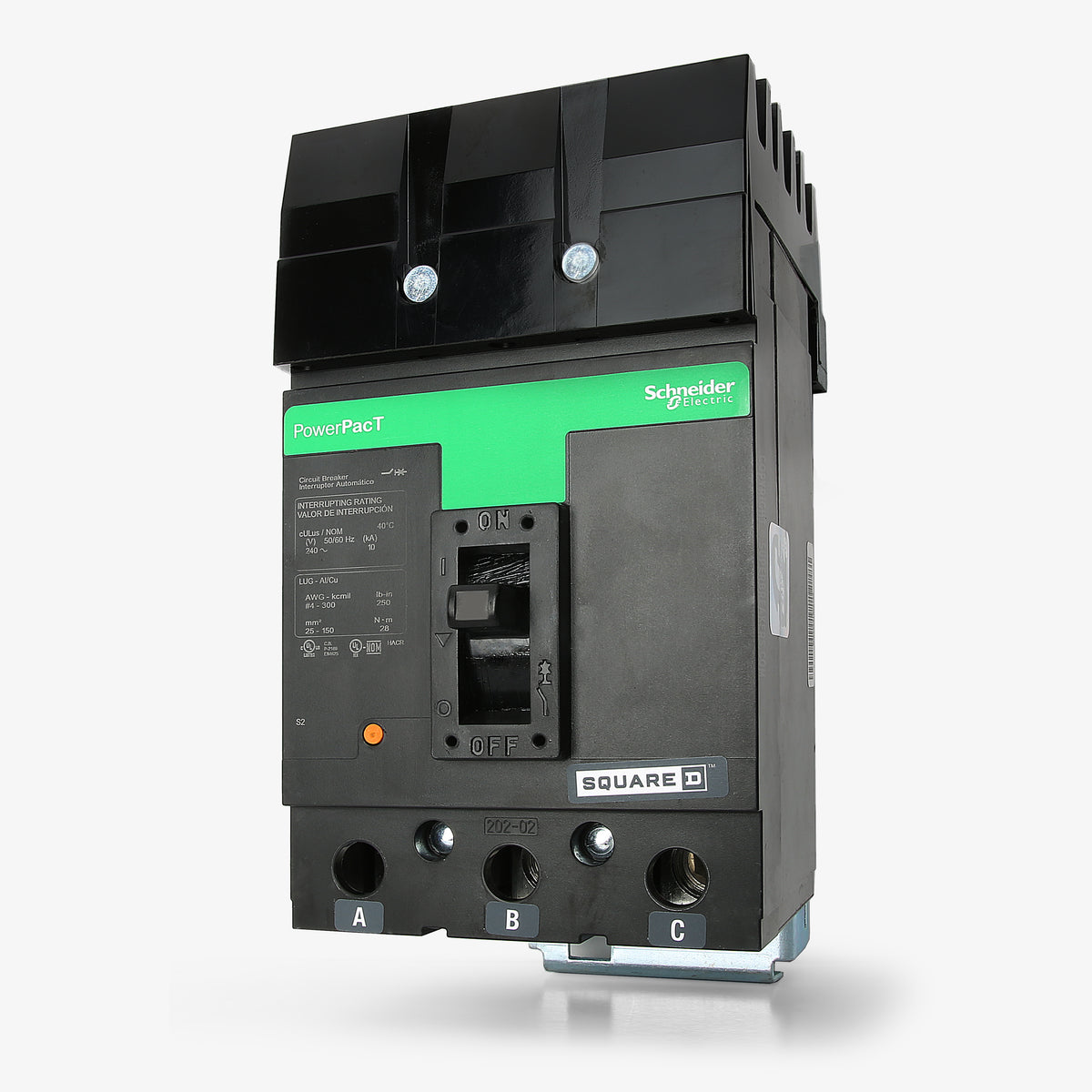

Square D QBA32125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- I-Line
Square D
QBA32125
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA32125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBA32125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBA32125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | QBA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Phase Connection ABC |
Quantity
Square D QBA32125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QBA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Phase Connection ABC |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
The Square D QBA32125 is a 3-pole, 125A molded case circuit breaker designed for commercial and industrial power distribution. It features a thermal-magnetic trip unit that provides fixed long-time and instantaneous (LI) protection. This Q-Frame breaker installs into Square D I-Line panelboards and switchboards. It serves as a drop-in replacement for the legacy Q23125 and is an alternative to QDA32125 models. Operating at 240VAC, it delivers a 10kAIC rating and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | QBA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Phase Connection ABC |
Product FAQs
6 answersWhich panelboards are compatible with the Square D QBA32125 breaker?

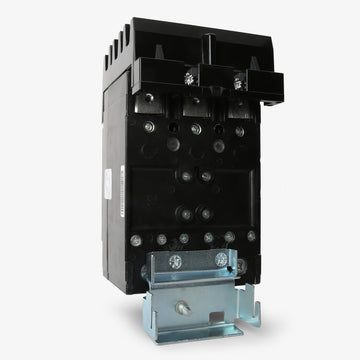

The QBA32125 features an I-Line plug-on configuration on the line side and is designed exclusively for installation in Square D I-Line panelboards and switchboards.

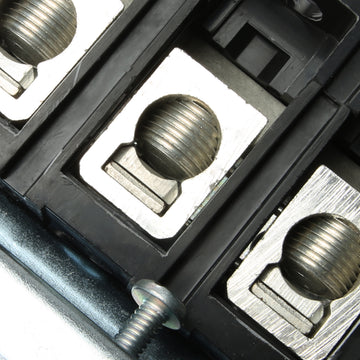

What is the recommended terminal torque for the load lugs on the QBA32125?
The factory-installed load lugs on this 125A Q-frame breaker require a tightening torque of 248 lb-in (28 N.m) for both aluminum and copper conductors.
What are the magnetic trip settings for the QBA32125?
This thermal-magnetic circuit breaker features a fixed magnetic hold current of 1200A and a magnetic tripping current of 2400A.
Is the QBA32125 breaker rated for 100 percent continuous load?
No, standard PowerPacT Q-frame breakers, including the QBA32125, carry an 80 percent continuous current rating.
Does the QBA32125 replace any legacy Square D circuit breakers?
Yes, PowerPacT Q-frame circuit breakers serve as direct replacements for older Square D Q2 series breakers previously used in I-Line panels.
Are there direct replacements for the QBA32125 with higher interrupting capacity?
Yes. If your application requires a higher fault rating than the 10kAIC provided by the QBA32125, you can use the QDA32125 (25kAIC), QGA32125 (65kAIC), or QJA32125 (100kAIC). These variants share the exact same physical footprint and I-Line mounting.
