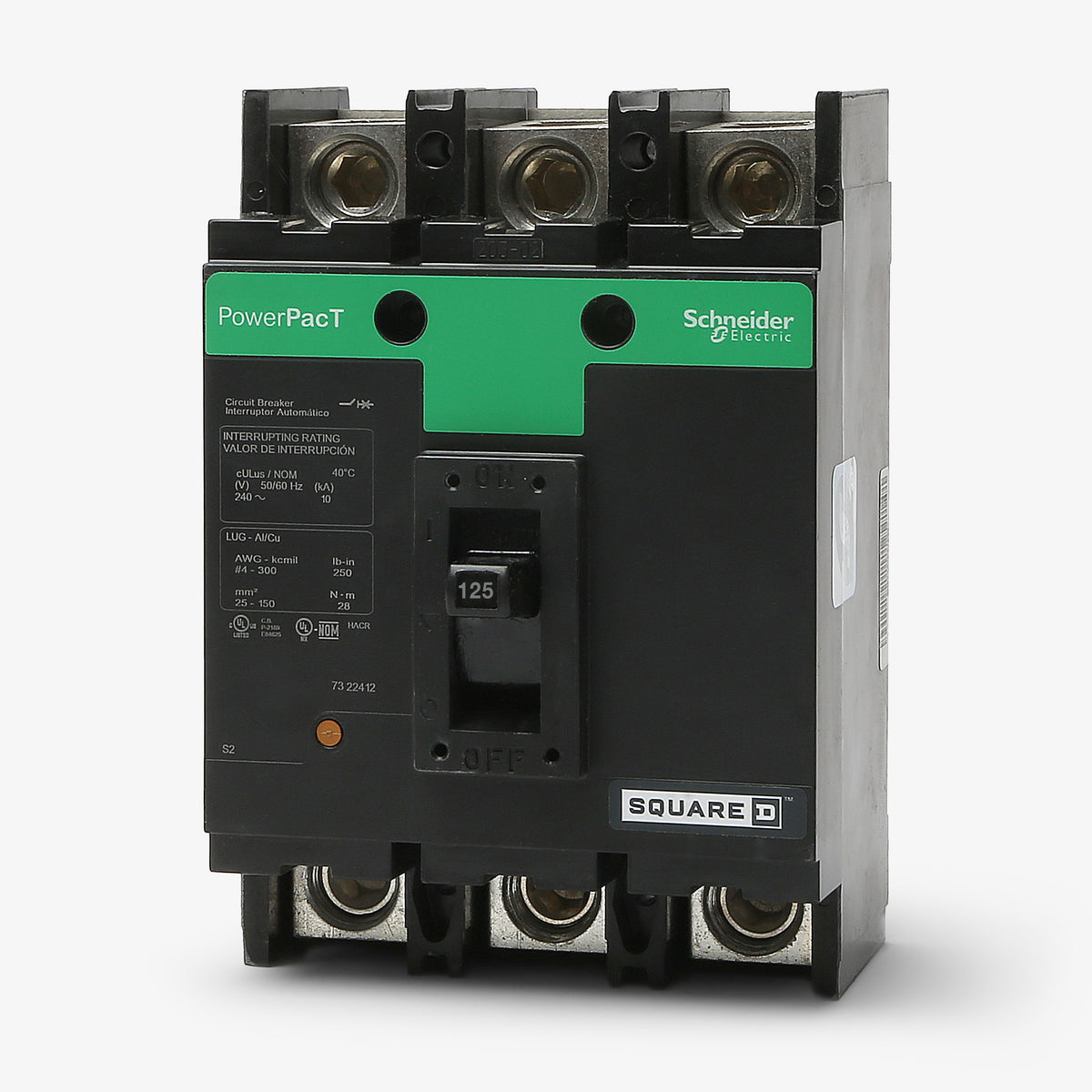

Square D QBL32125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Square D
QBL32125
Molded Case Circuit Breaker
Brand
Square D
SKU
QBL32125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBL32125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBL32125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBL32125 |
| Series | QBL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Individual Enclosures, Switchboards, Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Quantity
Square D QBL32125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBL32125-R |
| Series | QBL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Individual Enclosures, Switchboards, Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Part of the PowerPacT family, the Square D QBL32125 is a 3-pole, 125A molded case circuit breaker built for commercial power distribution. It features a unit mount design with included lugs, making it compatible with Square D individual enclosures and switchboards. This breaker acts as a direct substitute for the legacy Q23125 model. The thermal-magnetic trip mechanism offers fixed long-time and instantaneous protection. Rated at 10kAIC for 240VAC systems, it includes the Visi-Trip feature.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBL32125 |
| Series | QBL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Individual Enclosures, Switchboards, Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
7 answersWhich legacy Square D breaker does the QBL32125 replace?
The QBL32125 serves as a direct replacement for obsolete Q2 Series devices, specifically the Q23125 molded case circuit breaker.
How is the QBL32125 installed in a panel?

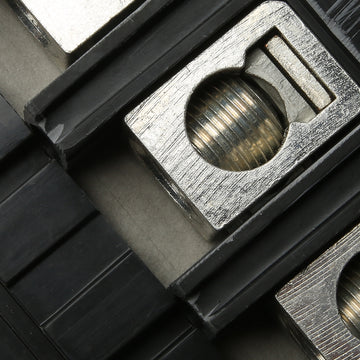

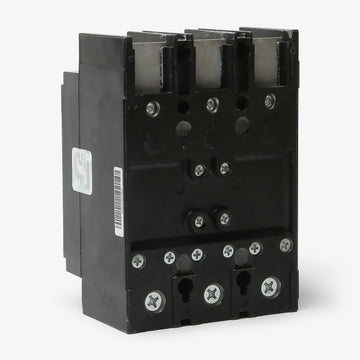

This is a unit-mount circuit breaker that secures directly to the panelboard or switchboard chassis. It includes factory-installed lugs on both the line and load sides for direct cable connections.
Will the QBL32125 fit in an I-Line panelboard?
No, the QBL32125 is a unit-mount breaker designed for individual enclosures or standard panelboards. For I-Line group-mounted applications, a different PowerPacT Q-frame breaker configuration with plug-on jaws is required.
Can I use aluminum wire with the QBL32125?

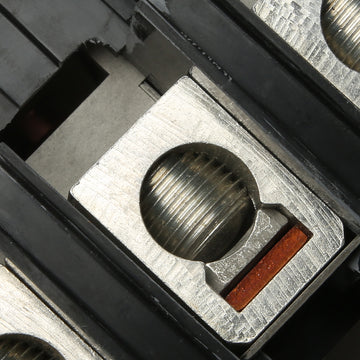

Yes, the factory-installed lugs are dual-rated for both aluminum and copper conductors ranging from 4 AWG to 300 kcmil.
Are the trip settings adjustable on the QBL32125?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory set and non-interchangeable.
Is the QBL32125 rated for 100 percent continuous duty?
No, this circuit breaker carries a standard continuous current rating of 80 percent.
How can I manually test the trip mechanism on the QBL32125?
This PowerPacT Q-frame breaker features an integral push-to-trip button on the front cover, allowing electricians to manually trip the breaker to verify mechanical operation.
