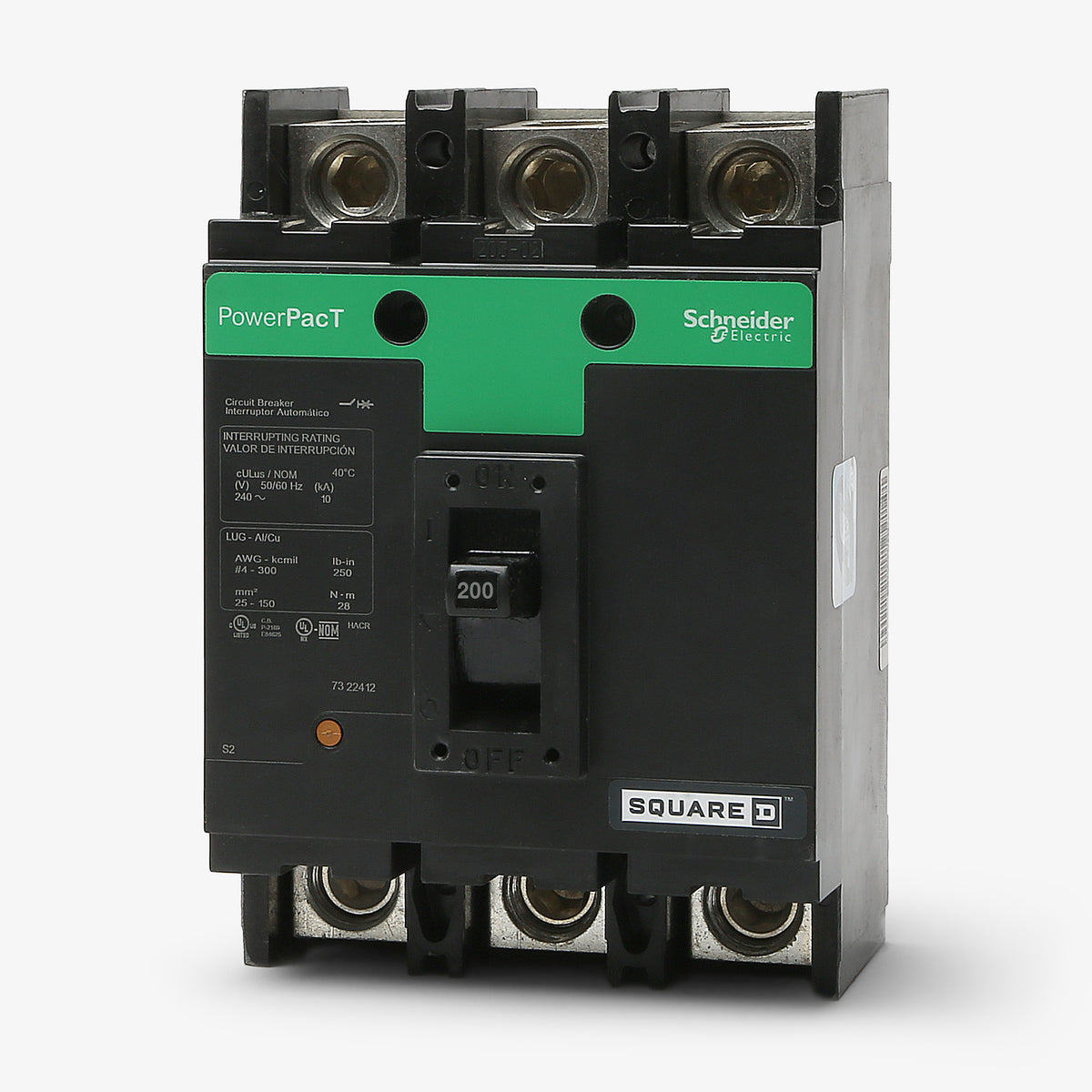

Square D QBL32200 Molded Case Circuit Breaker

The difference is the short circuit interrupting rating at 240VAC. The QBL32200 is rated for 10kAIC. The QDL is rated for 25kAIC, the QGL for 65kAIC, and the QJL for 100kAIC. They all share the same physical dimensions and Q-frame mounting footprint.

This unit mount circuit breaker is designed for Square D Q2 enclosures, as well as specific switchboards and control panels. It can also be installed as a main or sub-feed breaker in NQ panelboards when using the appropriate field-installable adapter kit.

No, internal electrical accessories like shunt trips or auxiliary switches are not field installable for PowerPacT Q-frame circuit breakers. They must be factory installed. However, mechanical accessories like handle padlocks can be added in the field.

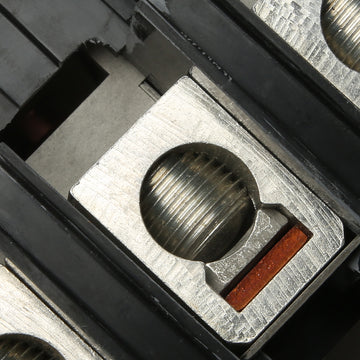

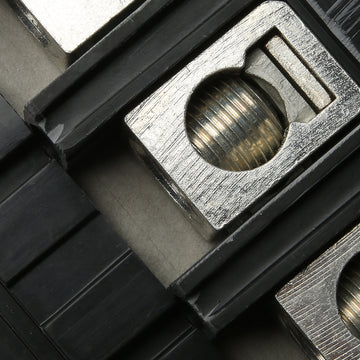

No, replacement lugs and electrical accessories are not available for PowerPacT Q-frame circuit breakers. The factory-installed box lugs accept 4 AWG to 300 kcmil aluminum or copper wire.

No, this is a traditional thermal magnetic breaker with fixed long-time and instantaneous trip elements. It does not offer dial-adjustable trip settings or MicroLogic electronic trip functions.

No, the QBL32200 is a unit mount, feed-thru circuit breaker with lugs on both ends. If you need a breaker for an I-Line panelboard, you must select an I-Line specific model, which typically features an A or E suffix instead of an L.

You can use a field-installable handle padlocking device, such as the Square D QBPAF, which locks the circuit breaker handle securely in the OFF position to meet lockout and tagout safety requirements.

No, the QBL32200 is available in the standard 80 percent rating only. For continuous loads lasting three hours or more, the load must not exceed 160 amps, which is 80 percent of its 200A maximum rating.
