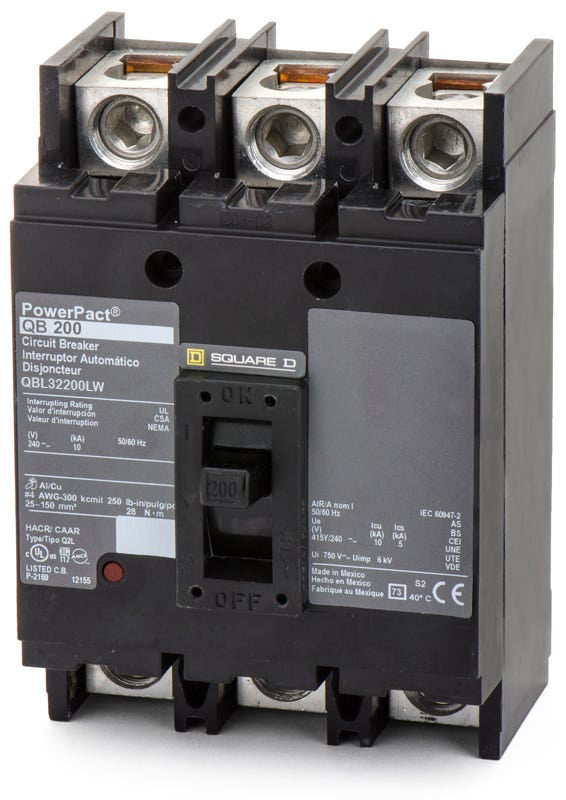

Square D QBL32200LW Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Square D
QBL32200LW
Molded Case Circuit Breaker
Brand
Square D
SKU
QBL32200LW
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBL32200LW - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
225A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Square D QBL32200LW is a 200A, 3-pole molded case circuit breaker. It provides reliable thermal-magnetic overcurrent protection for heavy-duty electrical systems. This unit-mount MCCB installs into Square D individual enclosures, switchboards, and panelboards. It serves as a direct replacement for legacy Q23200 breakers. Rated for 10kA at 240VAC, this Q-Frame breaker includes factory-installed control wire terminals and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBL32200LW |
| Series | QBL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Control Wire Terminal |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
8 answersWhat does the LW suffix indicate on the QBL32200LW catalog number?
The LW suffix designates that this breaker includes factory-installed control wire terminals on both the ON (line) and OFF (load) ends.
Can the QBL32200LW replace older Square D 200A breakers?
Yes, this PowerPacT Q-Frame breaker serves as a direct replacement for legacy Q23200 series circuit breakers.
What enclosures and panels accept the QBL32200LW breaker?
This unit-mount Q-Frame breaker is designed for installation in Square D individual enclosures, switchboards, and panelboards.
What wire sizes and materials are supported by the lugs on this 200A breaker?
The factory-installed lugs accept 4 AWG to 300 kcmil aluminum or copper conductors.
Is the QBL32200LW suitable for systems requiring high interrupting capacity?
This specific QBL model has a standard interrupting rating of 10kA at 240VAC. If your system requires a higher fault current rating, you will need to upgrade to the QDL (25kA), QGL (65kA), or QJL (100kA) series breakers.
How is the QBL32200LW mounted in a panel?
It features a unit-mount, feed-thru configuration. This means it bolts directly to the backpan or mounting surface rather than plugging onto a busbar or using an I-Line connection.
Does this breaker include a visual trip indicator?
Yes, it features a Visi-Trip indicator that provides clear visual confirmation when the breaker has tripped due to an overcurrent or short-circuit event.
What type of trip unit is installed in the QBL32200LW?
It utilizes a fixed thermal-magnetic trip unit with Long-Time (L) and Instantaneous (I) functions to protect against overloads and short circuits. Both the thermal and magnetic trip points are fixed and non-interchangeable.
