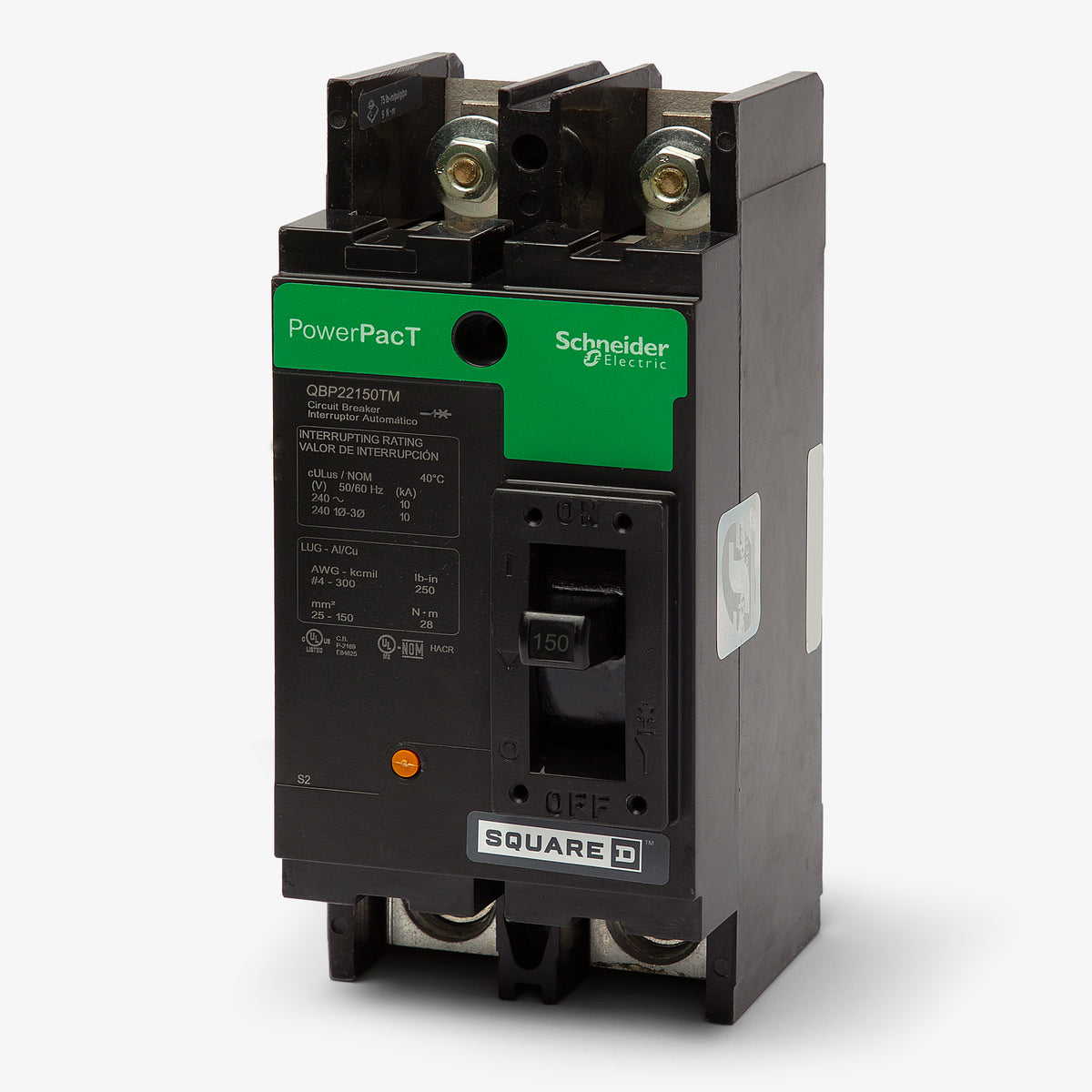

Square D QBP22150TM Molded Case Circuit Breaker
- 150A
- 2 Pole
- Unit Mount
Square D
QBP22150TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP22150TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBP22150TM - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBP22150TM - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBP22150TM |
| Series | QBP |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Meter Centers, EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Mounting Nuts/Washers |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Quantity
Square D QBP22150TM - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QBP |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Meter Centers, EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Mounting Nuts/Washers |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Similar Items
125A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
A high-capacity solution for metering centers, the Square D QBP22150TM is a 150A, 2-pole molded case circuit breaker. It utilizes fixed thermal-magnetic trip technology to provide dependable protection with a 10kAIC rating at 240VAC. This unit mount breaker is engineered to fit Square D Meter-Pak and EZ Meter-Pak enclosures. It can also be used to replace the older Q22150 model. The Q-Frame breaker features a Visi-Trip indicator for rapid fault detection and comes complete with load side lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP22150TM |
| Series | QBP |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Meter Centers, EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Mounting Nuts/Washers |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Product FAQs
8 answersWhat equipment is the QBP22150TM designed to be installed in?
This breaker is primarily used as a tenant main circuit breaker in Square D EZ Meter-Pak and standard Meter-Pak multi-metering centers that accept 225A maximum branch units.
What type of terminal connections does the QBP22150TM feature?
This breaker features a specialized connection configuration. The line side (ON end) uses 1/4-20 studs with terminal nuts, while the load side (OFF end) is equipped with standard mechanical wire lugs.
What is the recommended tightening torque for the load side lugs?
The load side wire lugs should be torqued to 247.8 lb-in (28 N.m) for proper installation.
What is the recommended wire stripping length for the load terminals?
The recommended wire stripping length for the load side lugs is 0.9 inches.
What legacy circuit breaker does the QBP22150TM replace?
The QBP22150TM is a direct replacement for the obsolete Square D Q2M2150 tenant circuit breaker.
What is the difference between the QBP22150TM and the QDP22150TM?
The difference is the short circuit interrupting rating. The QBP series is rated for 10 kAIC at 240VAC, while the QDP series offers a higher 25 kAIC rating. Both share the same physical dimensions and PowerPacT Q-frame footprint.
What are the magnetic trip and hold currents for this breaker?
The QBP22150TM has a fixed magnetic hold current of 1200A and a magnetic tripping current of 2400A.
Is the QBP22150TM rated for 80 percent or 100 percent continuous current?
This breaker carries a standard 80 percent continuous current rating.
