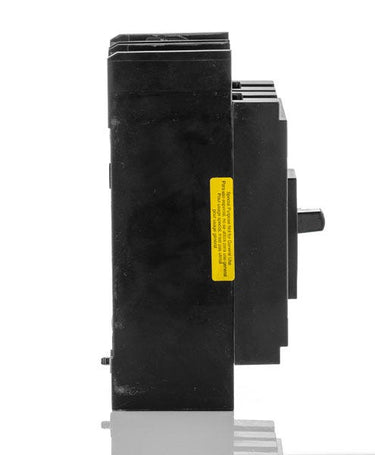

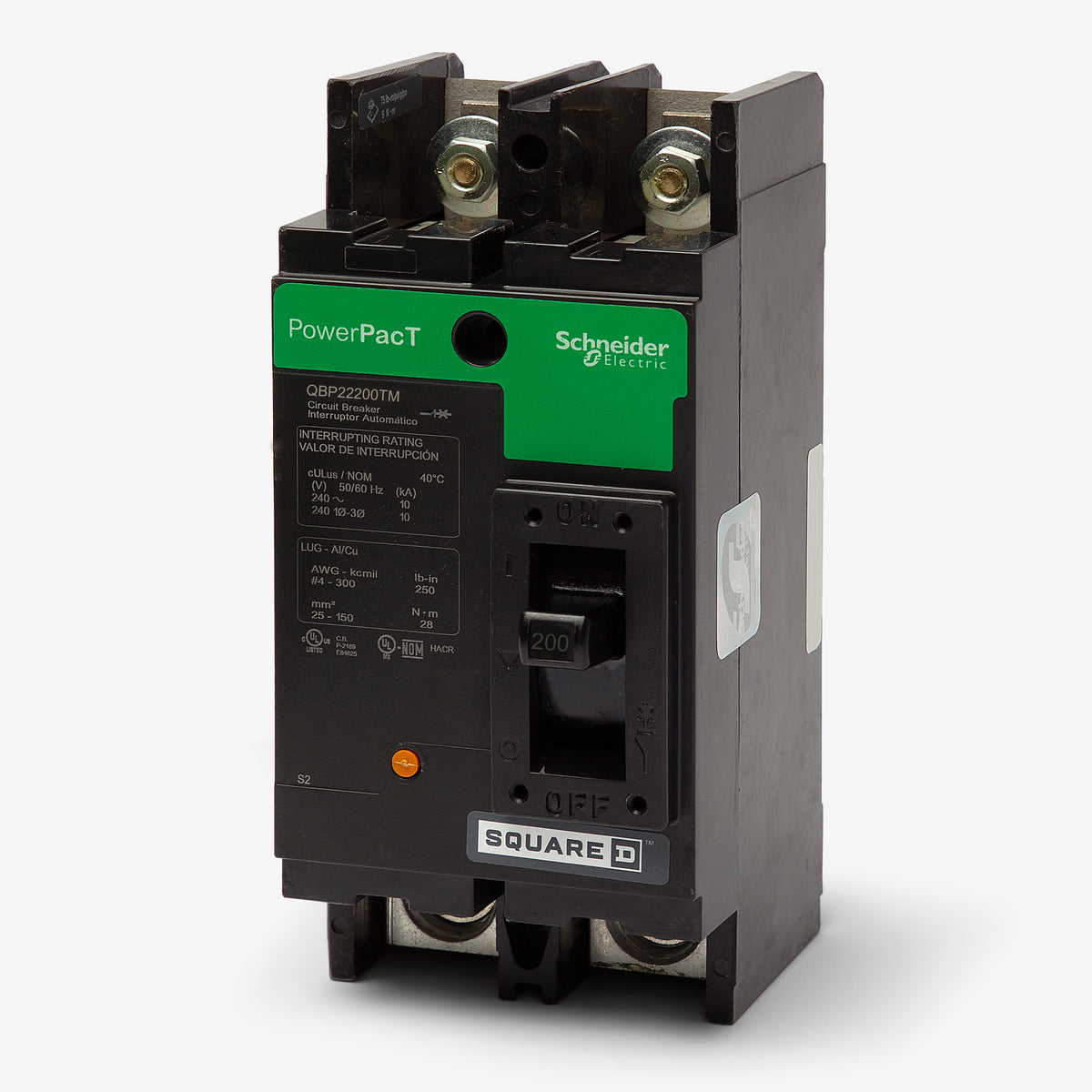

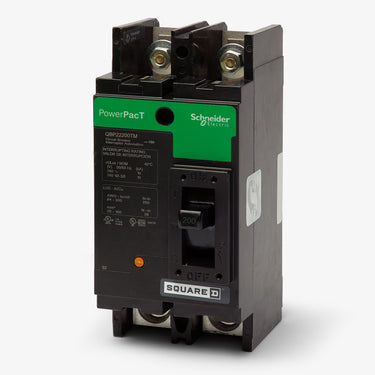

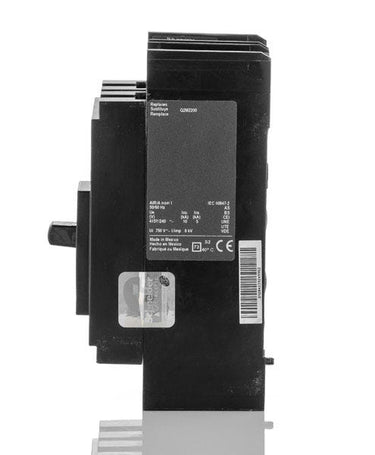

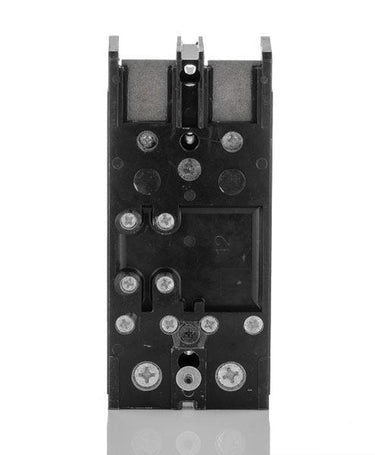

Square D QBP22200TM Molded Case Circuit Breaker
- 200A
- 2 Pole
- Unit Mount
Square D
QBP22200TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP22200TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBP22200TM - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBP22200TM - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | QBP |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, 80% Rated |
Sold out
Quantity
Square D QBP22200TM - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QBP |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, 80% Rated |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Delivering 200A of continuous current capacity, this PowerPacT Q-Frame breaker features long-time and instantaneous (LI) protection. It is engineered to protect commercial systems with a reliable 10kAIC rating at 240VAC. The unit-mount design ensures proper fitment within Square D EZ Meter-Pak metering equipment. It acts as a substitute for legacy Q22200 and QDP22200TM breakers, simplifying maintenance. A built-in Visi-Trip indicator allows for immediate visual confirmation of a tripped state.Specifications
| Brand | Square D |
|---|---|
| Series | QBP |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, 80% Rated |
Product FAQs
6 answersWhat equipment is the QBP22200TM designed to fit?
It is engineered for use in Square D EZ Meter-Pak metering equipment and Meter-Pak metering centers, typically serving as a tenant main disconnect.
Can this Q-Frame breaker be installed in a standard Square D QO load center?
No. The QBP frame is a molded case circuit breaker specifically built for commercial metering applications. It is too large and physically incompatible with residential QO or Homeline bus bars.
How does the QBP22200TM connect to the metering equipment?
This is a unit mount circuit breaker. It secures to the panel using terminal nuts on the line side and features standard mechanical lugs for terminating the load side wiring.
Are the trip settings field adjustable on this model?
No. The thermal magnetic trip unit features fixed long-time and instantaneous protection functions. There are no dials or switches for field calibration.
What conductor types are approved for the load lugs?
The factory installed load lugs are dual rated for both copper and aluminum conductors, accepting wire sizes between 4 AWG and 300 kcmil.
Is this breaker suitable for use in 480V or 277V commercial services?
No. The maximum operational voltage rating is 240VAC. Applying it to a 277V or 480V system exceeds its design limits and violates its UL safety listing.
