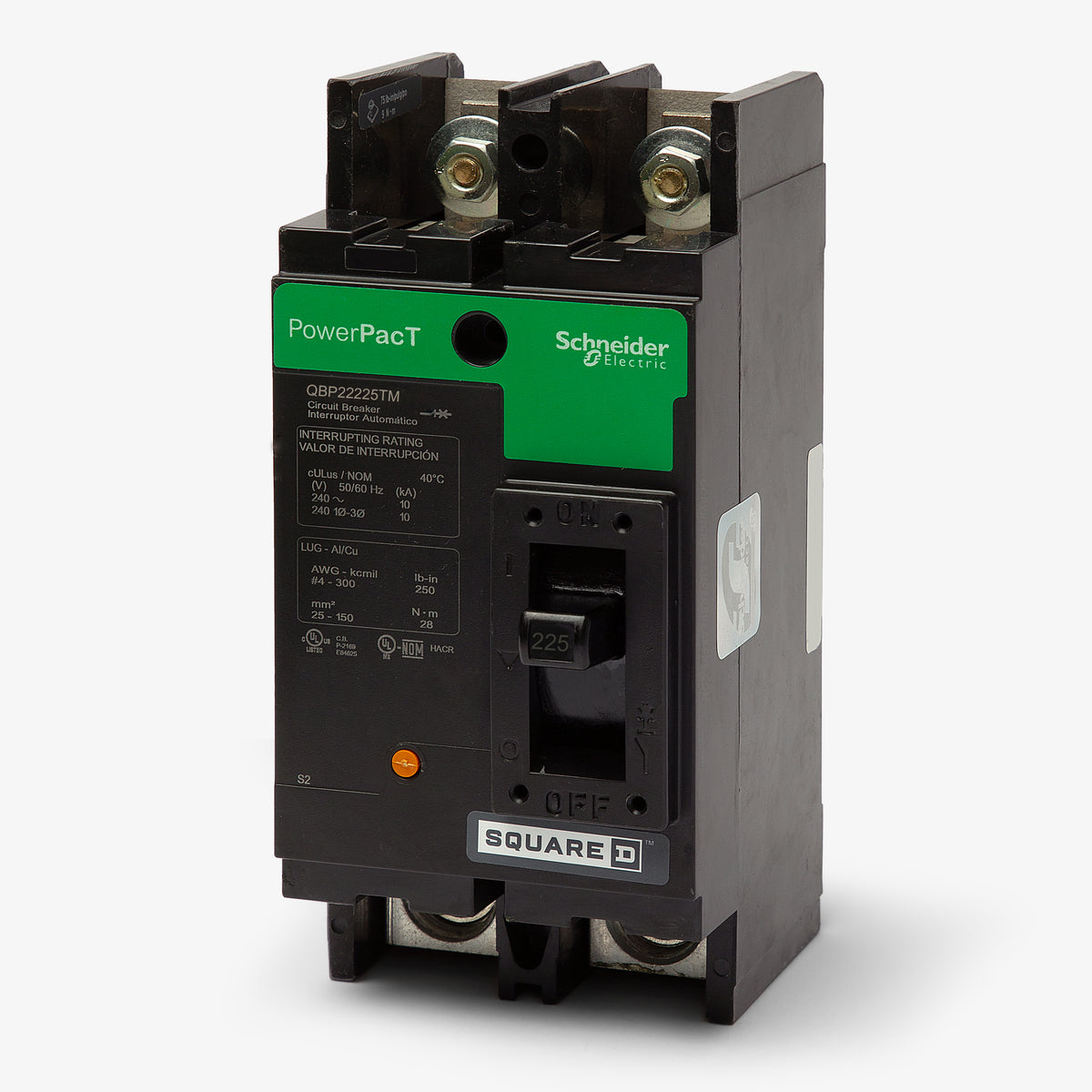

Square D QBP22225TM Molded Case Circuit Breaker
- 225A
- 2 Pole
- Unit Mount
Square D
QBP22225TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP22225TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBP22225TM - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBP22225TM - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBP22225TM |
| Series | QBP |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Meter Centers, EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Mounting Nuts/Washers |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Sold out
Quantity
Square D QBP22225TM - 225A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBP22225TM |
| Series | QBP |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Meter Centers, EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Mounting Nuts/Washers |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Engineered for robust protection, the Square D QBP22225TM is a 2-pole, 225A molded case circuit breaker. As part of the PowerPacT Q-Frame series, it provides fixed thermal-magnetic trip functions for 240V systems. This unit mount device fits into Square D Meter-Pak and EZ Meter-Pak metering centers. It accommodates 4 AWG to 300 kcmil wiring and provides an exact replacement for older Q22225 breakers. With a 10 kAIC rating, it features a Visi-Trip indicator to easily spot tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP22225TM |
| Series | QBP |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Meter Centers, EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Mounting Nuts/Washers |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Product FAQs
7 answersWhat metering equipment is the Square D QBP22225TM compatible with?
This 2-pole Q-Frame breaker is specifically designed for installation in Square D Meter-Pak and EZ Meter-Pak metering centers.
Can the QBP22225TM replace older Square D circuit breakers?
Yes, this PowerPacT Q-Frame breaker serves as an exact drop-in replacement for older Q22225 circuit breakers in existing metering centers.
What type of terminal connections are provided on this breaker?
This unit mount breaker features studs with terminal nuts and washers on the line side. The load side uses standard mechanical lugs that accommodate 4 AWG to 300 kcmil aluminum or copper conductors.
Is the QBP22225TM rated for 100 percent continuous current?
No, this thermal magnetic circuit breaker carries a standard continuous current rating of 80 percent.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the QBP22225TM features fixed thermal and fixed magnetic trip settings for its long-time and instantaneous protection functions.
How can I manually test the trip mechanism on this breaker?
All PowerPacT Q-Frame circuit breakers include an integral push-to-trip button on the front cover, allowing you to manually trip the device for maintenance and testing.
Does this breaker provide a visual indication when tripped?
Yes, it features a Visi-Trip indicator that provides clear visual confirmation when the circuit breaker has tripped, which helps speed up troubleshooting in multi-metering centers.
