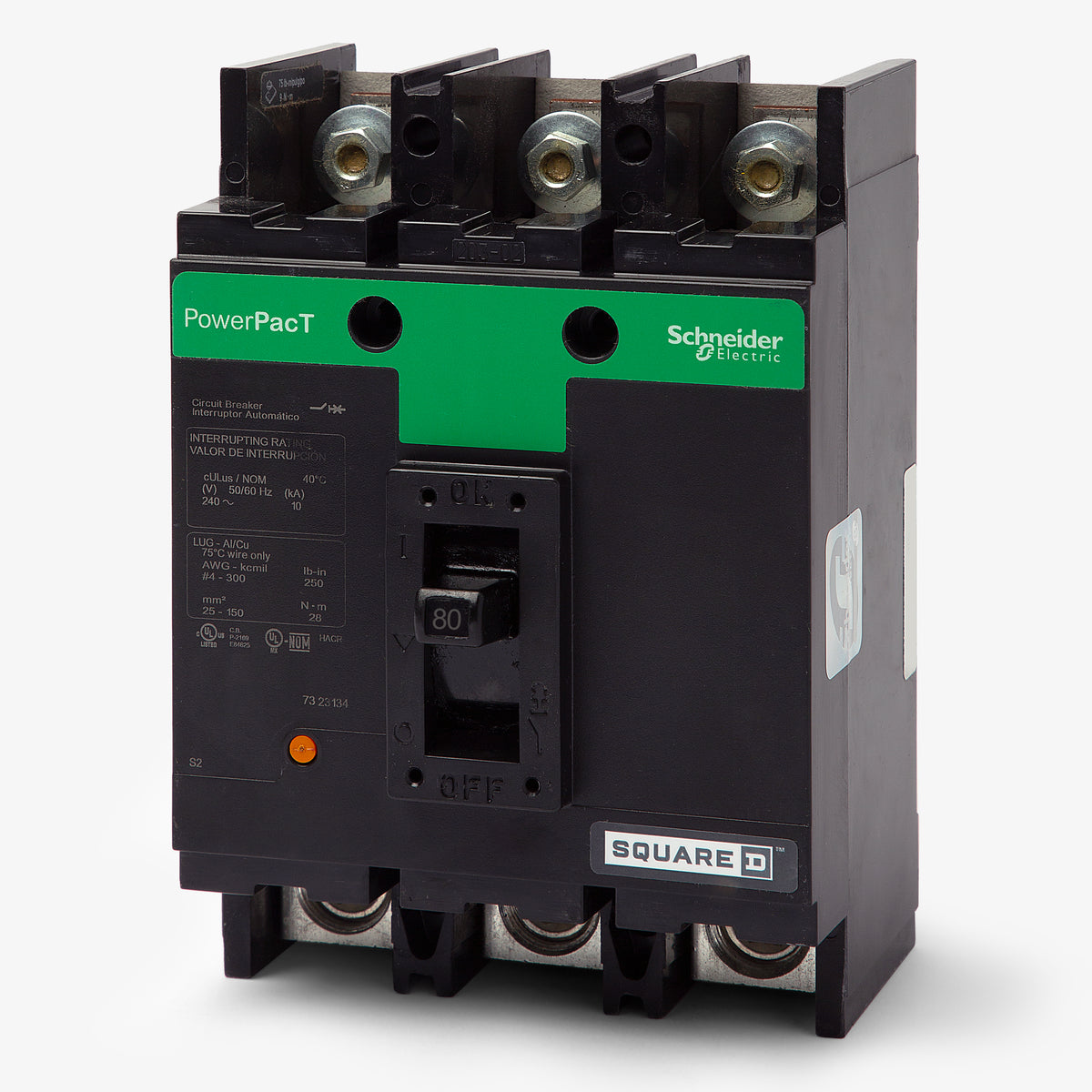

Square D QBP32080TM Molded Case Circuit Breaker
- 80A
- 3 Pole
- Unit Mount
Square D
QBP32080TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP32080TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBP32080TM - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Engineered for robust performance, the QBP32080TM is an 80A, 3-pole molded case circuit breaker in the Schneider Electric PowerPacT Q-Frame series. It is designed to handle commercial and residential electrical distribution tasks at 240VAC. Featuring a unit-mount configuration, this breaker integrates smoothly into Square D EZ Meter-Pak centers. It also functions as a direct substitute for the legacy Q23080, making retrofits straightforward. The device offers a 10kAIC interrupt rating.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP32080TM |
| Series | QBP |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Product FAQs
6 answersWhat metering equipment is compatible with the QBP32080TM?
This unit-mount breaker is designed to integrate directly into Square D Meter-Pak and EZ Meter-Pak multi-metering centers.
Which legacy Square D breaker does the QBP32080TM replace?
This PowerPacT Q-Frame breaker functions as a direct substitute for the obsolete Q23080 model, allowing for straightforward retrofits in existing panels.
What is the terminal configuration for the QBP32080TM?

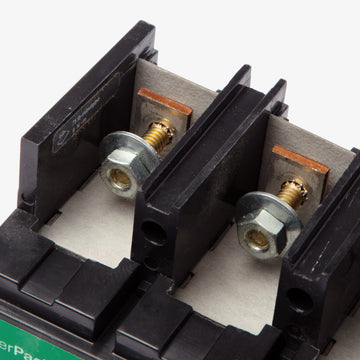

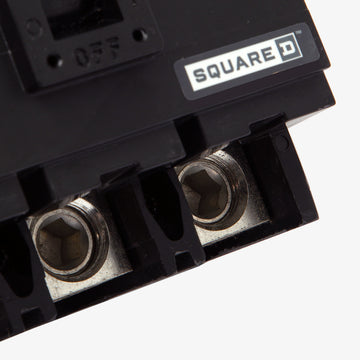

This bolt-on breaker features studs with mounting nuts and washers on the line side, and comes complete with standard lugs on the load side.
Is this breaker rated for 100 percent continuous load?
No, the QBP32080TM carries a standard 80 percent continuous current rating.
Are the thermal-magnetic trip settings adjustable on this breaker?
No, the QBP32080TM features fixed long-time and instantaneous trip functions that cannot be adjusted in the field.
How can I manually test the trip mechanism on this breaker?
The breaker includes an integral push-to-trip button located on the front cover, allowing electricians to manually trip the device for safety checks and maintenance.
