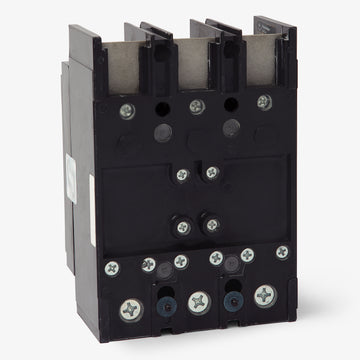

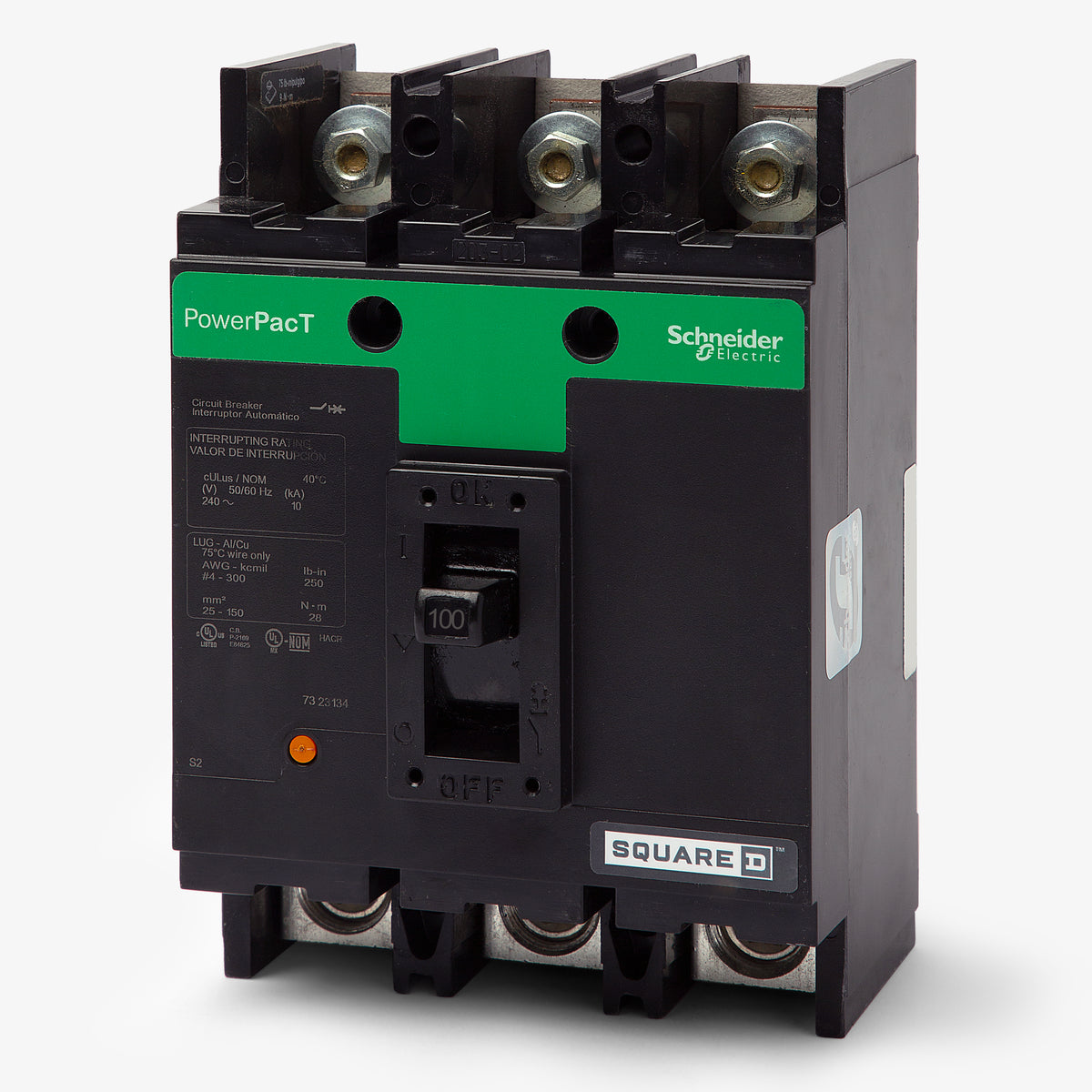

Square D QBP32100TM Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Square D
QBP32100TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP32100TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBP32100TM - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBP32100TM - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBP32100TM |
| Series | QBP |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Sold out
Quantity
Square D QBP32100TM - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBP32100TM |
| Series | QBP |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Similar Items
90A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Square D QBP32100TM is a 3-pole, 100A PowerPacT Q-frame MCCB. It provides reliable thermal-magnetic protection for demanding electrical systems. Designed for unit-mount installations, this breaker fits seamlessly into Square D EZ Meter-Pak metering centers. It also serves as a replacement for legacy Q23100 models. Rated at 10kAIC at 240V, it features fixed LI trip functions and a Visi-Trip indicator for easy troubleshooting.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP32100TM |
| Series | QBP |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Product FAQs
6 answersWhat metering equipment is the QBP32100TM designed to fit?
This unit-mount PowerPacT Q-Frame breaker is specifically engineered for installation in Square D Meter-Pak and EZ Meter-Pak metering centers.
Can the QBP32100TM replace older Square D breakers?
Yes, this breaker serves as a direct replacement for legacy Square D Q23100 molded case circuit breakers.

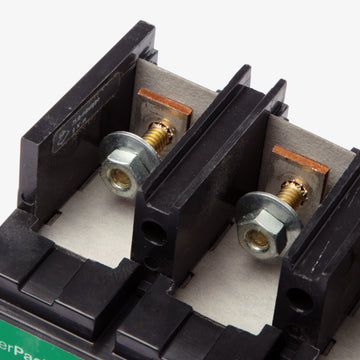

What type of terminal connections are used on this breaker?
It features a unit-mount design with stud and tapped pad terminals. This configuration typically utilizes terminal nuts on the line side and lugs on the load side to secure the conductors.

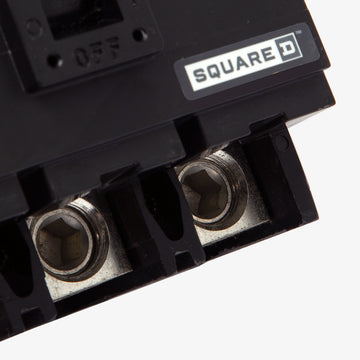

What wire sizes are accepted by the terminals on this breaker?
The load side lugs are designed to accept either aluminum or copper wire ranging from 4 AWG to 300 kcmil.
How does the trip mechanism operate on this Q-Frame breaker?
It utilizes a fixed thermal-magnetic trip unit that provides long-time protection against overloads and instantaneous protection against short circuits. It also includes a Visi-Trip indicator for quick visual confirmation when the breaker has tripped.
Can this 240V breaker be used on a 208Y/120V system?
Yes, it is fully rated for use on 208Y/120VAC systems, providing a 10kA interrupting capacity at that voltage level.
