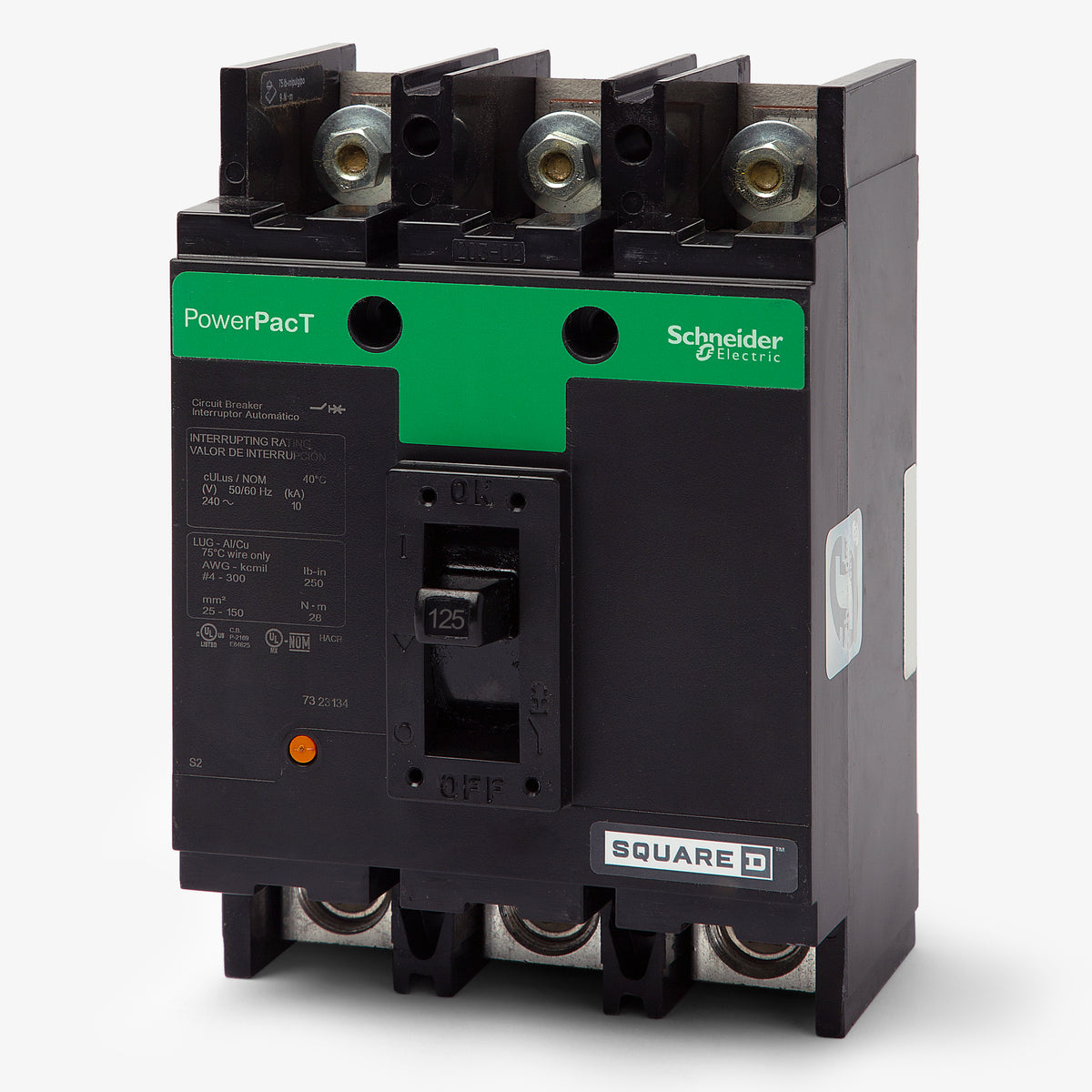

Square D QBP32125TM Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Square D
QBP32125TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP32125TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBP32125TM - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and residential metering applications, the Square D QBP32125TM provides 125A of thermal-magnetic overcurrent protection. This 3-pole, 240V unit mount molded case circuit breaker features long-time and instantaneous (LI) trip functions. Designed to fit into Square D Meter-Pak and EZ Meter-Pak metering equipment, it serves as an exact replacement for legacy Q23125 breakers.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP32125TM |
| Series | QBP |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, 80% Rated |
Product FAQs
6 answersWhat legacy circuit breaker does the QBP32125TM replace?
The QBP32125TM serves as an exact drop-in replacement for the discontinued Square D Q23125 circuit breaker.
Are the trip settings on the QBP32125TM adjustable?
No, this thermal-magnetic breaker features fixed thermal and fixed magnetic trip settings for both long-time and instantaneous overcurrent protection.
Is the QBP32125TM rated for use with heating and cooling equipment?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration motor loads.
Is the QBP32125TM a 100% rated circuit breaker?
No, this is a standard 80% rated circuit breaker, meaning the continuous load should not exceed 100 amps (80% of its 125A rating) for periods longer than three hours.
Does the QBP32125TM include a visual trip indicator?
Yes, it is equipped with a visual trip indicator to help quickly identify a tripped breaker during panel inspections and troubleshooting.
Does the QBP32125TM have a trip-free mechanism?
Yes, it features a trip-free mechanism that ensures the breaker will trip under overload or short-circuit conditions even if the operating handle is physically held in the ON position.
