Square D QBP32150TM Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Square D
QBP32150TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP32150TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

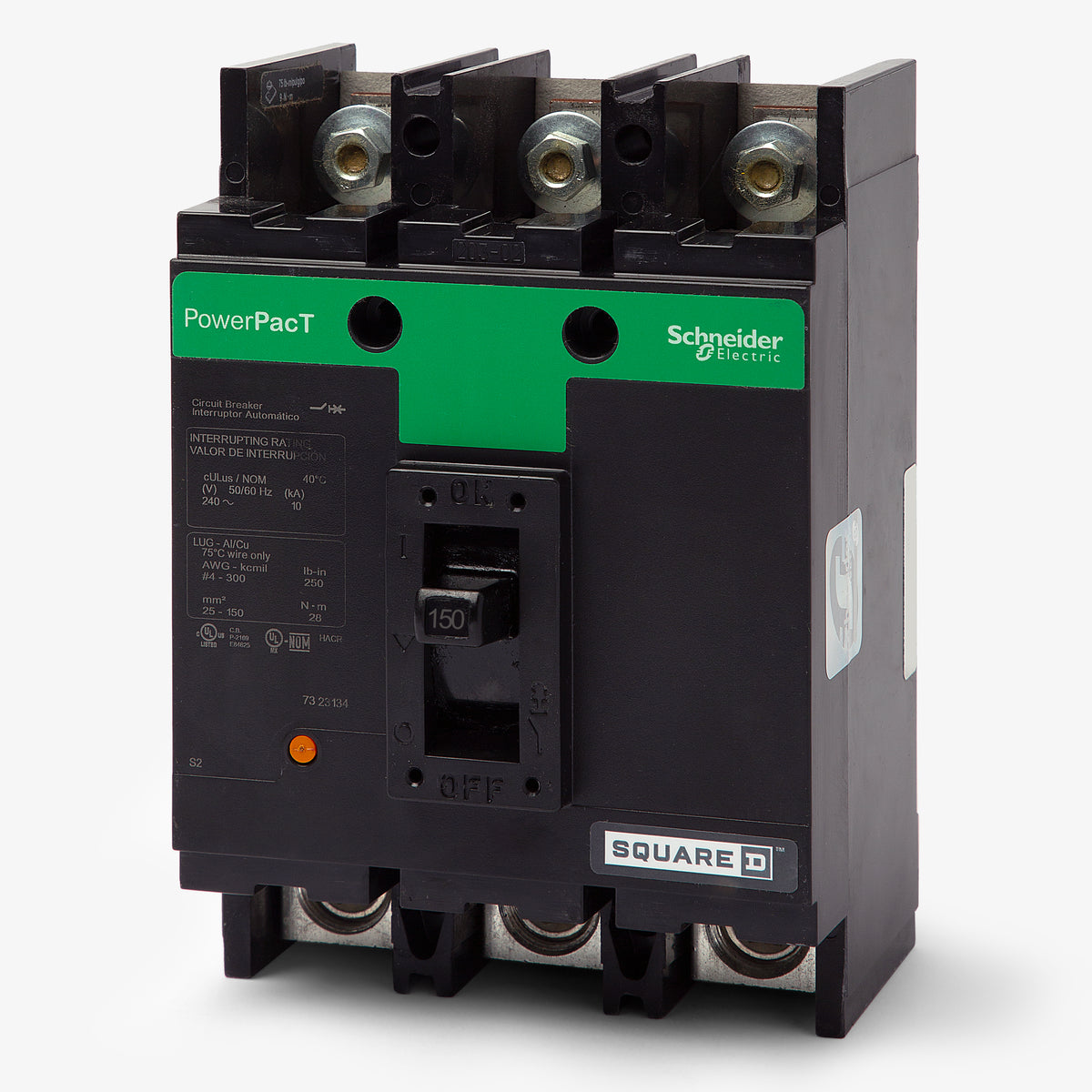

Square D QBP32150TM - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Built for robust electrical distribution, the Square D QBP32150TM is a 3-pole, 150A molded case circuit breaker from the PowerPacT Q-Frame family. It delivers reliable thermal-magnetic protection with a 10kAIC rating at 240V. This unit mount breaker is specifically designed to integrate with Square D Meter-Pak and EZ Meter-Pak metering centers, making it ideal for commercial and residential applications. It also serves as an exact replacement for the discontinued Q23150 breaker model.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP32150TM |
| Series | QBP |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Product FAQs
5 answersWhat metering equipment is compatible with the QBP32150TM?
This PowerPacT Q-Frame breaker is specifically designed for integration within Square D Meter-Pak and EZ Meter-Pak metering centers.
Can the QBP32150TM replace older Square D breakers?
Yes, this unit serves as a direct replacement for the discontinued Q23150 circuit breaker model, simplifying maintenance in existing panels.

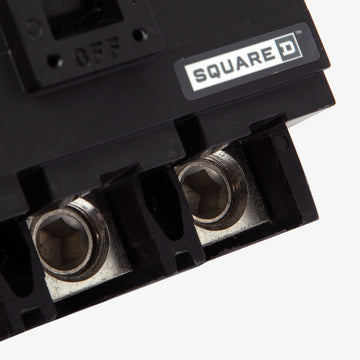

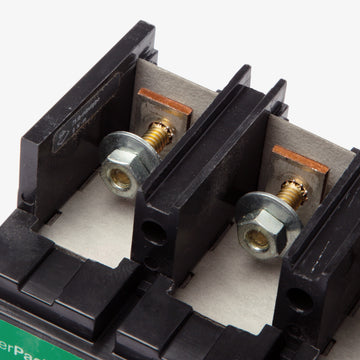

What type of connections are used on the QBP32150TM?
This breaker features stud and tapped pad connections designed for bolt-on, unit-mount installations. The terminals accept aluminum or copper wiring ranging from 4 AWG to 300 kcmil.
How does the thermal-magnetic trip unit operate on this breaker?
The fixed thermal-magnetic trip unit provides long-time protection for sustained overloads and instantaneous protection for sudden short circuits, ensuring comprehensive defense for metering applications.
Does the QBP32150TM include a manual trip feature?
Yes, all PowerPacT Q-Frame circuit breakers feature an integral push-to-trip button on the cover, allowing electricians to manually trip the breaker for testing and maintenance.
