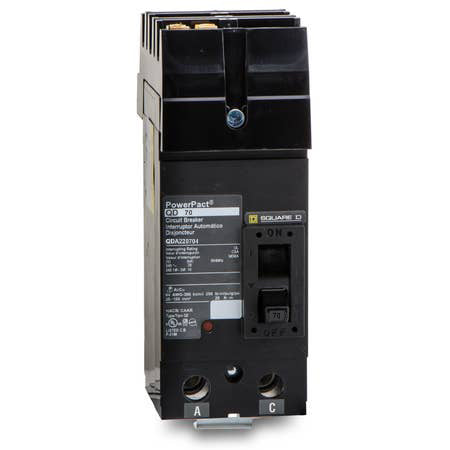

Square D QDA220704 Molded Case Circuit Breaker
- 70A
- 2 Pole
- I-Line
Square D
QDA220704
Molded Case Circuit Breaker
Brand
Square D
SKU
QDA220704
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDA220704 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDA220704 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDA220704 |
| Series | QDA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Sold out
Quantity
Square D QDA220704 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDA220704 |
| Series | QDA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Similar Items
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the QDA220704 is a 2-pole, 70-amp molded case circuit breaker with a BC phase connection. It delivers reliable thermal-magnetic trip functions (LI) and carries a 25kAIC rating at 240VAC. Designed for quick installation, it fits seamlessly into Square D I-Line panelboards and switchboards. Additionally, this PowerPacT Q-Frame model acts as an exact replacement for the legacy Q220704, maintaining system continuity and safety.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDA220704 |
| Series | QDA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Product FAQs
5 answersWhat panelboards are compatible with the QDA220704 circuit breaker?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection and will not fit standard QO, Homeline, or NQ panels.
Can the QDA220704 be used to replace older legacy breakers?
Yes, this PowerPacT Q-Frame model acts as an exact replacement for the legacy Square D Q220704 circuit breaker, maintaining the same system continuity and I-Line mounting footprint.
What does the D in the QDA220704 catalog number signify?
The D indicates the interrupting capacity of the breaker. For Square D PowerPacT Q-Frame breakers, the D designates a 25kAIC rating at 240VAC.
How are the line and load connections configured on the QDA220704?
This unit features I-Line plug-on jaw terminations on the line side and mechanical box lugs on the load side. The load-side lugs accept 4 AWG to 300 kcmil aluminum or copper conductors.
What type of trip protection does the QDA220704 provide?
It features a non-interchangeable thermal-magnetic trip unit that provides fixed Long-Time and Instantaneous (LI) overcurrent protection for commercial and industrial power distribution.
