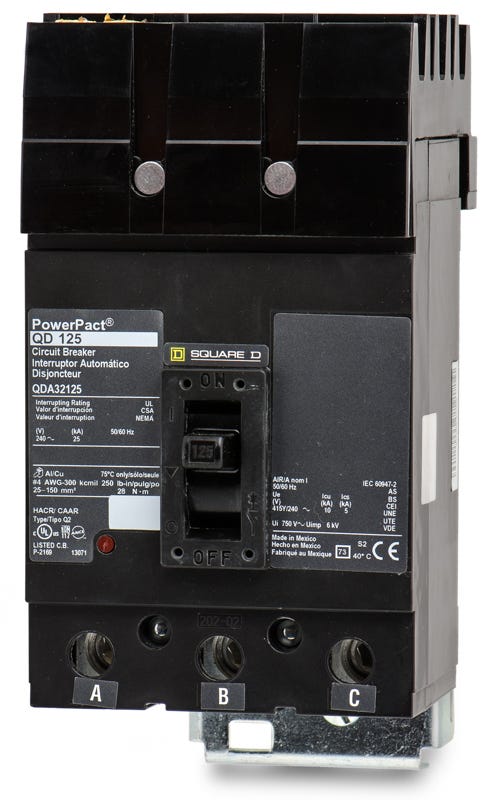

Square D QDA32125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- I-Line
Square D
QDA32125
Molded Case Circuit Breaker
Brand
Square D
SKU
QDA32125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDA32125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDA32125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDA32125 |
| Series | QDA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | ABC Phase Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D QDA32125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDA32125-R |
| Series | QDA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | ABC Phase Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Square D QDA32125 is a 125A, 3-pole molded case circuit breaker. As part of the PowerPact Q-Frame series, it delivers dependable thermal-magnetic protection for commercial and industrial facilities. Designed for quick integration, the breaker installs into Square D I-Line panelboards and switchboards. It is also an exact drop-in substitute for discontinued Q23125 models. This 240VAC breaker offers a 25kA interrupt rating and fixed LI trip functions.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDA32125 |
| Series | QDA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | ABC Phase Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the catalog number QDA32125 indicate?
The part number breaks down as Q for the PowerPacT Q-frame, D for a 25kA interrupting rating at 240VAC, A for the I-Line shroud connection on the ON end, 3 for three poles, 2 for a 240VAC maximum rating, and 125 for the 125A continuous current rating.
What is the required lug torque for the QDA32125?
The factory installed lugs require a tightening torque of 247.8 lbf-in (28 N-m) for the supported 4 AWG to 300 kcmil aluminum or copper wire.
What is the recommended wire stripping length for the power terminals?
The manufacturer recommends a power wire stripping length of 0.87 inches (22 mm) prior to seating your conductors in the lugs.
Which older Square D circuit breakers does this Q-frame model replace?
The Square D PowerPacT Q-frame circuit breakers serve as a direct replacement for legacy Square D Q2 series devices.
Is the QDA32125 breaker rated for HVAC equipment?
Yes, this circuit breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications.
What is the phase connection type for this breaker?
The QDA32125 features an ABC phase connection, allowing it to engage all three phases on standard Square D I-Line bussing.
