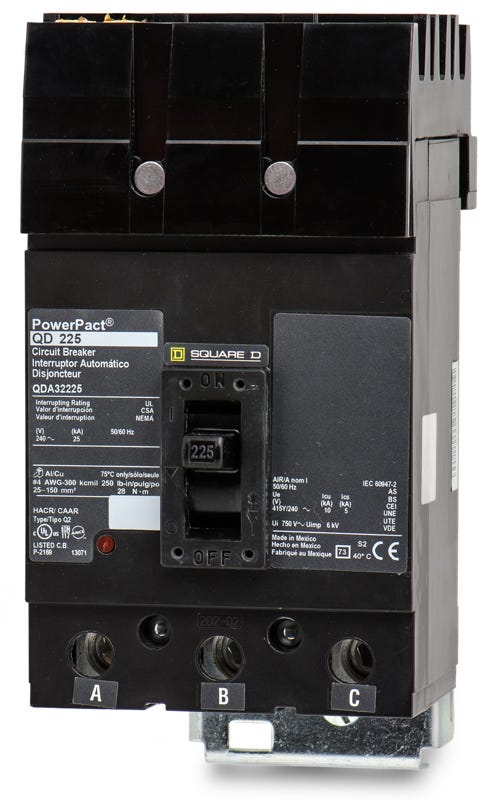

Square D QDA32225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- I-Line
Square D
QDA32225
Molded Case Circuit Breaker
Brand
Square D
SKU
QDA32225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDA32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDA32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDA32225 |
| Series | QDA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, 80% Rated, Phase Connection ABC |
Quantity
Square D QDA32225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDA32225-R |
| Series | QDA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, 80% Rated, Phase Connection ABC |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Mounting into Square D I-Line panelboards, the QDA32225 is a 3-pole, 225A molded case circuit breaker from the PowerPacT Q-Frame family. It provides long-time and instantaneous (LI) thermal-magnetic trip functions to defend electrical systems against overloads and short circuits. This breaker features a plug-on I-Line mounting style and load-side lugs for secure connectivity. It serves as a direct replacement for legacy Q23225 breakers. Rated at 25kAIC at 240VAC, it is fully HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDA32225 |
| Series | QDA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, 80% Rated, Phase Connection ABC |
Product FAQs
8 answersWhich panelboards are compatible with the Square D QDA32225?
This breaker is exclusively designed for Square D I-Line panelboards and switchboards. It features integral mounting jaws that plug directly onto the panel bus stack.
Can I install this I-Line breaker in a Square D NQ or NF panelboard?
No, the QDA32225 utilizes I-Line plug-on jaws and is not physically compatible with the bus structure of NQ or NF panelboards.
What wire sizes do the load lugs on the QDA32225 accept?
The factory-installed mechanical lugs accept aluminum or copper conductors ranging from 4 AWG to 300 kcmil.
Can the QDA32225 be used in 480V or 600V distribution systems?
No. This PowerPacT Q-Frame breaker is strictly rated for a maximum system voltage of 240VAC. Applying it to 480V or 600V systems violates its UL listing and poses a severe safety hazard.
What does the LI designation mean for this breaker's trip unit?
The LI designation indicates that the thermal-magnetic trip unit provides fixed Long-Time (overload) and fixed Instantaneous (short-circuit) protection. Neither trip threshold is field-adjustable.
What is the difference between the QDA, QBA, QGA, and QJA frame prefixes?
These prefixes denote the short-circuit interrupting capacity (AIC) of the Square D PowerPacT Q-Frame breakers at 240VAC. The QDA provides 25kAIC, while the QBA provides 10kA, QGA provides 65kA, and QJA provides 100kA.
Does the QDA32225 provide ground-fault or arc-fault protection?
No, this is a standard thermal-magnetic circuit breaker designed exclusively for overcurrent and short-circuit protection. It does not include GFCI or AFCI functionality.
Does this Q-Frame breaker accept interchangeable rating plugs?
No, the QDA32225 features a fixed 225-amp thermal-magnetic trip unit. It does not support interchangeable rating plugs or field-installable trip block upgrades.
